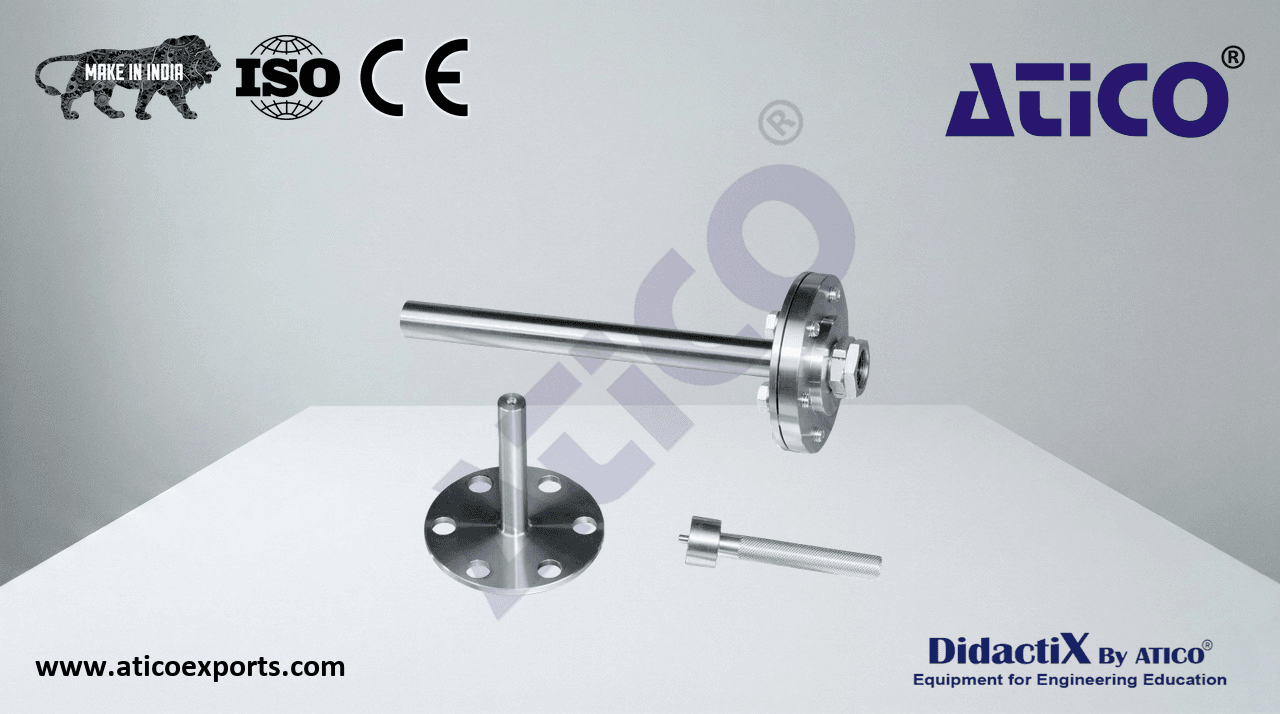

Crack detection in rotating shaft kit Deluxe

Cracks due to material fatigue are very dangerous for rotating machines. Early detection of any crack is therefore essential before permanent rupture and often fatal consequences can occur. The crack influences the vibration behaviour of the shaft by changing its rigidity. Using suitable analysis software, this change can be registered and inspection of the machine organised in good time.

• investigation of the vibration behaviour of a cracked shaft
• experiment carried out in conjunction with the training system and measurement and evaluation tools
• required bending torque with belt drive
• crack adapter in flange form
• simulation of the crack by opening bolt joints
• 4 different sized cracks can be simulated
• short shaft to simulate a protruding shaft end
• long shaft to simulate an elastic rotor
• stackable storage system to house the components
