Crank Mechanism Deluxe

The Crank Mechanism is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

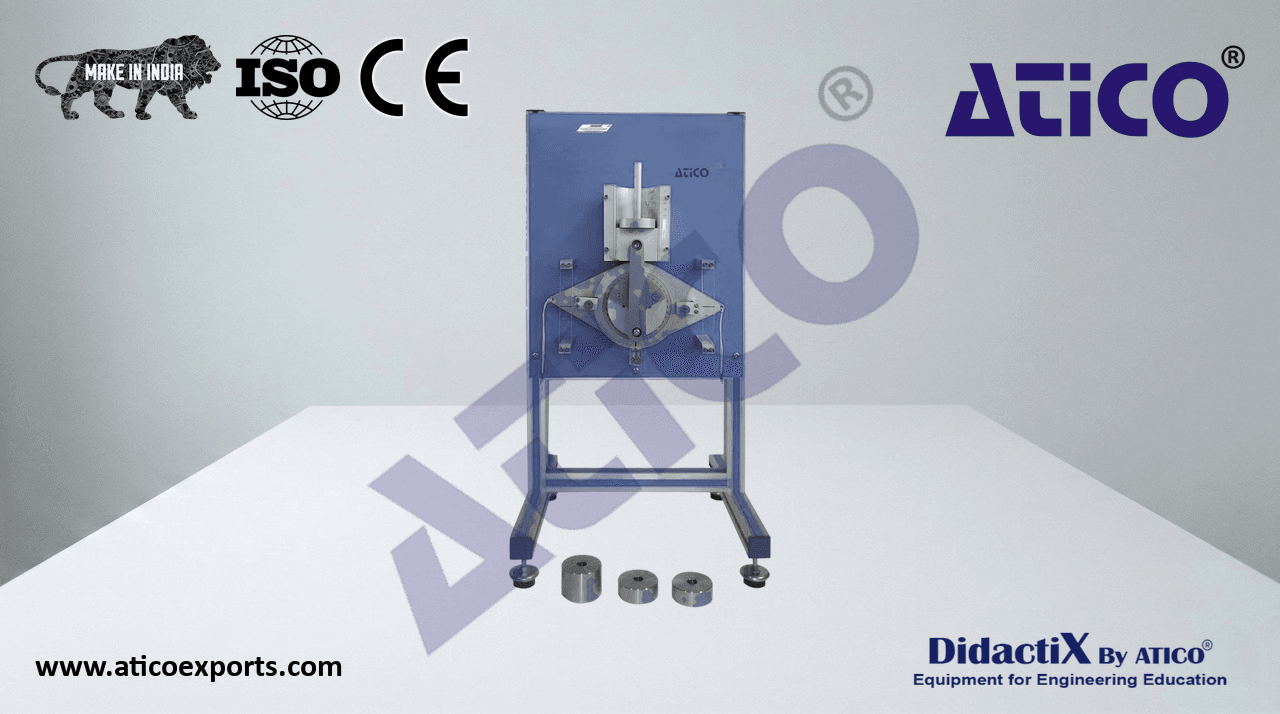

ATENG 12071 — Crank Mechanism

Bench-top unit with adjustable legs.

Anodized aluminum structure and panels in painted steel.

• The “ATENG 12071” unit mainly consists of:
• Piston and guide with graduated scale: piston stroke: 70 mm.
  Connecting rod made of stainless steel.
  Shaft of the system and counterweight made of stainless steel.
  Measuring disc.
  Beam balance arm.
• Set of weights to add to the piston:
  Mass of 1 Kg 1 unit.
  Mass of 0.5 Kg 2 units.
