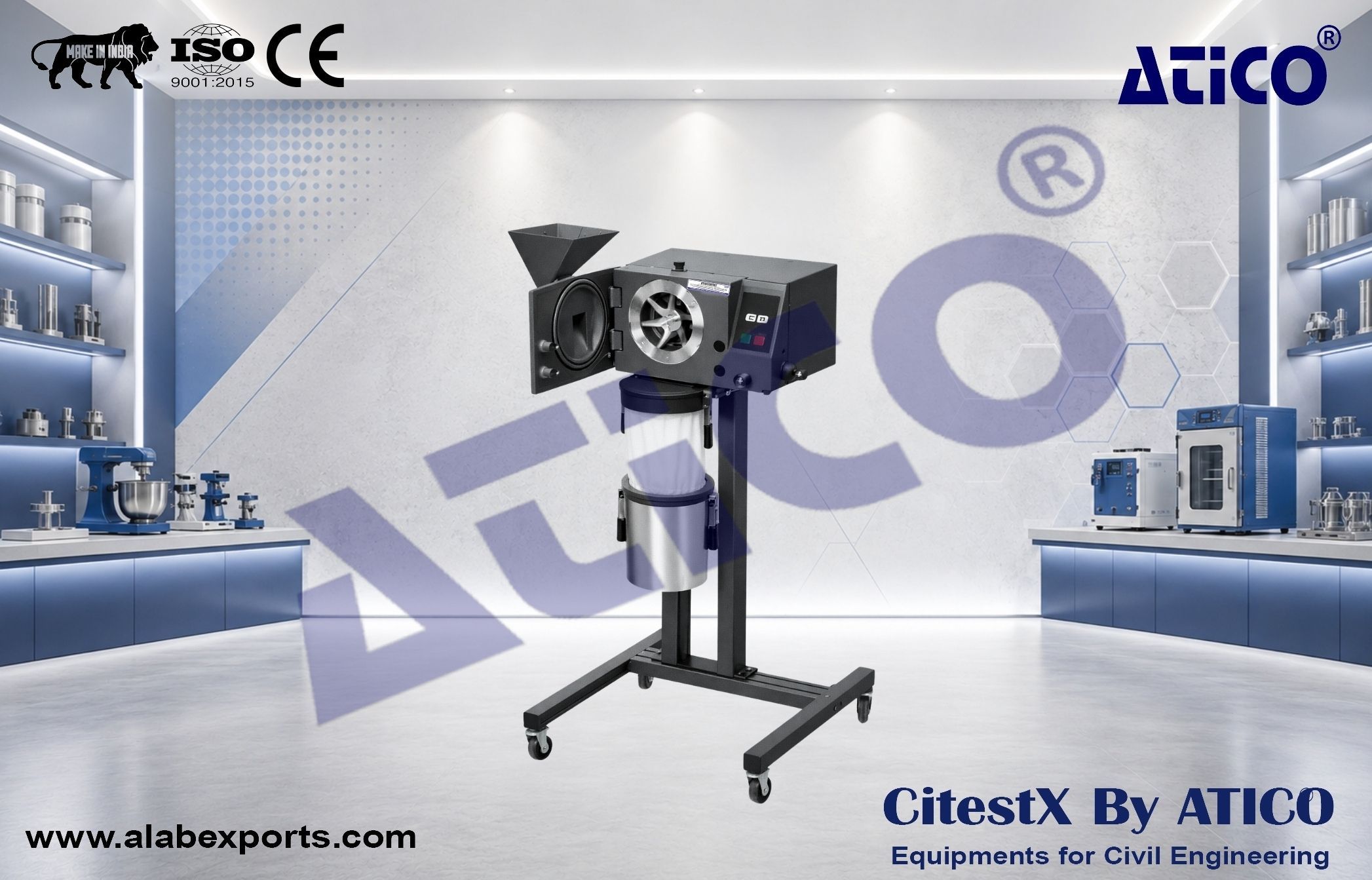

Cross Beater Mill

The Cross Beater Mill is suitable for coarse and fine size reduction, either in batches or continuously. It can process medium-hard and brittle materials and is easy to operate. For increased sample discharge and for processing heat-sensitive samples, an optionally available cyclone unit unit can be used instead of the gravity outlet.

Product Advantages

• Wide range of accessories including various collection and feeding systems, rotors and sieves
• Defined final fineness due to bottom sieves with aperture sizes from 0.12 – 10 mm
• Adjustable speed for different applications
• Gravity outlet with 5 L or 30 L collecting vessel for batchwise collection of larger sample quantities
• Optionally available cyclone unit with 0.25 – 0.5 – 1 – 2 – 5 or 30 liters collecting vessel
• Easy cleaning thanks to exchangeable push-fit grinding insert, rotor and sieve
• Electric engine brake
• Central locking device

Functional Principle

The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert.
As soon as the material is smaller than the aperture size of the bottom sieve used, it passes through the sieve and enters the collecting receptacle through the gravity outlet. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material.
The airborne fine fraction is separated off by a downstream filter system. The optionally available cyclone separator enhances cooling of the sample material and the cutting tools and improves the discharge of the sample from the grinding chamber.

Applications :

• size reduction

Field of application :

• agriculture, chemistry / plastics, construction materials, environment / recycling, geology / metallurgy, glass / ceramics

Feed material :

• medium-hard, brittle

Size reduction principle :

• impact

Material feed size :

• < 25 mm

Final fineness :

• < 100 °m

Speed at 50 Hz (60 Hz) :

• 2000 - 4000 min-1 (in steps of 200 min-1)

Rotor peripheral speed :

• 15.5 m/s .. 31 m/s

Types of rotors :

• stainless steel / cast iron

Material of grinding tools :

• hardened steel, stainless steel, cast iron, steel 1.1740 (for heavy-metal free grinding)

Sieve sizes :

• trapezoid holes 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm
• round holes 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm

Dust extraction unit :

• optional cyclone

Collector capacity :

• 5 l / optional: 30 l

Drive :

• 3-phase motor with frequency converter

Drive power :

• 1.1 kW

Electrical supply data :

• 200-240 V, 50/60 Hz

Power connection :

• 1-phase

Protection code :

• IP 41

Power consumption :

• 1.5 kW

W x H x D closed :

• 600 x 1200 x 700 mm (with base frame)

Net weight :

• ~ 60 kg (with base frame)

Remark weight (without hopper etc.) :

• ~ 50 kg (without base frame)

Standards :

• CE
