Crystallization Unit

The Crystallization Unit, is a unit for the study of the cooling crystallization process. has developed this unit to study the crystallization reaction of those constituents whose solubility changes with the temperature.

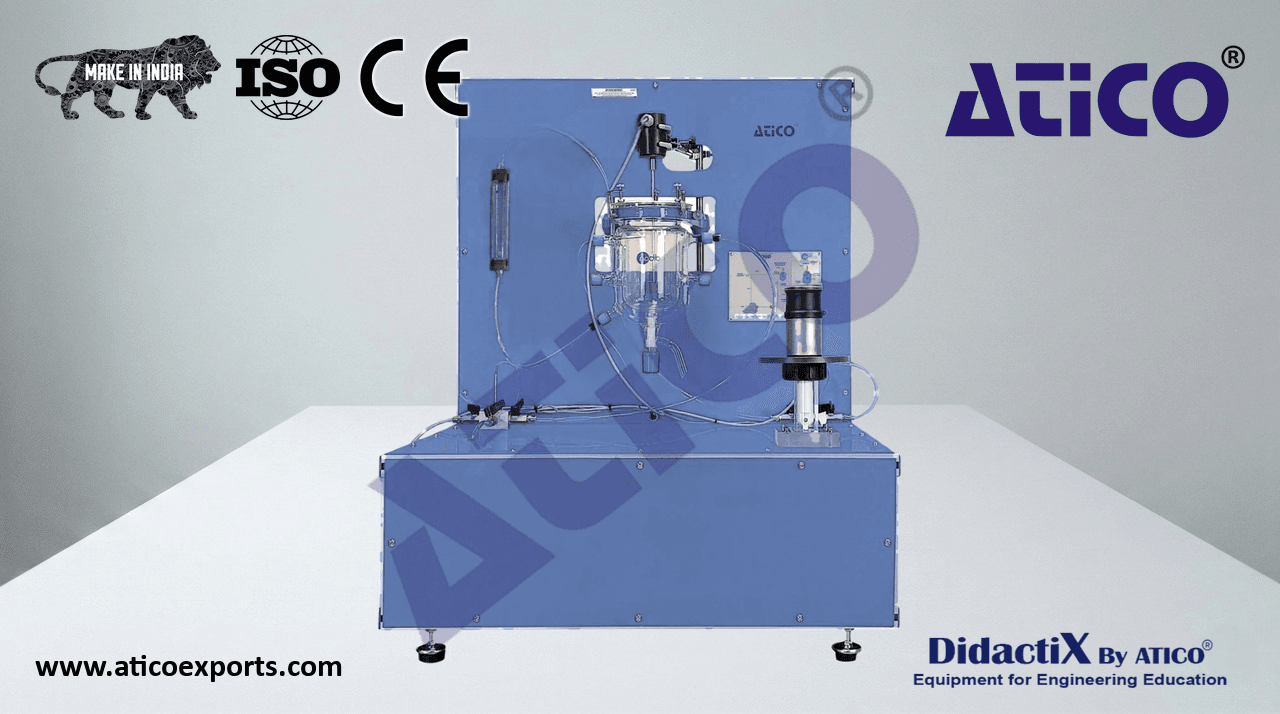

ATENG 10859 — Crystallization Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

Crystallizer composed of jacketed reactor made in glass (1 litre of capacity), which includes temperature

sensors and stirrer. Batch operation.

Double blade stirrer.

The crystallization reactor is thermally controlled by means of heated water circulating in the reactor jacket.

Thermostatic bath of 600 W, with feed water impulsion pump.

• Water flowmeter, rotameter type, rage:0 – 2 l/min.
  Four two-way valves to allow the water circulation, according to the process.
  Three temperature sensors, “J” type, located at key points of the system.
• Pressure regulation valve to protect the system, range: 0.5 – 6 bar.
• Conductivity meter to measure the solution conductivity, range: to 2000 mS. ATENG 10859 detail
• Set of sieves, composed of:
• Three sieves of different light size: 0.5 mm/1 mm/2 mm.
• Vessel to collect the crystals, capacity: 2 l.
  Protection devices for the electric circuits.
• Electronic console:
  Metallic box.
  Temperature sensors connections.
  Selector for temperature sensors.
  Digital display for surpervising the temperature and the conductivity.
  Pump switch.
  Stirred switch.
  Thermostatic bath controller.
  Magnetothermal protection switch.
  Protection fuses.
  Cables and accessories, for normal operation.
