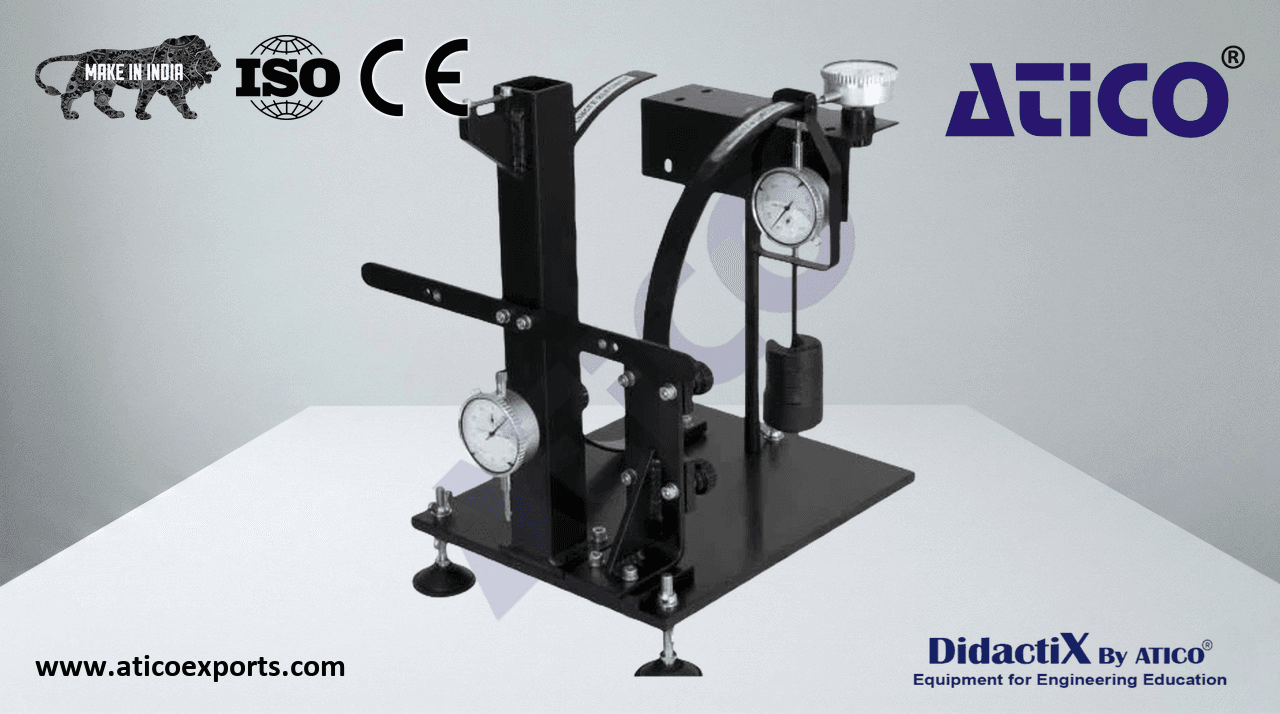

CURVED BAR APPARATUS

This apparatus provides an introduction to the use of strain energy techniques (such as Castigliano's first theorem) for finding deflections of curved shapes. A bench-mounted base supports a variety of curved bars in the form of a ring, semi-circle, or quadrant/davit. Loads are applied by specially designed weight hangers to cause the specimen to bend. Learn about CURVED BAR APPARATUS price for optimal educational outcomes.. Horizontal and vertical deflections are measured by dial gauges rigidly attached to the base and surrounding pillars. Bars can be readily changed and the dial gauge positions relocated to suit the new configuration. Learn about CURVED BAR APPARATUS exporters for optimal educational outcomes.. All specimens, weight hangers, and a set of calibrated weights are supplied.

• Base plate with levelling feet
• Three test specimens:
  • Solid ring: Ø300mm outside diameter
  • Semi-circle: Ø150mm radius to centreline of material
  • Quadrant: Ø150mm radius to centreline of material
• Specimen material: 25mm wide × 1.5mm thick (nominal); steel
• Analogue dial gauges × 3: 0–10mm travel, 0.01mm resolution
