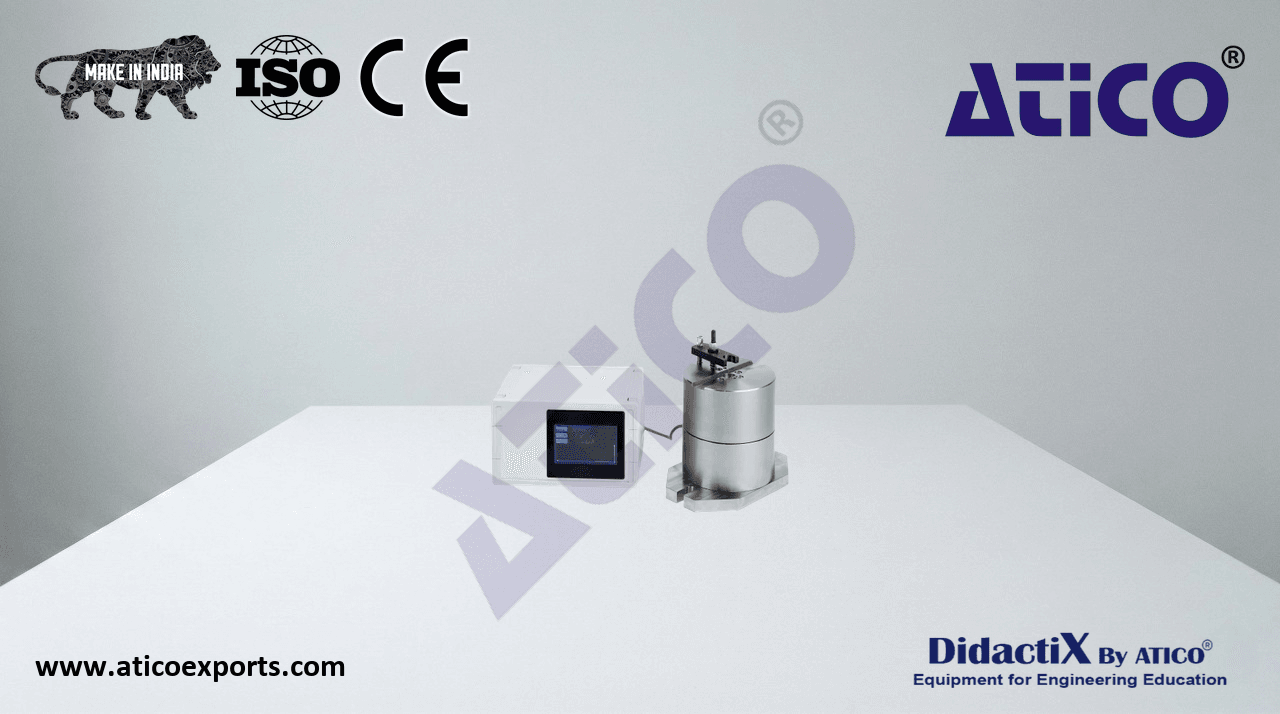

Cutting forces during drilling

Investigation of cutting forces during drilling is fundamental to the teaching of cutting techniques. The setup comprises a transducer, which also holds the specimen being machined, and an amplifier unit with digital displays.

• drilling measurement device for measuring of feed force and torque
• strain gauge type measuring transducer
• strain gauge amplifier with digital displays for axial force and torque
• transducer: splash-proof stainless steel housing
• specimen of steel included in the scope of delivery
• other materials such as brass, aluminium, copper and plastic can be investigated (not included in the scope of delivery)
• software for data acquisition via USB under Windows 11
