Cutting forces during turning

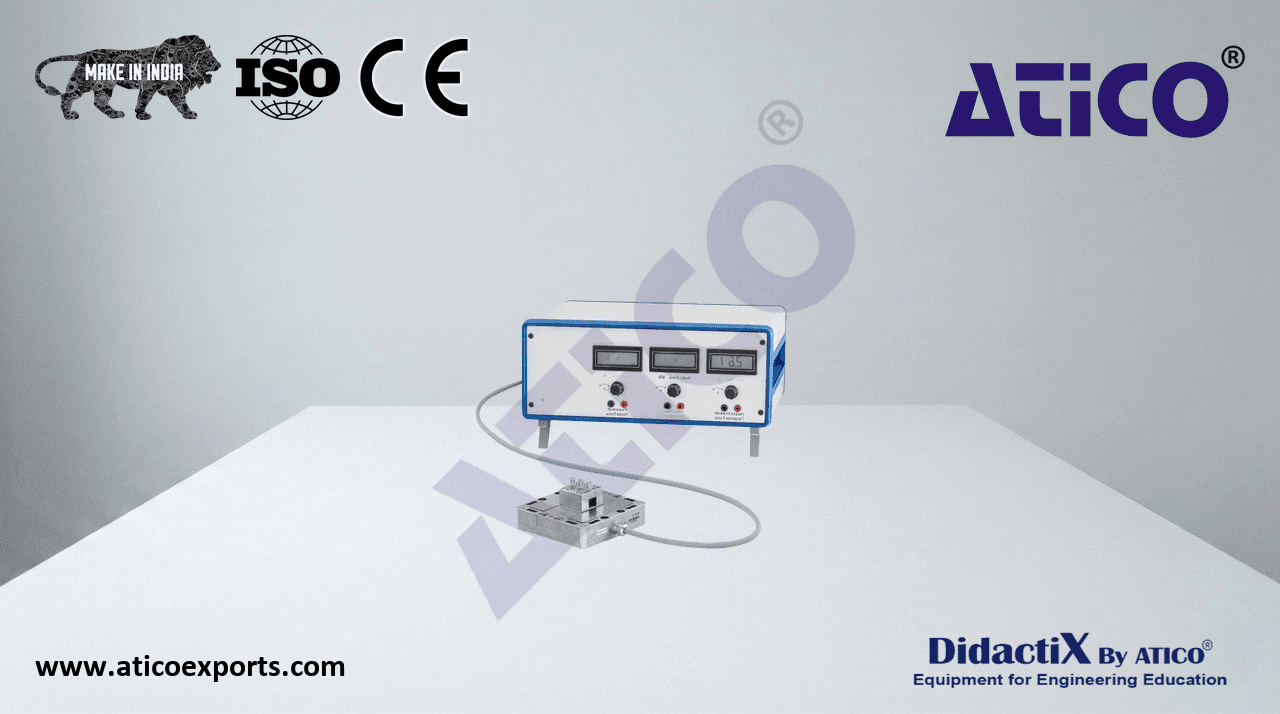

Investigation of cutting forces during turning is fundamental to the teaching of cutting techniques. The setup comprises a transducer, which also holds the lathe tool, and an amplifier unit with digital displays. The forces that act on the lathe tool during machining are measured in three directions: cutting force, feed force and passive force. Learn about Digital Cutting forces during turning for optimal educational outcomes.. The three-component force measurement device uses a strain gauge system. The amplifier unit supplies the strain gauge bridges and displays the measured values on three digital displays. Learn about Cutting forces during turning exporters for optimal educational outcomes..

• three-component force measuring device for cutting experiments during turning
• lathe tool holder implemented as transducer with strain gauge system
• strain gauge amplifier unit with 3 digital displays for forces
• transducer with splash-proof housing
• software for data acquisition via USB under Windows 11
