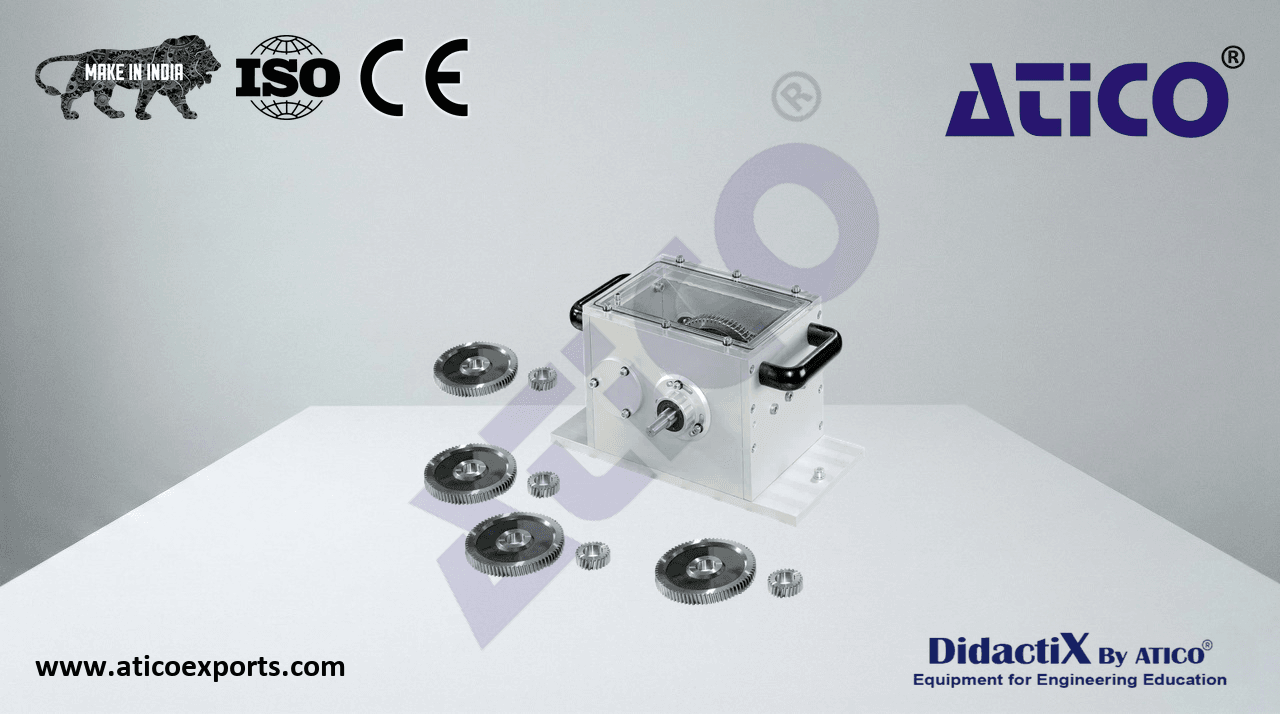

Damage to gears kit

The accessory setup is used to simulate typical damage to gears and study its effects on vibration behaviour. Various gear sets with tooth damage are supplied for this purpose. Undamaged gear sets are provided for comparative purposes. Learn about Damage to gears kit manufacturers for optimal educational outcomes.. The difference between spur toothed and helical gearing can also be demonstrated. The influence of the centre distance and backlash can be studied using adjustable bearing plates. Learn about Damage to gears kit specifications for optimal educational outcomes.. The type of lubrication has a significant influence on the vibration signal, so grease or gear oil can be used for lubrication.

• investigation of the vibration behaviour of gears
• experiment carried out in conjunction with the training system and measurement and evaluation tools
• loading of experimental setup with brake and load unit
• two-shaft gear unit
• two damaged and two undamaged gear sets
• spur toothed and helical gearing
• housing with sensor holes
• transparent housing cover
• gear can be lubricated with grease or oil
• stackable storage system to house the components
