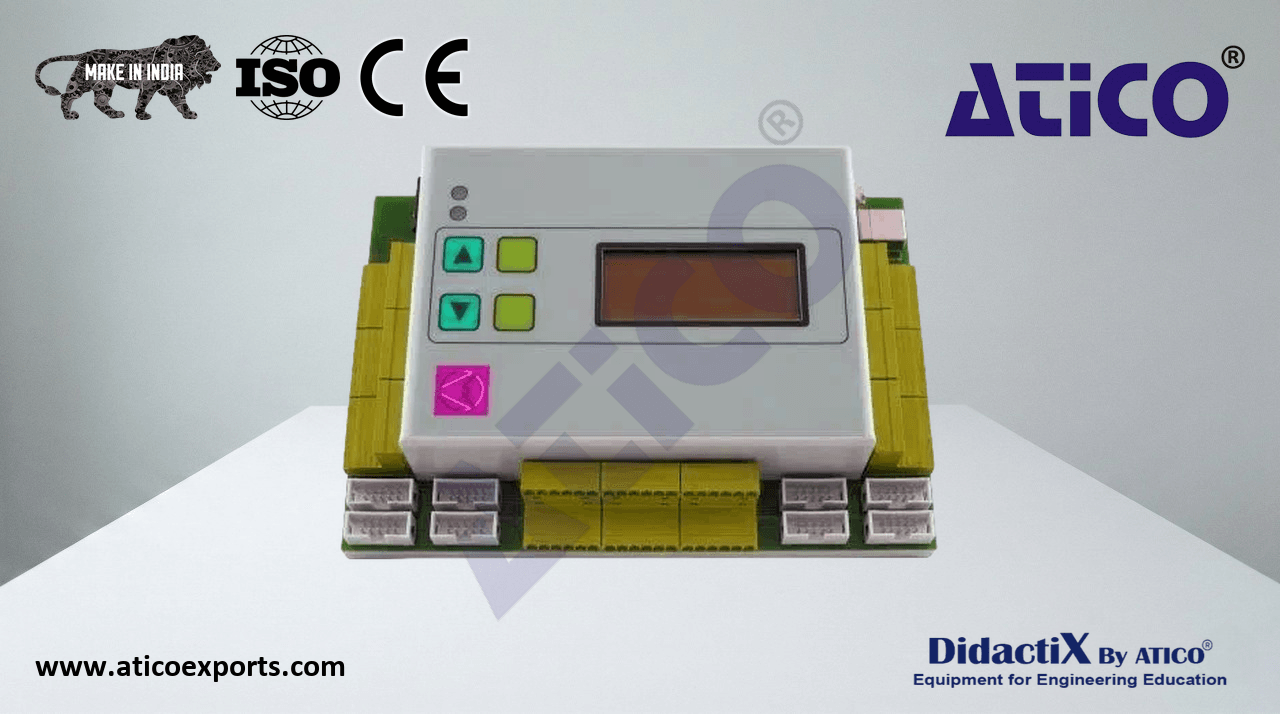

DATA ACQUISITION SYSTEM AND SOFTWARE

A digital interface designed for use with universal test frame experiments fitted with appropriate transducers. Capable of displaying, recording, storing and reviewing parameters of strain, pressure, force and deflection. Operates in two modes: with PC (USB) or standalone (without PC). Learn about DATA ACQUISITION SYSTEM AND SOFTWARE specifications for optimal educational outcomes..

• Display: 4-line LCD
• Channels: 23 total — 16 × strain/force, 6 × deflection, 1 × pressure
• Storage: 100 configurations
• Sample interval: 0.5–100 seconds
• Strain gauge arrangements: ¼, ¼D, ½, ½D, full bridge
• Typical strain gauges: 120 Ω, gauge factor 2–2.15
• Typical load cell: 'S' or 'beam' type; 50–3000 kg; 10 V DC excitation; 415 Ω input impedance
• Typical pressure sensor: 0–700 Bar, 4–20 mA gauge; 8–30 V DC excitation
• Deflection sensor: Digital dial gauge with data output, 0–12.7 mm range; 0.01 or 0.001 mm resolution
• Power supply: UK, EU, US and AUS plug options
