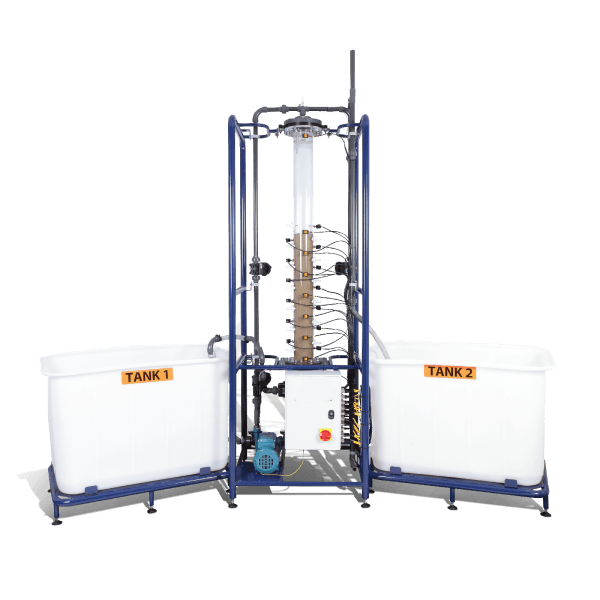

Deep Bed Filter Column Deluxe

Designed to operate identically to full-scale granular filters using the same bed depth and filter media, providing operational data that may be scaled up to full size.

A clear acrylic unit designed to operate identically to full-scale granular filters. The medium is supported on a corrosion-resistant gauze mesh, packed with 1kg of 10mm Ballotini to ensure good wash water distribution. Pilot trials of possible filter designs for water and sewage works can be made reliably at low cost. Learn about Deep Bed Filter Column specifications for optimal educational outcomes.. Learn about Deep Bed Filter Column for educational labs for optimal educational outcomes.

• Filter column (clear acrylic): 100mm ID x 1350mm long
• Typical media depth: 700mm
• Gauze mesh size: 0.35mm
• Sump tank size: 2 x 350L
• Ultrasonic flow meter: 25 L/min
• Universal single wire interface: armBUS
• Pressure sensors: 21 x 1 bar pressure sensors
• Single phase centrifugal pump: 0.55kW
• Slotted sampling tubes for isokinetic suspension sampling
• Pressure sensors mounted 40mm apart at 60° angle
