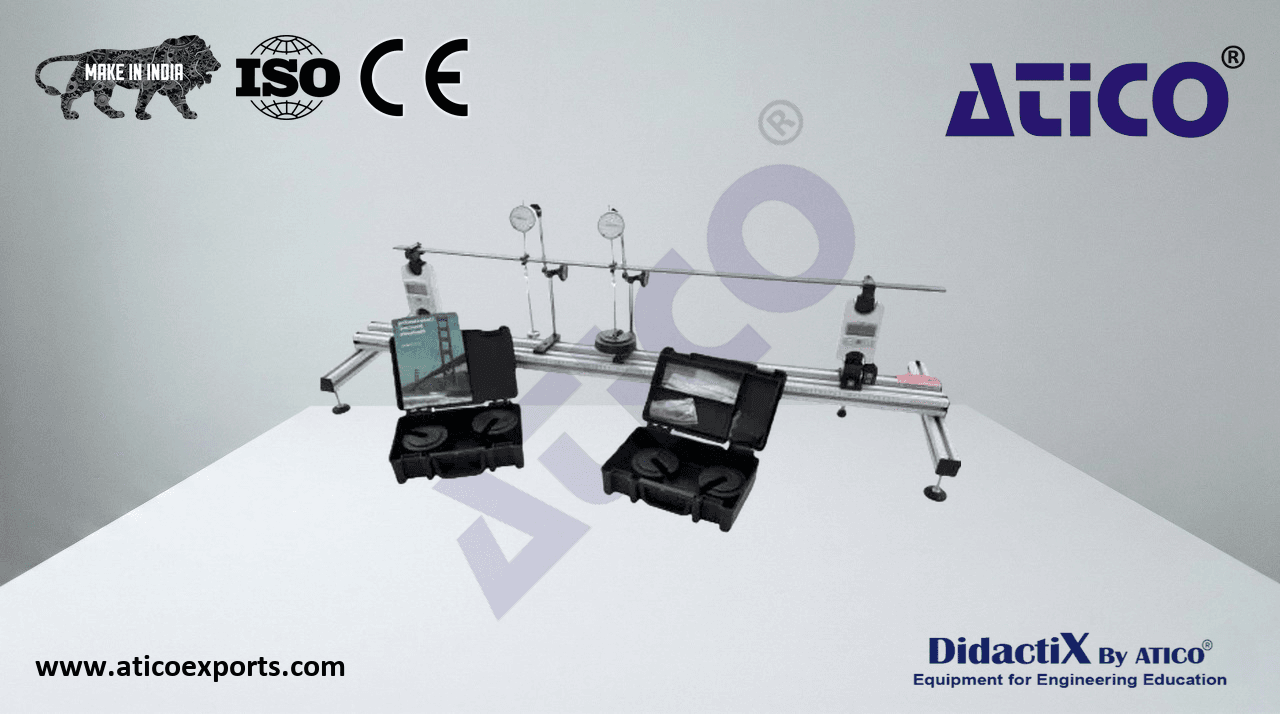

DEFLECTION OF BEAMS APPARATUS

The bench-mounted apparatus has an aluminium profiled base on levelling feet. Two reaction piers can be moved along the length of the base to create differing test spans for the beam. On each pier the vertical load is displayed digitally, and the height of each reaction pier is also digitally adjustable. Learn about DEFLECTION OF BEAMS APPARATUS strength-materials-hsm India for optimal educational outcomes..

• Beam span: up to 1000mm
• Digital reaction piers: ±50N, 0.1N resolution
• Height adjustment of reaction piers: 9mm
• Beam: 1200(L) × 25(W) × 5(H) mm, steel
• Dial gauges × 2: 25mm measuring range, 0.01mm resolution
• Base frame: approximately 1400mm in length
• Load hangers × 2: 0.5N
• Hanger clamps for point loading × 2
• Weight set included
