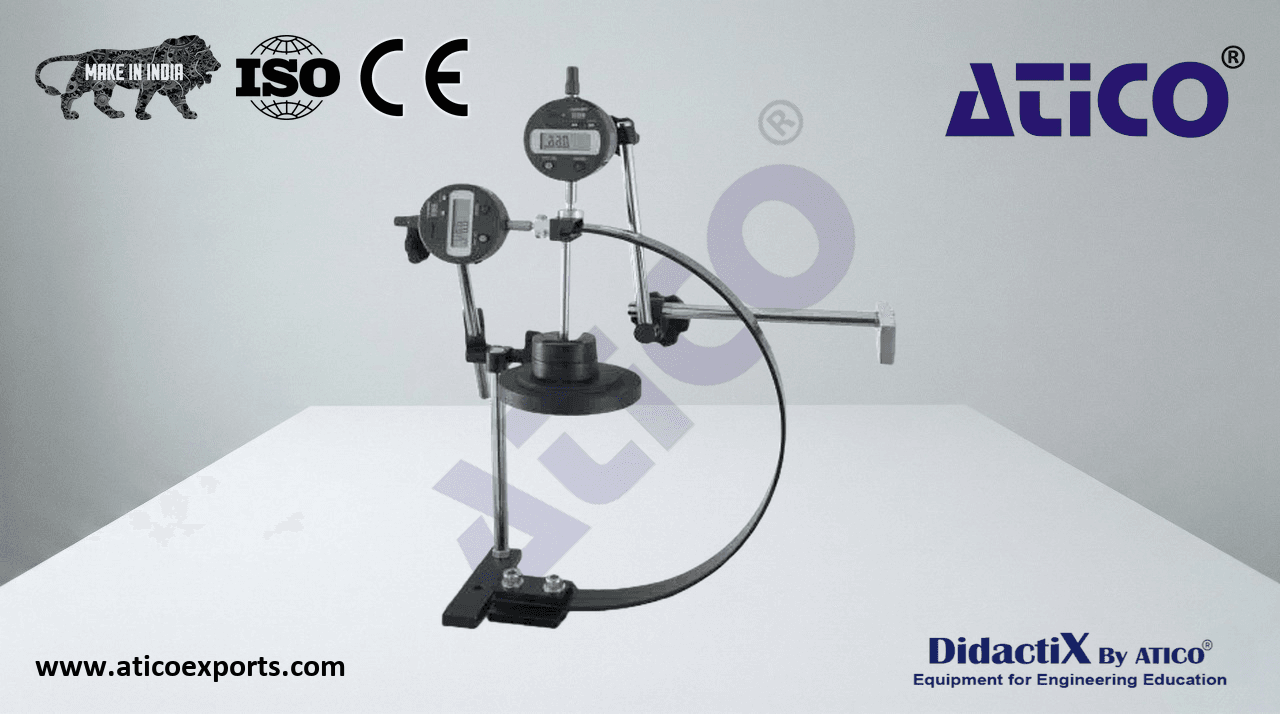

Apparatus for investigating the deflection of curved bar specimens of various geometries under applied loading, comparing experimental results with theoretical predictions.
Technical Specifications
Specimen section: approx. 25 mm × 3 mm, coated steel
Semi-circular: R 148.5 mm
Semi-circular Bracket: 75 (L) and R 73.5 mm
Double Davit: 205 (L) and R 73.5 mm
Quadrant: R 148.5 mm
Single Davit Curved: 205 (L) and R 73.5 mm
Single Davit Straight: 205 (L) and 75 (L) mm
Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
