Deflection of Curved Bars Unit

The Deflection of Curved Bars Unit, to enable the student to determine experimentally the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated load.

ATENG 12173 — Deflection of Curved Bars Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels in painted steel.

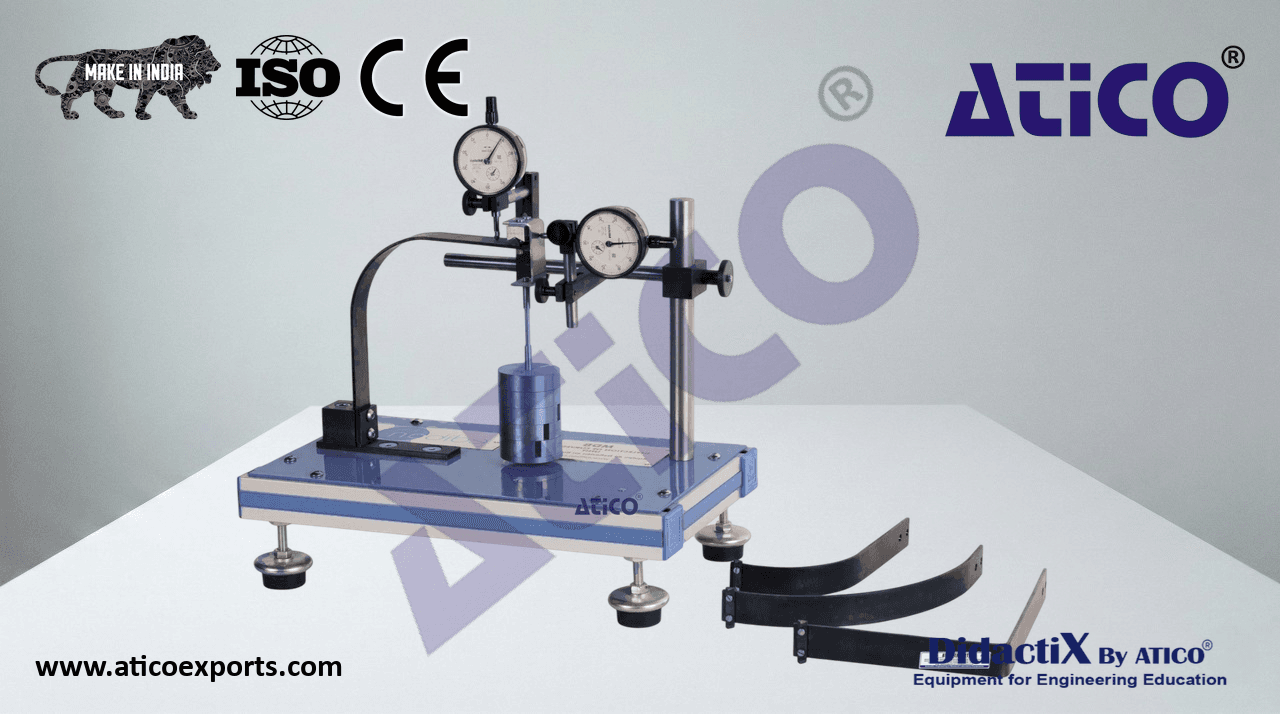

• The “ATENG 12173” unit basically consists of:
  Structure of aluminum and steel on which the dial gauges are mounted and clamps for the test bars.
• Two dial gauges with range from 0 –10 mm, and with 0.01 mm accuracy, to measure the deformation
  of the test bar subjected to a force.
  Four test curved bars, made of steel, with different lengths and curvatures.
  Steel hook to hand the weights and it is hanging in the application point of the force.
