DEFLECTION OF FRAMES

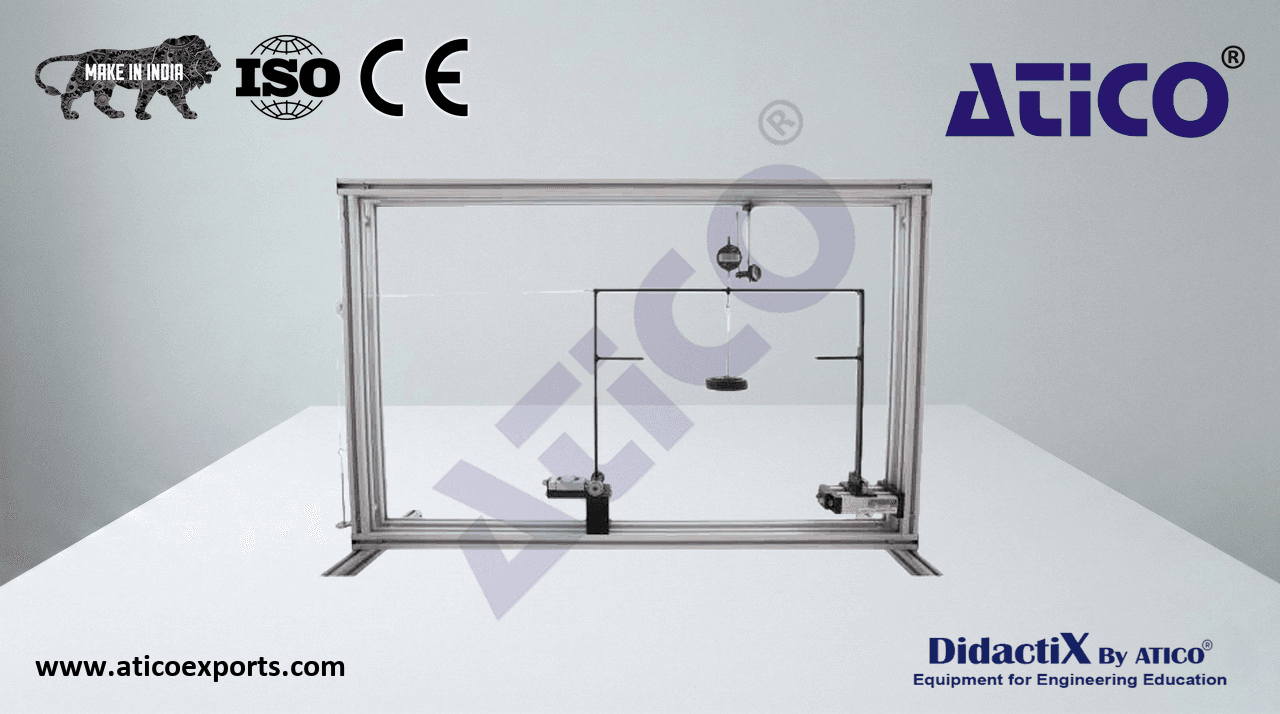

A rectangular portal frame and an 'S' frame made from rectangular solid steel section are provided with either pinned ends or simple supports, enabling each frame to be set up in a universal frame and stand (sold separately) and loaded horizontally and vertically. One end of the portal frame pivots on a knife edge, while the other end is free to move horizontally on a track plate against a load cell. Horizontal reactions are monitored using the integral load cell within the track plate. Learn about DEFLECTION OF FRAMES structures India for optimal educational outcomes.. Frame deflection and sway is measured using the supplied dial gauges. Load hangers, calibrated weights, cords and pulleys are provided to apply vertical and/or horizontal loading. Learn about DEFLECTION OF FRAMES specifications for optimal educational outcomes..

• Rectangular Portal: 600 mm (W) × 450 mm (H)
• 'S' Frame with roller: 600 mm (W) × 600 mm (H)
• Frame material: 25 mm (W) × 8 mm (t) steel section
• Weights set: 7 × 0.5 kg, 2 × 1.0 kg, 1 × 2 kg, 1 × 50 N
• Load Cell: 0–500 N
• Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
