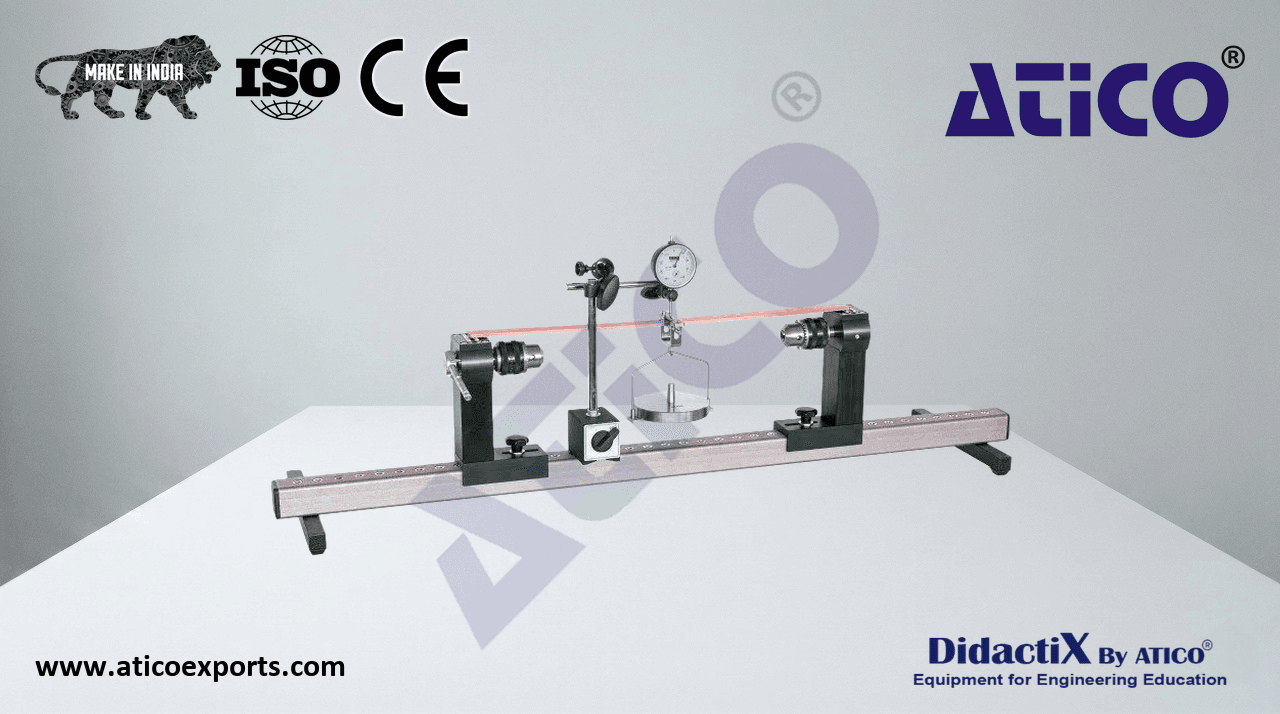

Deformation of bars under bending or torsion

Bending and torsion are typical loads to which components are subjected. The resultant stresses and deformations can lead to failure of the component. A number of different factors play a role in this, including the material, the cross-section of the bar, the clamping length and the method of bearing support. Learn about Deformation of bars under bending or torsion equipment for optimal educational outcomes..

• elastic deformation of bars under bending or torsion
• bending tests with statically determinate and indeterminate systems
• torsion tests with a statically determinate system
• supports in the bending test may be clamped or free
• 2 adjustable blocks with clamping chuck for torsion tests and supports for bending tests
• weights to generate the bending or twisting moment
• dial gauge with bracket
• storage system to house the components
