Deformation of curved-axis beams

In construction engineering, a distinction is made between beams and arches. An arch is a statically indeterminate supported structure with a curved axis and two fixed supports or clamp fixings. The supports of an arch (such as a double-articulated arch) absorb forces vertically and horizontally. Learn about Deformation of curved-axis beams Engineering Mechanics Trainers India for optimal educational outcomes.. The ends of the arch in the supports do not move. This produces the static arching effect of the system. Learn about Deformation of curved-axis beams equipment for optimal educational outcomes.. In mechanical engineering, crane hooks and chain links are typical examples of a curved beam.

• elastic deformation of curved-axis beams under load

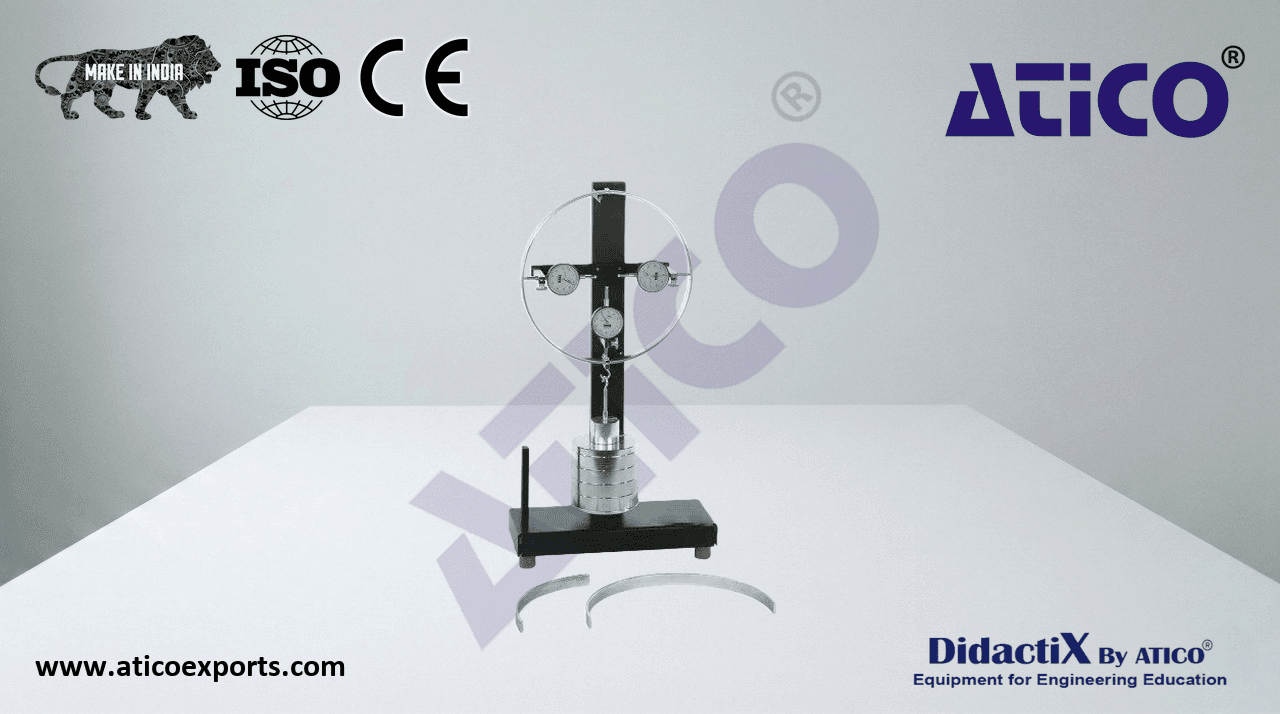

• 3 different beams with the same cross-section: circular beam, semi-circular beam, quadrant beam
• support block to fix the quadrant beam
• pillar with support for mounting the circular or semi-circular beam
• 3 dial gauges to record the horizontal and vertical deformation
• storage system to house the components
