Determination of gear efficiency

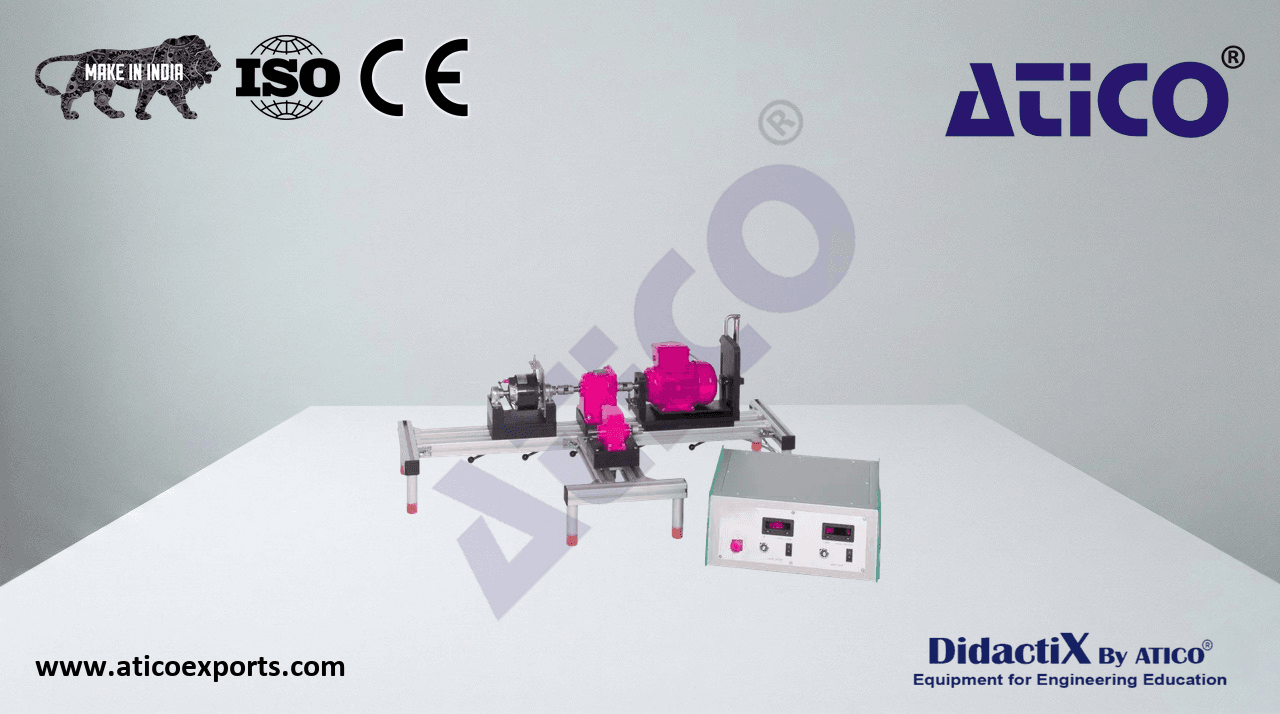

The unit is a complete test system with drive and brake unit and two different gears. Driving and braking power are calculated to determine the efficiencies. The components used are common in drive technology and therefore closely related to practice. Learn about Determination of gear efficiency exporters for optimal educational outcomes..

• determination of mechanical efficiency in gears
• investigation on worm gear and two-stage spur gear
• three-phase AC motor with variable speed via frequency converter
• magnetic particle brake with adjustable braking torque via exciting current
• inductive speed sensor on the motor
• display of speed and exciting current
• determination of torques on motor and brake via spring balance and lever arms
