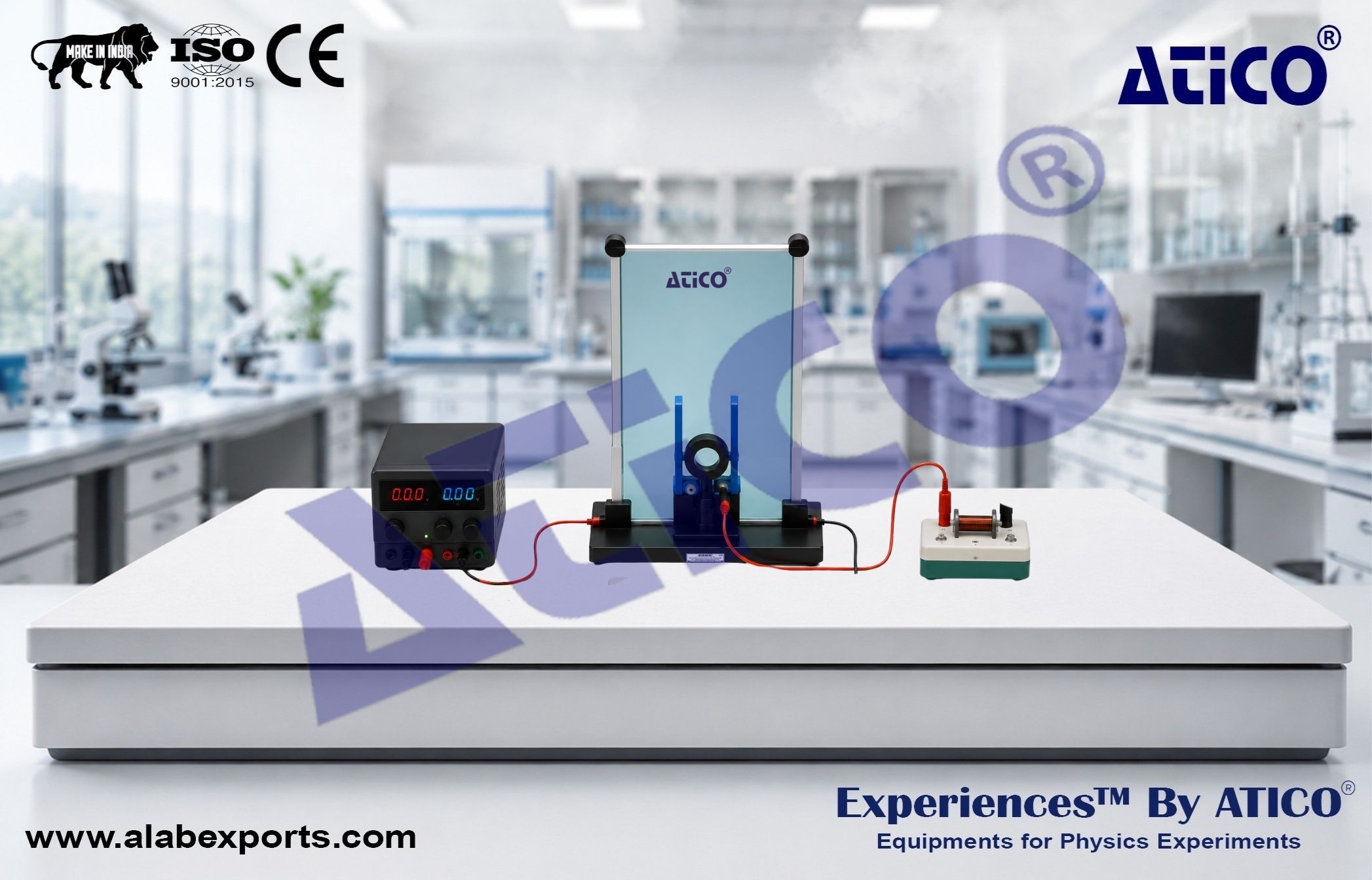

Determining the Capacitance of a Plate Capacitor Measuring the Charge with the Electrometer Amplifier

The Capacitor Assembly Experiment is designed to investigate the relationship between the capacitance of a parallel plate capacitor and its physical dimensions. The apparatus features a demountable capacitor with interchangeable capacitor plates, adjustable plate spacing, and various dielectric materials. It enables students to study the effects of plate area, plate separation, and dielectric medium on capacitance, providing a practical understanding of electrostatic principles. Manufactured by Atico Export India.

Principle

The capacitance of a parallel plate capacitor depends on the plate area, the distance between the plates, and the dielectric material placed between them. By varying these parameters and measuring the resulting capacitance, the fundamental relationship governing capacitor behavior can be experimentally verified.

Objectives

• Study the effect of plate area on capacitance.
• Investigate the influence of plate separation on capacitance.
• Examine the effect of different dielectric materials.
• Verify the relationship between capacitance and capacitor geometry.
• Understand the operating principles of a parallel plate capacitor.

System Components

Capacitor Assembly Kit :

• Quantity: 1

Power Supply :

• Output: 450 V
• Quantity: 1

Two-Way Switch :

• Quantity: 1

Analog Multimeter :

• Quantity: 2

Electrometer Amplifier :

• Quantity: 1

Capacitor :

• Capacitance: 10 nF
• Quantity: 1

Capacitor :

• Capacitance: 0.1 µF
• Quantity: 1

Connecting Rod :

• Quantity: 1

Connecting Leads :

• Current Rating: 19 A
• Length: 50 cm
• Red/Blue Pair
• Quantity: 4

Connecting Leads :

• Current Rating: 19 A
• Length: 100 cm
• Red/Blue Pair
• Quantity: 2

Demountable Capacitor Assembly :

• Allows easy replacement of capacitor plates and dielectric materials.

Interchangeable Capacitor Plates :

• Plate Area: 40 cm²
• Plate Area: 80 cm²

Adjustable Plate Spacing :

• Plate separation adjustable in 1 mm increments.

Multiple Dielectric Materials :

• Supports experiments with various plate-type dielectric samples.

High Voltage Operation :

• Powered by a 450 V power supply for electrostatic experiments.

Educational Design :

• Ideal for studying electrostatic fields and capacitor characteristics.
