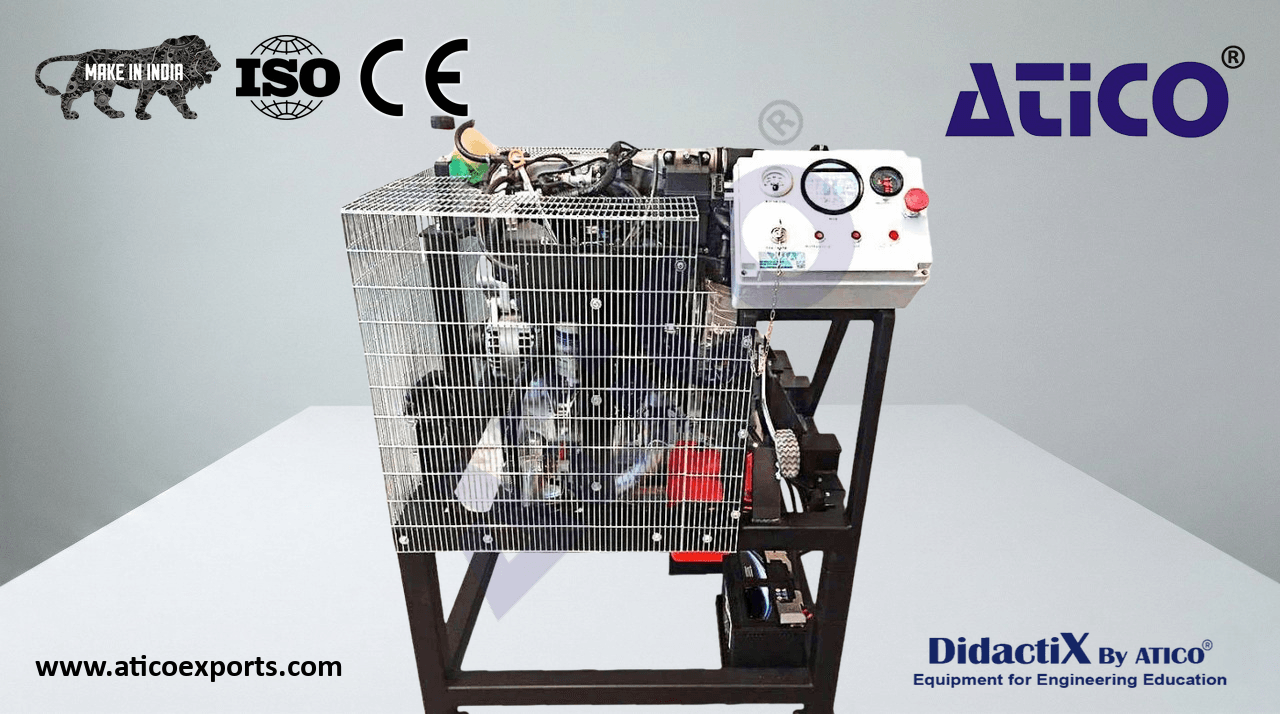

Diesel Running Engine, Common Rail Direct Injection Turbo

This product is a running direct injection turbo diesel engine. The engine can be used to teach how to troubleshoot various failures with its fault simulation (extra customized option), how to do repairs, and general assembly and disassembly.

Specifications

• 4 Cylinder Engine
• 2 Valves Per Cylinder
• Overhead Camshaft (OHC)
• Turbo-compressor
• Displacement: 1900 cc
• Gearbox: 5 Forward Speeds + Reverse
• Diagnostics Socket
• OBD2 Socket Connection
• On Request: Multi-jet, 1300 cc, DOHC, 4 Valves Per Cylinder
• Completely Reconditioned and in Working Condition COMPLETED WITH
• Fuel Tank
• Fuel Filter
• Battery with Relevant Electric System
• Silencer
• Accelerator Command
• Starting Key
• RPM Counter
• Water Temperature Device
• Voltmeter
• Oil Pressure Indicator
• Alternator Charge Indicator
• Radiator with Fan/Electro-fan
• Coolant Tank
• Mesh Guards
• Diagnostic Connector (Where Provided)
• Instruction Manual FAULT SIMULATIONS This unit comes with fault simulation (extra customized option). Fault simulation is done with a control box which consists of 8 switches for simulated failures. Below is a list of 8 common faults (can be customized): 1) Electro-Injector A (S50) 2) Engine Coolant Temperature Sensor (L7) 3) RPM Sensor (S31) 4) Air Flow Meter (S5) 5) Turbo Supercharging Sensor (L36) 6) Accelerator Pedal Potentiometer (L49) 7) Fuel Pressure Regulator (M28) 8) Fuel Pressure Sensor (L59)

Weight And Dimensions

Size: 135cm x 114cm x 151cm (L x W x H) Net Weight: 348 kg Gross Weight: 468 kg
