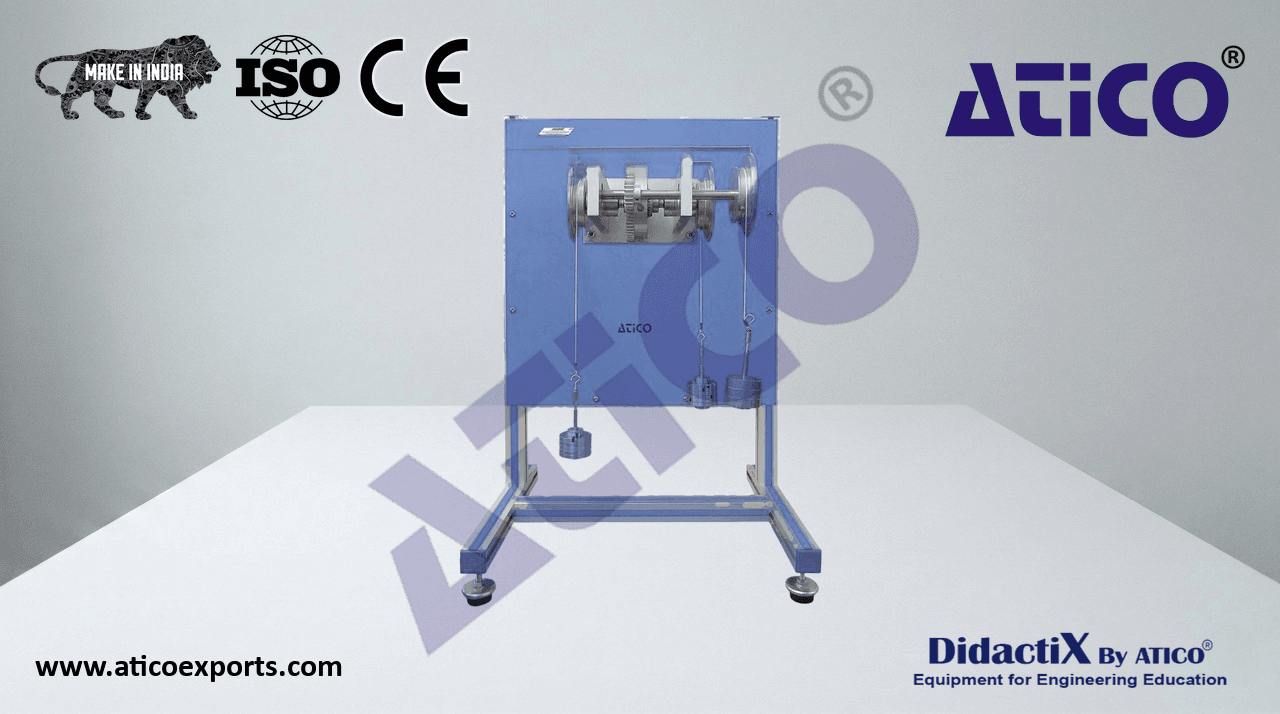

ATENG 12197 — Differential-Crownwheel and Pinion
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Includes brackets that allow to hang the unit on a wall.
- The “ATENG 12197” unit mainly consists of a differential group formed by:
Input pinion (Z = 21).
Crown-wheel (Z = 63).
Three sun gears (Z = 16).
ATENG 12197 detail
Two planetary gears (Z = 32).
Gears are distributed on different shafts (input shaft, right output shaft and left output shaft), which are mounted on ball bearings that
will allow low inertia and a decrease of the losses due to friction. Both the input shaft and the output shafts have pulleys equipped with
protractors with the aim of enabling the student to determine and verify the torque and speed ratios. They are made of aluminum and their
- radius is 40 mm.
