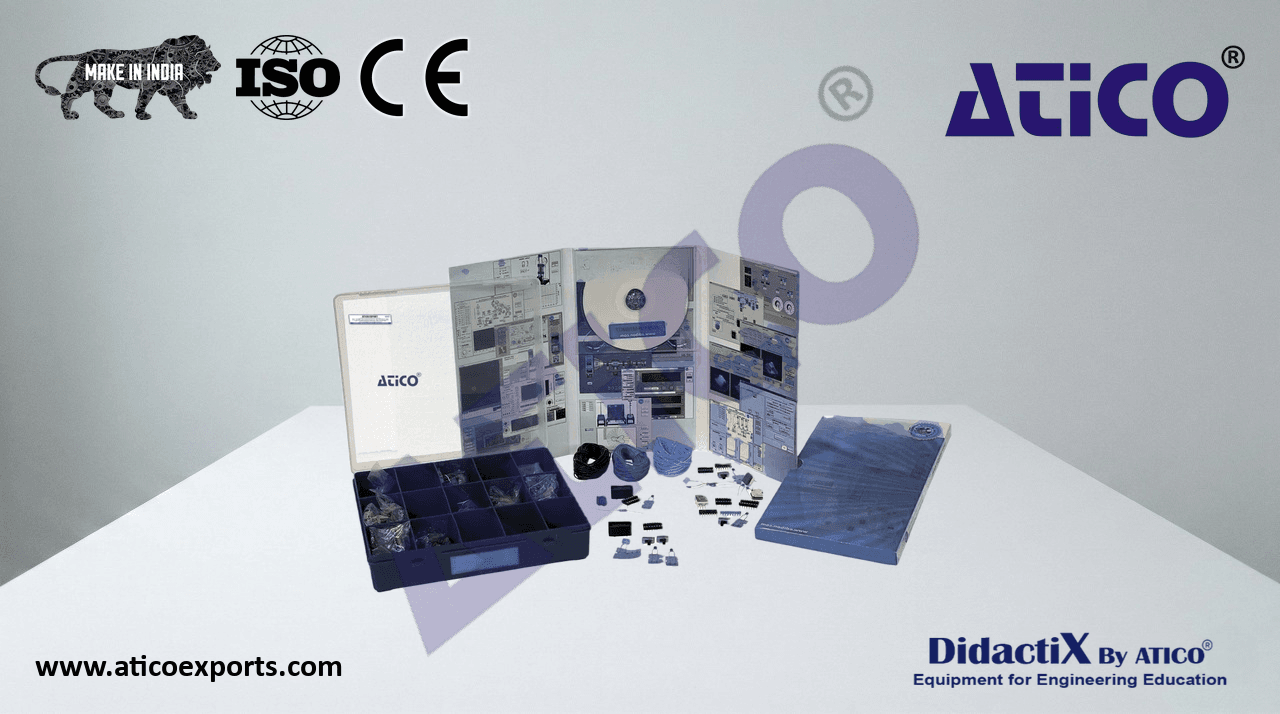

Digital Systems and Converters Kit

With Digital Systems and Converters Kit, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and viceversa.

ATENG 11311 — Digital Systems and Converters Kit

SPECIFICATIONS

• DC Fixed outputs: + 5 V, ± 12 V, 1 A. Development board.
• DC Variable outputs: ± 12 V, 0.5 A. Power supply connector.
• AC Outputs: 12 V or 24 V. Digital visual display unit.
• Outputs through 2 mm terminals, or connectors Sub-D of Logical source.
  25 pins (2 outputs). Set of potentiometers.
  Voltage LED indicators. Pulse generator and inverters.
  Robust construction. Interrupter.
• Power: 110/220 VAC Clock.
• Frequency: 50/60 Hz.
  DIMENSIONS AND WEIGHTS REQUIRED ELEMENTS (Not included)
• Dimensions: 225 x 205 x 100 mm approx. - ATENG 11245. Power Supply.
• (8.85 x 8.07 x 3.93 inches approx.) - ATENG 11246. Base Unit, with built-in power supply.
• Weight: 2 kg approx.
  (4.4 pounds approx.)
