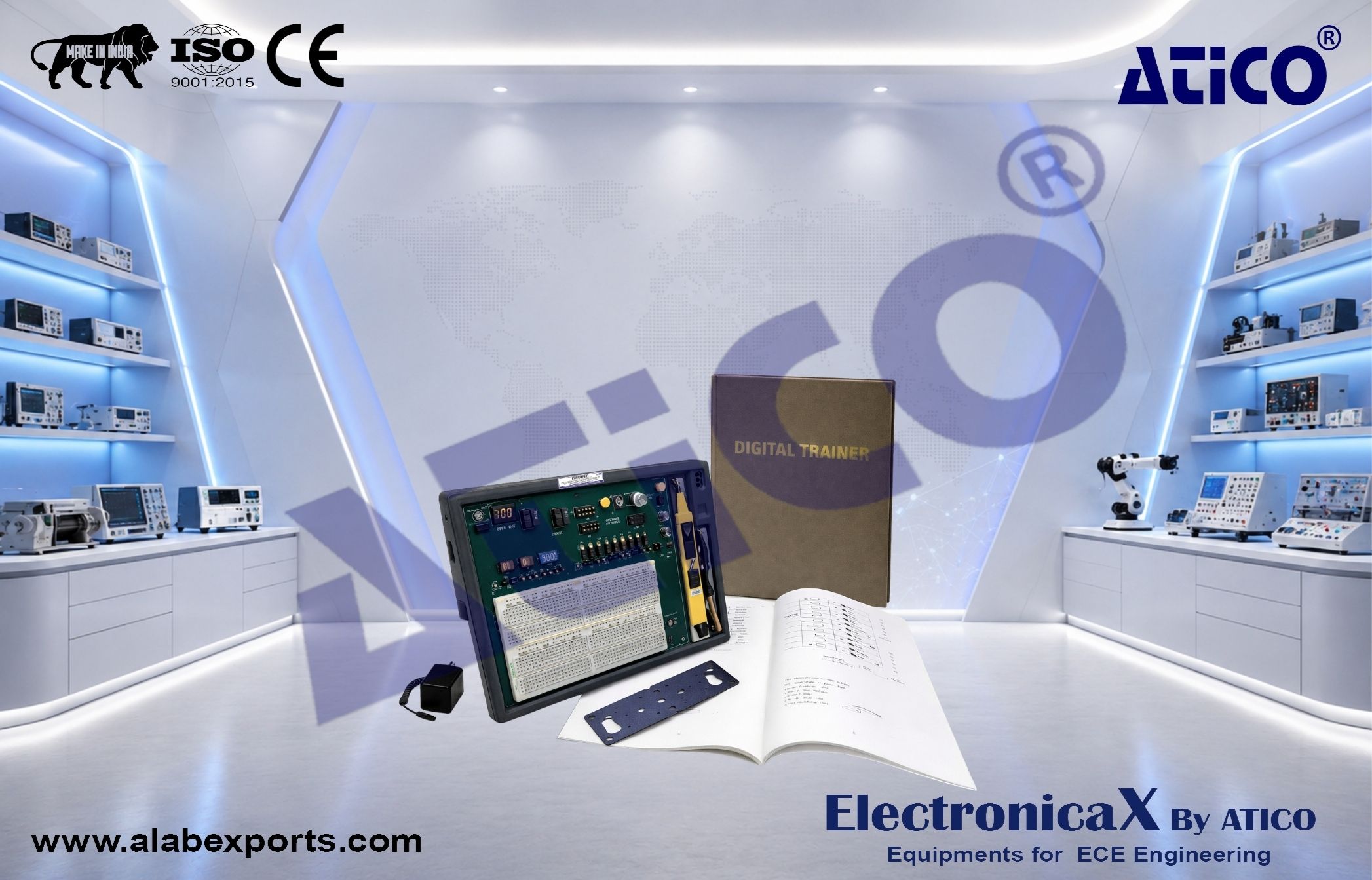

Digital Trainer

With components sourced by users, the following experiments can be constructed by hardware and user–s guide: LED display, Getting a pulse, Setting a logic level, Getting a clock and using the logic probe, AND/OR/NAND/NOR/XOR Gate, Three state buffer, RS latch, JK Flip Flop, Monostable multivibrator, and Asynchronous up/down counter.

LED display, Getting a pulse, Setting a logic level, Getting a clock and using the logic probe, AND/OR/NAND/NOR/XOR Gate, Three state buffer, RS latch, JK Flip Flop, Monostable multivibrator, and Asynchronous up/down counter.
