DISC BRAKE APPARATUS

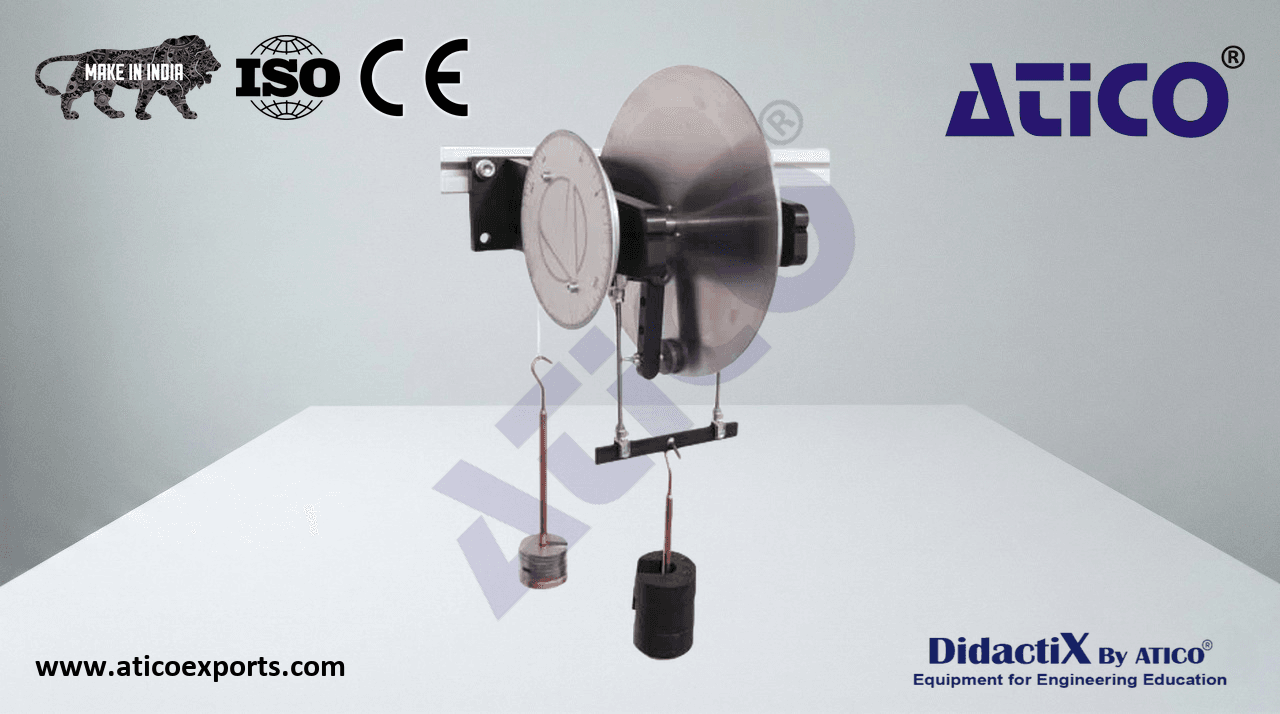

A brake disc mounted vertically in a sturdy frame, with a shaft running through the disc and wall bracket supports. A cord pulley mounts to the shaft, terminating in a load hanger. Two bell crank levers mounted either side of the disc apply braking force via the load hanger and calibrated weights. Learn about DISC BRAKE APPARATUS manufacturers for optimal educational outcomes.. Parameters of braking force, braking torque, and normal force can be assessed. Different brake pad materials and radial positions on the disc can be tested. Learn about DISC BRAKE APPARATUS theory-machines India for optimal educational outcomes..

• Disc wheel: Stainless steel, Ø210 mm × 3 mm
• Brake pad radial positions: 20 mm intervals
• Brake pad dimensions: Ø25 mm × 6 mm max
• Brake pad materials: Brake material, aluminium, brass, nylon
• Protractor: 360°, 1° increments
• Weights set: 3 × 0.1 N, 8 × 0.2 N, 3 × 1 N, 3 × 2 N, 1 × 5 N
• Load hangers: 2
