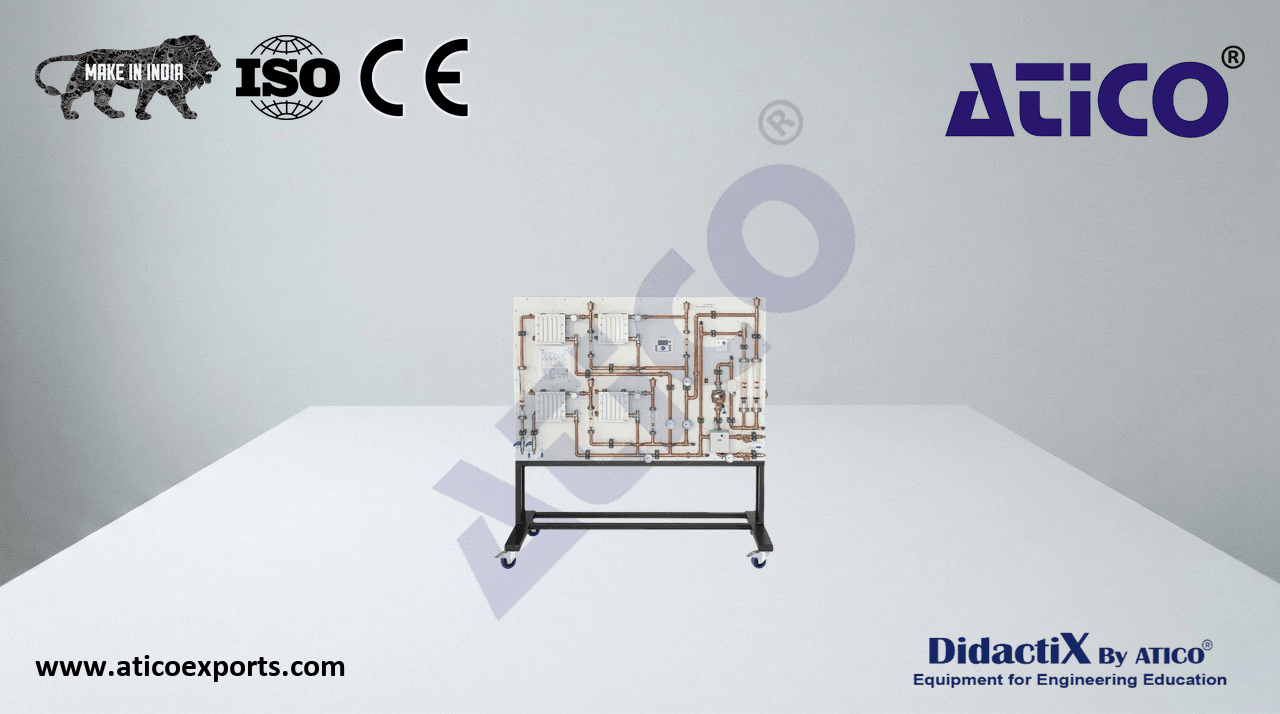

Domestic heating circuit training panel

A pump circulates water through four radiators. The temperature of the radiators is set using thermostatic valves.

• trainer for heating engineering
• heating controller with feedback of the feed flow temperature
• four-way mixing valve DN 20
• circulating pump
• 7 rotameters
• 4 plate heat exchangers as radiators
• 5 bimetallic thermometers
• 2 cold water connections DN 15
• 2 water connections for boiler DN 15
• 1 differential pressure overflow valve
