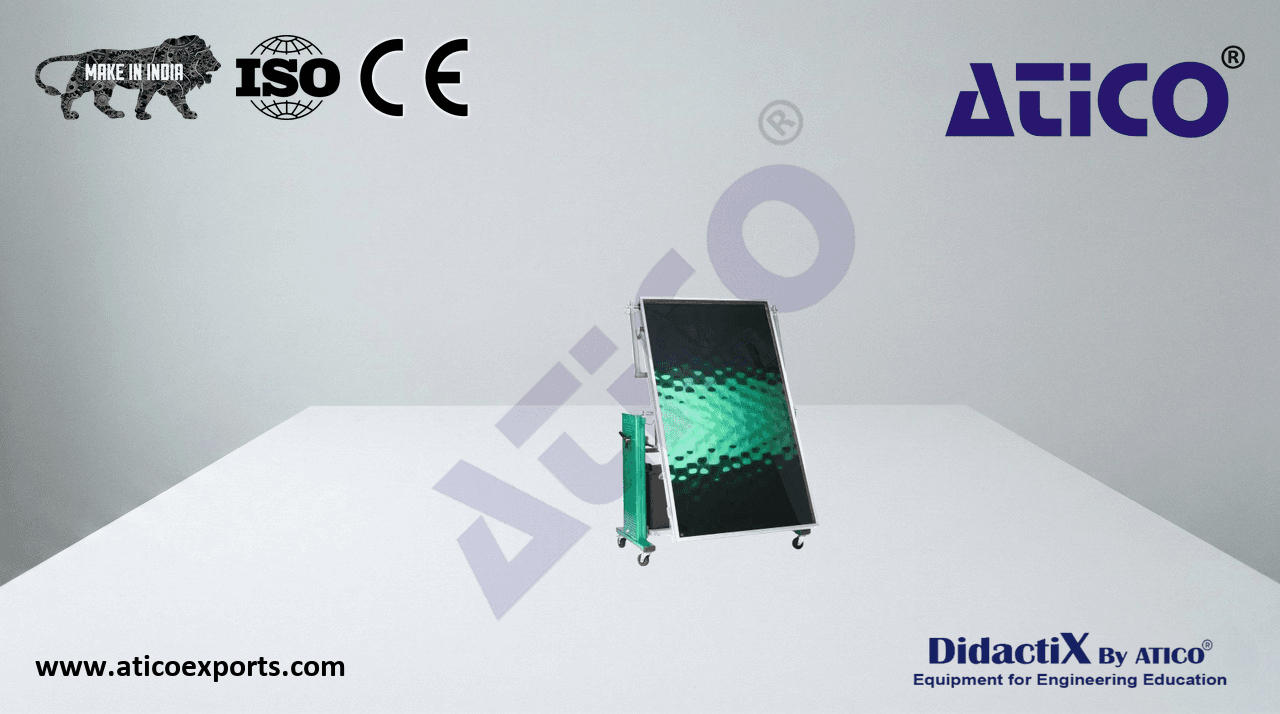

Domestic water heating with flat collector Deluxe

A widespread type of collector, which collects solar energy in a non-concentrating way, is the flat collector. The absorber is a selectively coated metal sheet that conducts heat well. The flat collector is mainly used for hot water preparation and heating support. Learn about Domestic water heating with flat collector specifications for optimal educational outcomes.. It represents a balanced compromise between simple, cost-effective construction and efficiency.

• investigating the function and operating behaviour of a flat collector
• solar thermal flat collector with selectively absorbing coating
• adjustable collector inclination angle
• solar circuit with collector, pump, expansion vessel and safety valve
• hot water circuit with buffer tank, pump and plate heat exchanger
• 4 bimetallic thermometers
• solar controller with temperature, flow rate and illuminance sensors
• data logger with SD memory card
• integrated router for operation and control via web browser using an end device and for tracking experiments on any number of end devices
• experiment evaluation on Windows-based end devices possible, with additional producer software of the solar controller
• operation with solar radiation or artificial light source
