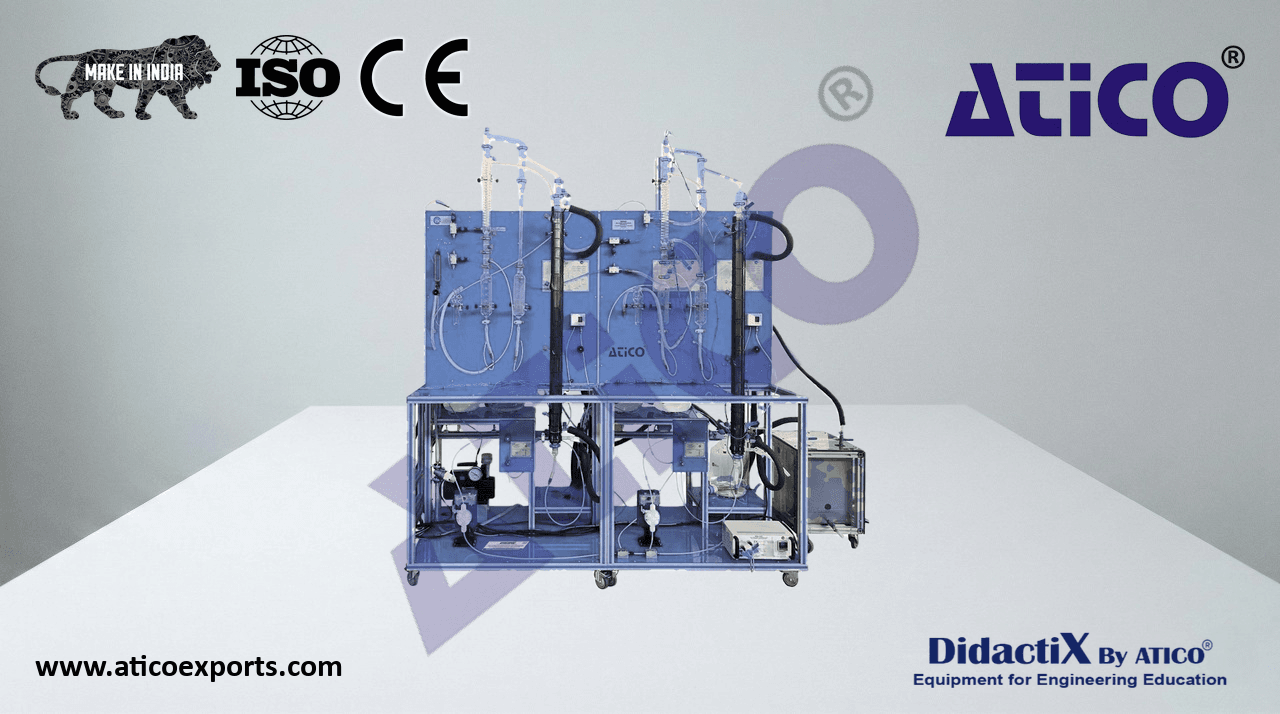

ATENG 10792 — Double Effect Rising Film Evaporator
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one with the
three possible configurations.
- Two evaporation double jacket columns, with a heating area of 0.122 m², 30 mm inner
- diameter, 60 mm outer diameter and length of 1300 mm.
Two membrane dosing pumps, with maximum flow of 15 l/h.
Simple effect vacuum pump, with maximum flow of 3 mÂł/h and maximum vacuum of
150 microns.
- Five tanks, capacity: 10 l (for feeding, concentrated and evaporated).
- Four graduated vessels for storage of concentrated and evaporated product, capacity:
500 ml.
- Immersion heating element, range: 300 W. ATENG 10792 detail
- Two coil coolants with length of 400 mm.
Two high safety pressure cut out for pressure control in the columns.
Thirteen temperature sensors, “J” type.
Flowmeter.
Four manometers.
Two solenoid valves.
- The unit allows to work with several configurations:
- a) Double-effect: the steam generated in the first stage of the evaporation is introduced in the second column.
b) Steam from the first column´s jacket can be used to heat the second column.
c) Columns receive steam from the generator in an independent way.
- Electronic console:
Metallic box.
Temperature sensors connections. Digital display for temperature sensors. Selector for temperature sensors.
Pumps switches.
Heating element controller.
High pressure cut out connections.
Solenoid valves connections.
Main switch.
Cables and Accessories, for normal operation.
