Drainage and Seepage Tank

The Drainage and Seepage Tank, unit has been designed for the practical demonstration, visualization and experimental study of the flow through permeable media and flows in subsoil.

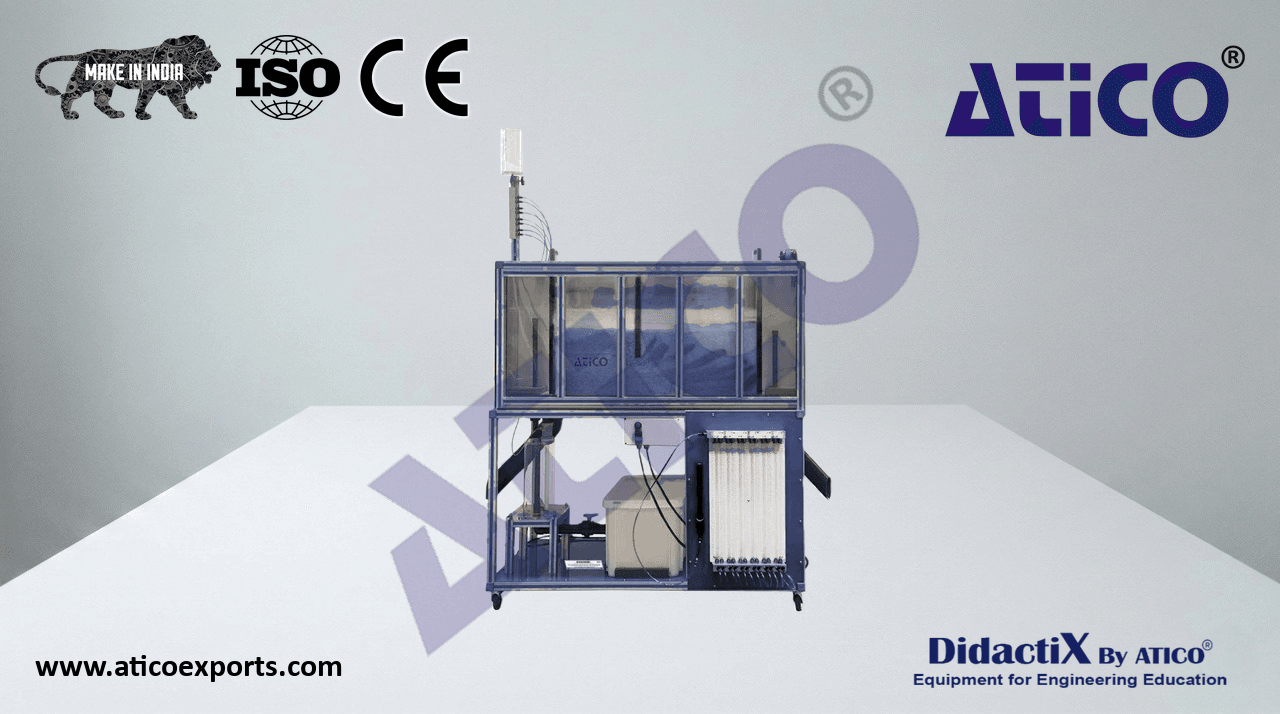

ATENG 11629 — Drainage and Seepage Tank

Mobile bench.

Ensemble de modèles inclus

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

Planche étanche

Rectangular tank (soils container), with front side in methacrylate and back side in aluminium, to

cantain the sand. (Sand not included).

Two overflow pipes in the tank.

Twelve pressure tappings joined to a manometric tubes panel.

• Feed water tank (capacity: 75 l).
  Portail pivotant
• Water pump: 0.37 KW, 30 – 80 l/min at 20.1 – 12.8 mwc
  Control valve to regulate the water flow.
• Water colletion tank (capacity: 75 l). This tank is connected to the feed water tank. It includes a system
  to avoid the passing of sediment to the previous one.
  Samples colletion tank. It includes a level sensor and a valves to control the emptying process.
• Dye injection system: with dye vessel, with eight dye injection needles and regulation valve.
• Set of typical models:
  Sheet pile wall.
  Two mesh gate.
  Accessoire mobile
  Mobile accessory for pressure measurement.
  Cables and accessories, for normal operation.
