Drive, Shaft, and Gear Alignment Unit

The Drive, Shaft, and Gear Alignment Unit, allows for studying the coupling and uncoupling, maintenance, repair of the related units and checking the operation.

ATENG 12272 — Drive, Shaft, and Gear Alignment Unit

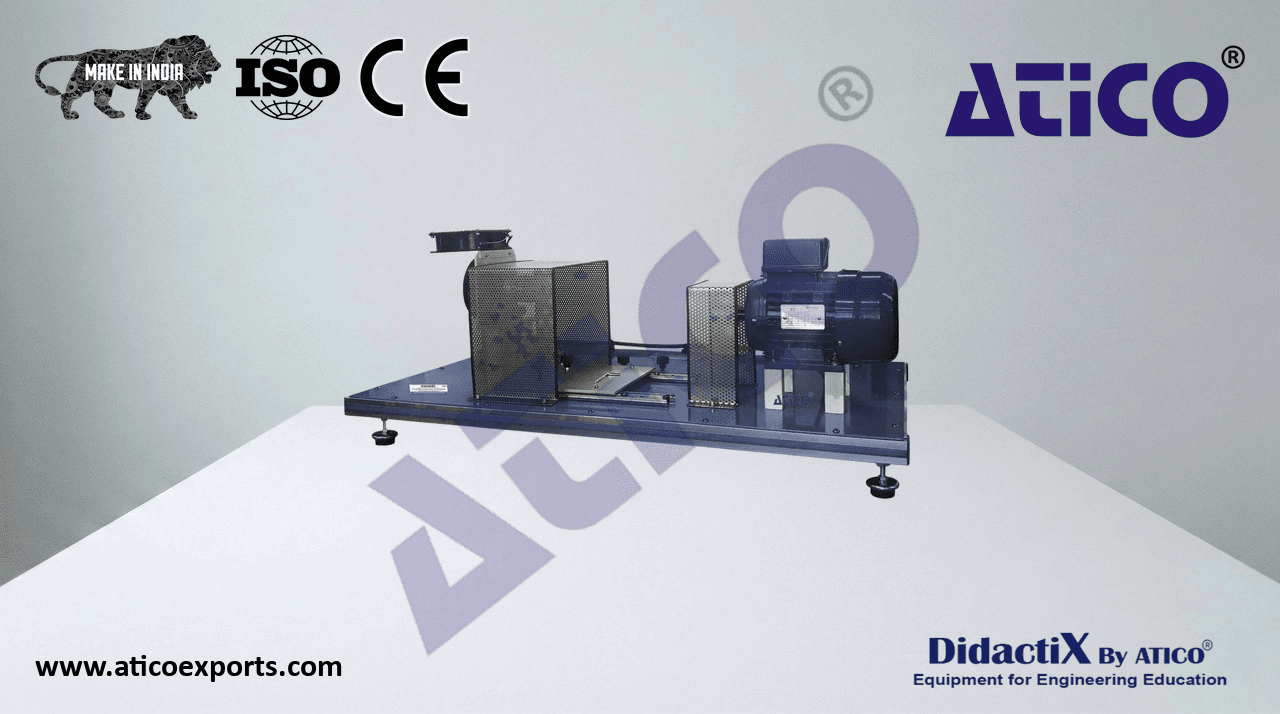

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

Machine bench made of aluminum.

• The “ATENG 12272” unit mainly consists of:
• Drive motor:
  Two-pole asynchronous motor.
• Maximum power: 0.55 Kw.
• Number of revolutions: 1500 min-1.
• Magnetic particle brake:
• Maximum braking torque: 5 Nm.
  Fan for cooling the brake.
  Potentiometer to adjust the braking torque.
  Metal bellows and interchangeable claw couplings. ATENG 12272 detail
• Electronic console:
  Metal box.
  Motor switch.
  Brake switch.
  Adjustable braking current controller.
  Digital display of the braking torque measurement.
  Cables and accessories, for normal operation.
