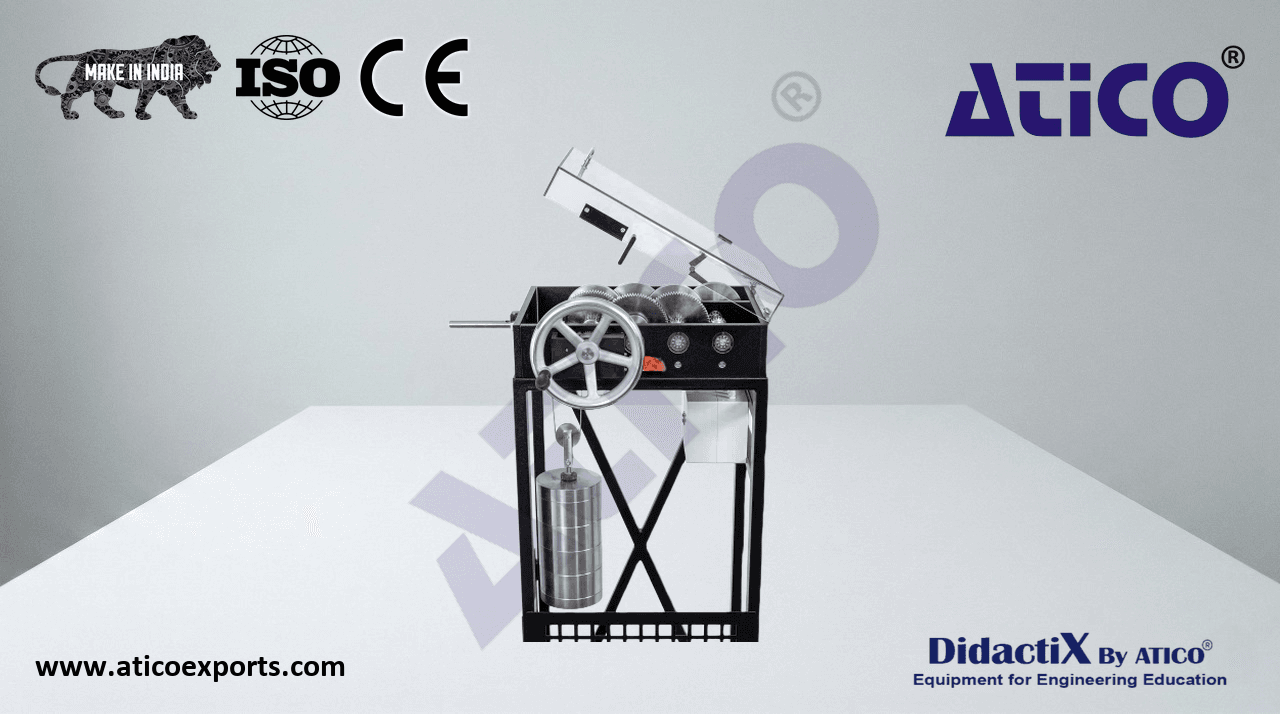

Dynamic behaviour of multistage spur gears

Gears are employed as a link between driving machine and driven machine. They are used to vary torque and speed and to change direction. The aim of dynamic gear analysis is an understanding of the motion sequences and the influence of inertia. Learn about Dynamic behaviour of multistage spur gears specifications for optimal educational outcomes..

• investigation of the dynamic behaviour of 1-stage, 2-stage or 3-stage spur gears
• 4 shafts, 3 driving and 3 driven gears
• shafts can be coupled by coupling pins
• optional attachable flywheels to increase the rotational inertia on each shaft
• gear is accelerated via cable drum and variable set of weights
• weight raised by handwheel; ratchet prevents accidental release
• clamping roller freewheel enables free further rotation after the weight has been released
• gear decelerated via hand-operated brake
• safety devices: transparent protective cover with safety lock and protective grill for the set of weights
• inductive speed sensors on all driven gears
• software for data acquisition via USB under Windows 11
