Dynamic Cone Penetrometer

Standards Compliance :

• Complied as per ASTM D6951

Application :

• This portable hand operated apparatus is used for the rapid in-situ measurement of the structural properties of existing road pavements constructed with unbound materials.The DPC Penetrometer results can be compared and interpreted with CBR (California Bearing Ratio) as per sperimentalKleyn 1982 studies.
  Continuous measurements can be made down to a depth of approximately 800 mm or, when extension shafts are used, to a recommended maximum depth of 2 m.

Composition :

• The Dynamic cone penetrometer, consists of;
• Drop sliding hammer 8 kg weight dropping mass trough a height of 575 mm,
• Penetration rod,
• 2 pcs. 60° cone,
• Anvil with driving rod,
• Metal plate coupling for ruler,
• Ruler reading plate,
• Extension rod (430 mm),
• Extension rod (994 mm),
• Spanners, 13 mm and 17 mm,
• A bottle of adhesive,
• Steel Ruler,

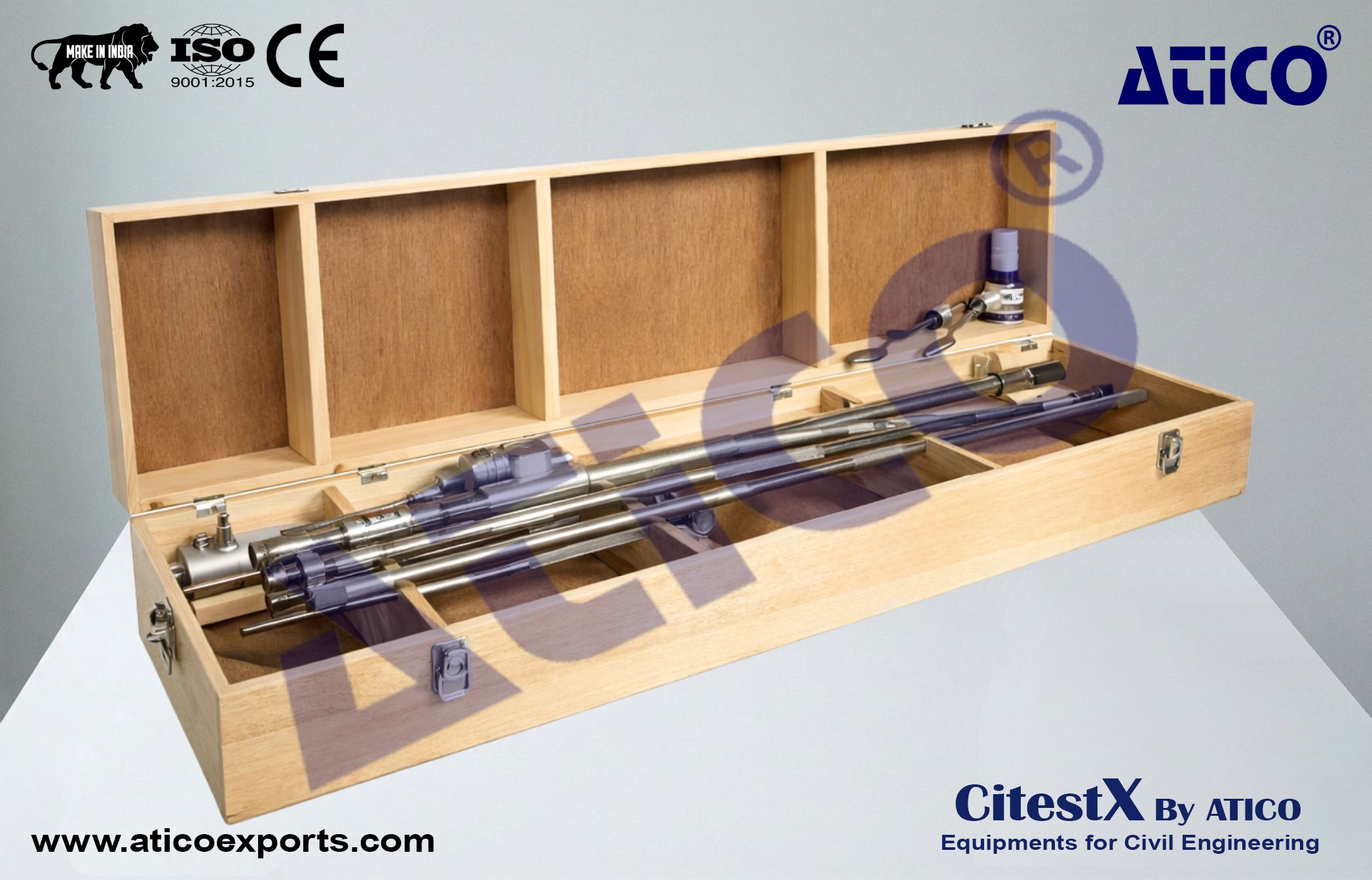

• All contained in a wooden carrying case.

Dimensions (cm) :

120 ° 35 ° 20

Weight (kg) :

30
