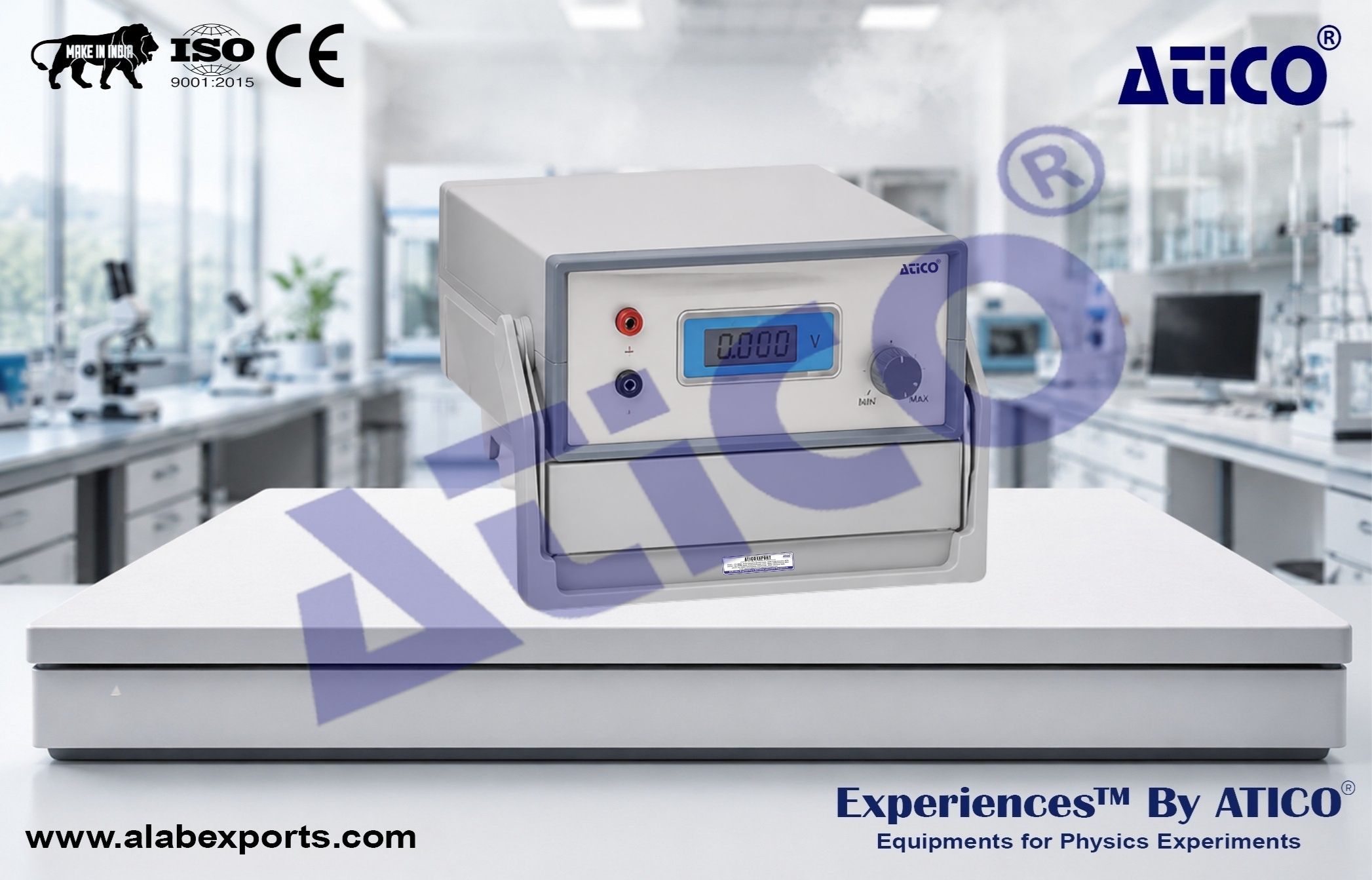

Dynamic Hysteresis Physics Lab Experiment Setup

This experiment system is designed for studying the dynamic hysteresis characteristics of magnetic materials. It enables the observation and analysis of hysteresis loops, helping students understand magnetic properties such as magnetization, remanence, and coercivity. The system provides a practical platform for investigating the behavior of ferromagnetic materials under varying magnetic field conditions.

Manufactured by Atico Export India.

Experimental Principle and Content

• Dynamic Hysteresis Loop Measurement and Analysis

Adjustable Isolation Transformer :

• Voltage Regulation Range: DC 0–100 V

Sample Core Cross-Sectional Area :

• 354 mm²

Average Magnetic Core Length :

• 78 mm

Primary Coil Turns :

• 1150 Turns

Secondary Coil Turns :

• 281 Turns

Optional Instrument :

• Oscilloscope Required Separately
