Elasto-hydrodynamic behaviour

Elasto-hydrodynamic lubrication occurs in roller bearings, gear wheels and cam followers, whose contact surfaces are subjected to high loads. These surfaces are elastically deformed because of high contact pressures. The theory of elasto-hydrodynamics (EHD theory) takes into consideration the elastic deformation of the bodies in contact with each other and provides a basis for calculating the influence of lubrication on damage to gears and roller bearings. Learn about Elasto-hydrodynamic behaviour for educational labs for optimal educational outcomes..

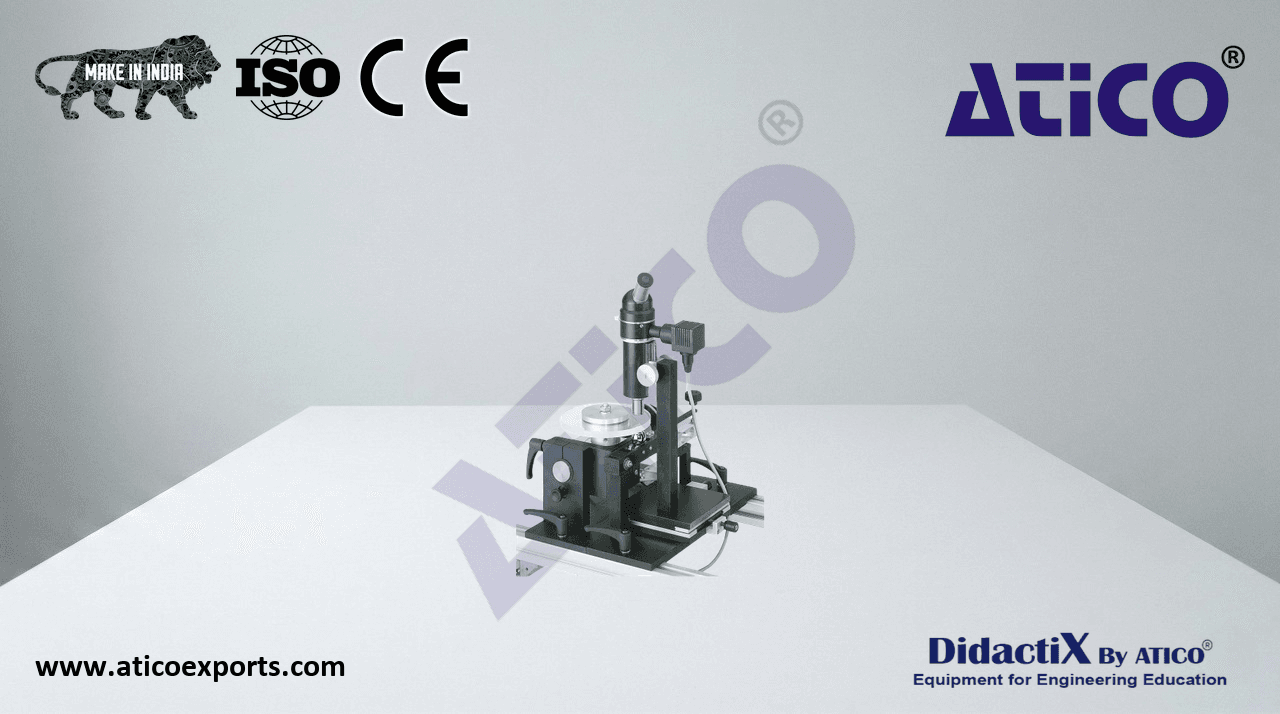

• elasto-hydrodynamic behaviour of a lubricating film layer between sphere and rotating glass plate
• quick and easy assembly of the experimental unit on the frame of the drive unit
• determine the thickness of the lubricating film by optical interference
• glass plate is driven by a clampable coupling between drive unit and gear unit
• hardened steel sphere, polished
• rotating plane-parallel glass plate with dielectric coating
• continuous load on the sphere via lever arm
• load measured by force sensor
• displays of force and speed and speed adjustment on the drive unit
