Electrical connection of refrigerant compressors

The wiring of electrical components for the start and operation of refrigerant compressors is a typical task in the field of refrigeration. Safety aspects also play an important role. With ET 171 this knowledge and these skills can be acquired. Learn about Electrical connection of refrigerant compressors suppliers for optimal educational outcomes.. All components are operated and tested with mains voltage to provide high relevance for practice.

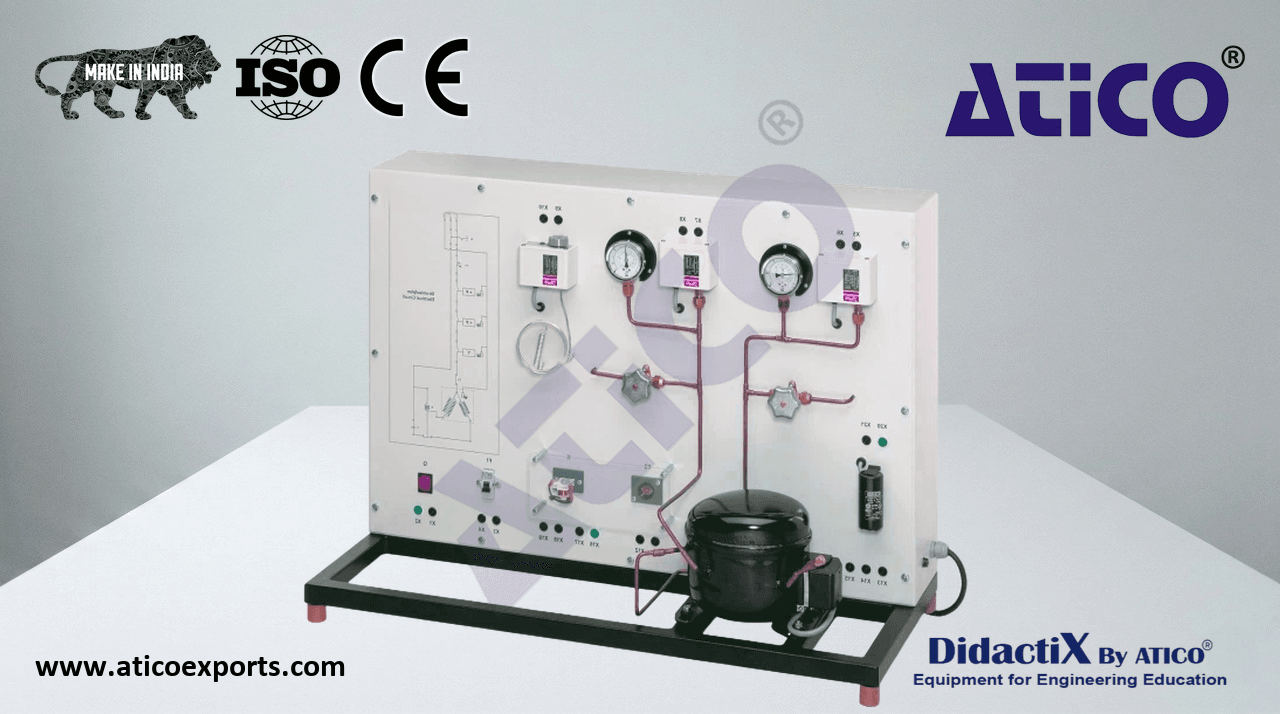

• experimental unit from the practical series for the training of mechatronics engineers for refrigeration
• correct electrical connection of a refrigerant compressor
• refrigerant circuit with compressor, receiver, 2 valves and 2 manometers to investigate pressure switches on the delivery and intake sides
• electrical components for the start and operation of the compressor mounted clearly visible
• lab jacks and cables to connect the electrical components
• operation of a thermostat
• circuit diagram on the front panel for easy identification of the components
• refrigerant R513A, GWP: 631
