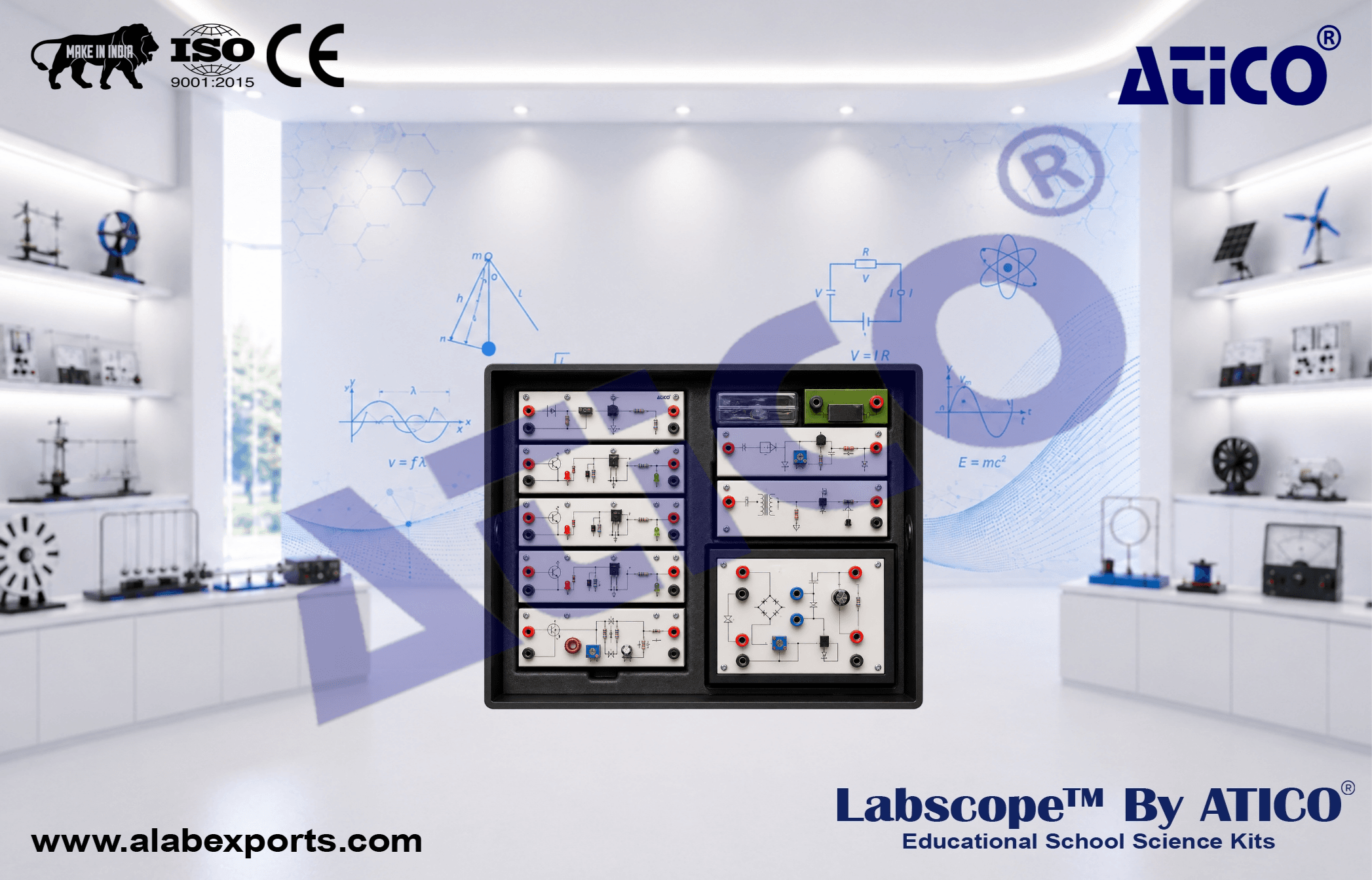

Advanced experiments with alternating current circuit:

• The ELECTRIC 8 experiment set builds upon semiconductor concepts from ELECTRICITY 7

• Uses pre-fabricated circuit boards for handling more complex experiments

• Better suited than plug-in grids for advanced circuit analysis

• Covers experiments on:

• Coils and capacitors in AC and DC circuits

• Electromagnetic resonant circuits

• Special highlight:

• Meissner oscillator enables visualization of oscillations as low as 1 Hz

External power supply:

• Unlike earlier sets, this system uses a low-voltage plug-in power supply
• Battery operation is not used
• Power supply is required but not included in the set

Included items:

• 1 × Storage box

• 1 × Inlay with cut-outs for E8

• 1 × Base plate E8

• 1 × Circuit board 1

• 1 × Circuit board 2

• 1 × Circuit board 3

• 1 × Circuit board 4

• 1 × Circuit board 5

• 1 × Circuit board 6

• 1 × Transformer

• 4 × Short-circuit plug E8

• 1 × Capacitor 47 µF

• 1 × Capacitor 100 µF

• 1 × Capacitor 220 µF

• 1 × Capacitor 470 µF

• 1 × Capacitor 1000 µF

• 1 × Capacitor 2200 µF

• 1 × Knurled screw E8

• 1 × Plate with coil

• 3 × Incandescent lamps

• 1 × Experiment cable 8.5 cm

• 4 × Experiment cable 17 cm

• 4 × Experiment cable 25 cm blue

• The box insert provides space for a monitor (ordered separately)

Experiments:

• Coils in AC and DC circuits
• Ohmic resistance of a coil
• Inductive resistance
• Inductance
• Self-induction when power to a coil is switched on and off
• Capacitors in DC circuits
• Voltage across a capacitor
• How voltage changes over time when capacitors charge and discharge
• Current during charging and discharging
• Time required for charging and discharging
• Capacitors in AC circuits
• Voltage drop across a capacitor
• Capacitive resistance
• Time switches
• Operational amplifiers (op amps)
• Wien-Robinson oscillator
• Resonance in series circuits
• Resonance in parallel circuits
• Meissner oscillator
