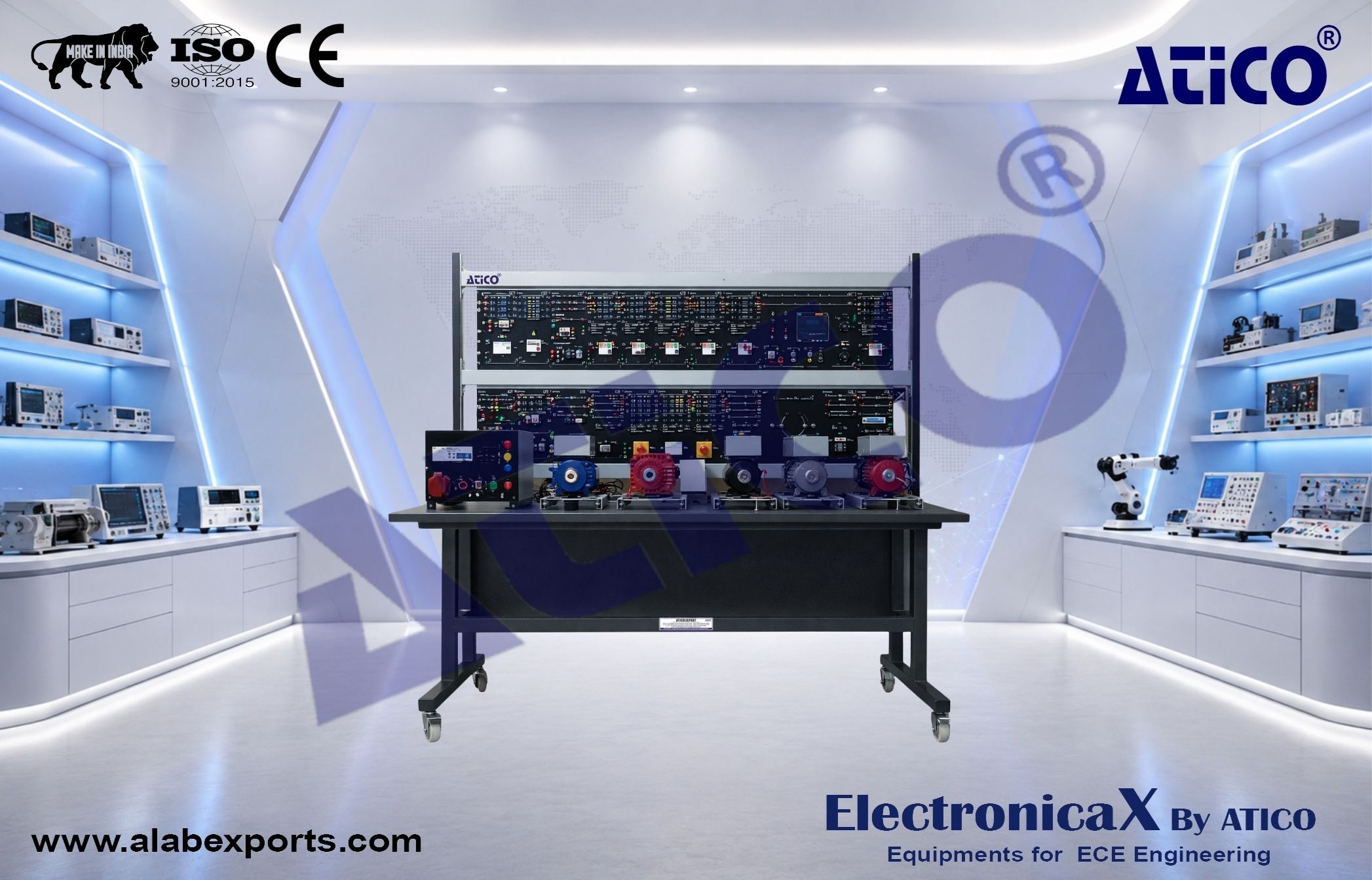

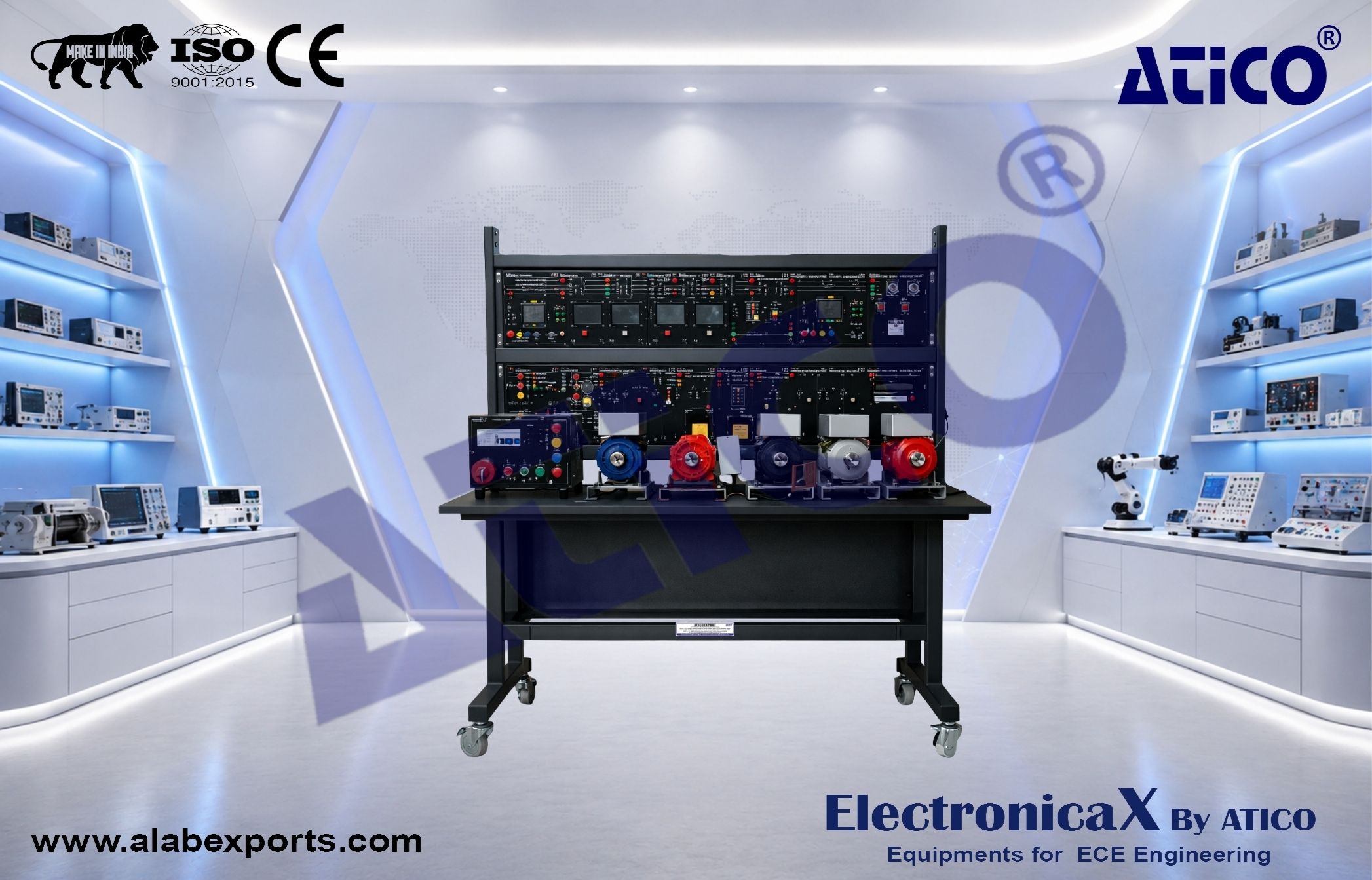

DC SHUNT WOUND MACHINE
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 220VDC
- Nominal Current: 1.50
- Nominal Speed: 1500 rpm
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
DC SERIES WOUND MACHINE
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 220VDC
- Nominal Current: 1.50
- Nominal Speed: 1500 rpm
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)

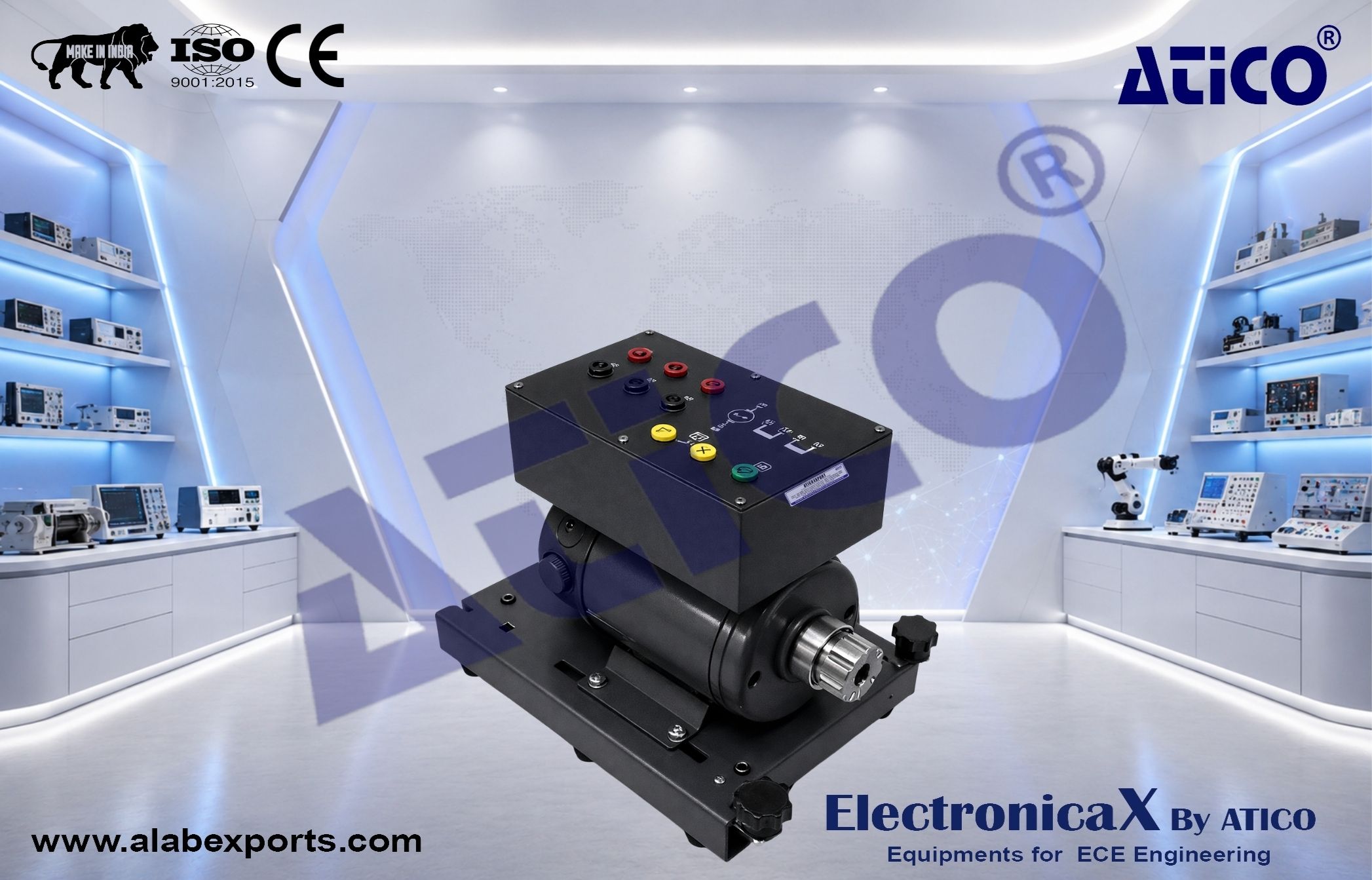

DC COMPOUND WOUND MACHINE
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 220VDC
- Nominal Current: 1.50
- Nominal Speed: 1500 rpm
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
THREE PHASE INDUCTION MOTOR
- Nominal Power: 750W (1HP)
- Nominal Voltage: 400/275V Delta/Star
- Nominal Current: 2.85 / 1.85A (Delta/Star)
- Nominal Speed: 1500 rpm
- Cooling Method: Totally Enclosed Fan Cooled
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
THREE PHASE SLIP RING MOTOR
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 240 / 415V (Delta/Star)
- Nominal Current: 4.5 / 4.0A (Delta/Star)
- Nominal Speed: 1500 rpm
- Frequency: 50Hz
- Cooling Method: Self Cooling
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
THREE PHASE DAHLANDER MOTOR
Three Phase Dahlander Winding Double Speed Motor With Winding Connection: Dahlander °/YY
- Rated Power: 450W / 550W (4 Pole / 2 Pole)
- Rated Voltage: 415V (Delta/Star-Star)
- Rated Current: 1.40 / 1.51A (4 Pole/2 Pole)
- Rated Speed: 1420/2860rpm (4 Pole/2 Pole)
- Insulation: Class F
- Winding Poles: 4 Pole /2 Pole
- Cooling Method: Totally Enclosed Fan Cooled
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
THREE PHASE SYNCHRONOUS MACHINE
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 240 / 415 V (Delta/Star)
- Nominal Current: 1.85 / 2.85 A (Delta/Star)
- Nominal Speed: 1500 rpm
- Frequency: 50 Hz
- Excitation Voltage: 0 ~ 50 VDC
- Excitation Current: 0.25 A
- Winding poles: 4
- Cooling Method: Self Cooling
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
ROTOR RESISTANCE STARTER UNIT
- Switching adjustable in 2 steps and able to start Three Phase Slip Ring Machine (Wound Rotor Motor) up to 750W, 415V, 50Hz
- Horse Power : 2
- F.L.S.T. : 150
- Rotor Voltage : 120
- Rotor Current : 5
- Step : 2
- STAR Point : 1

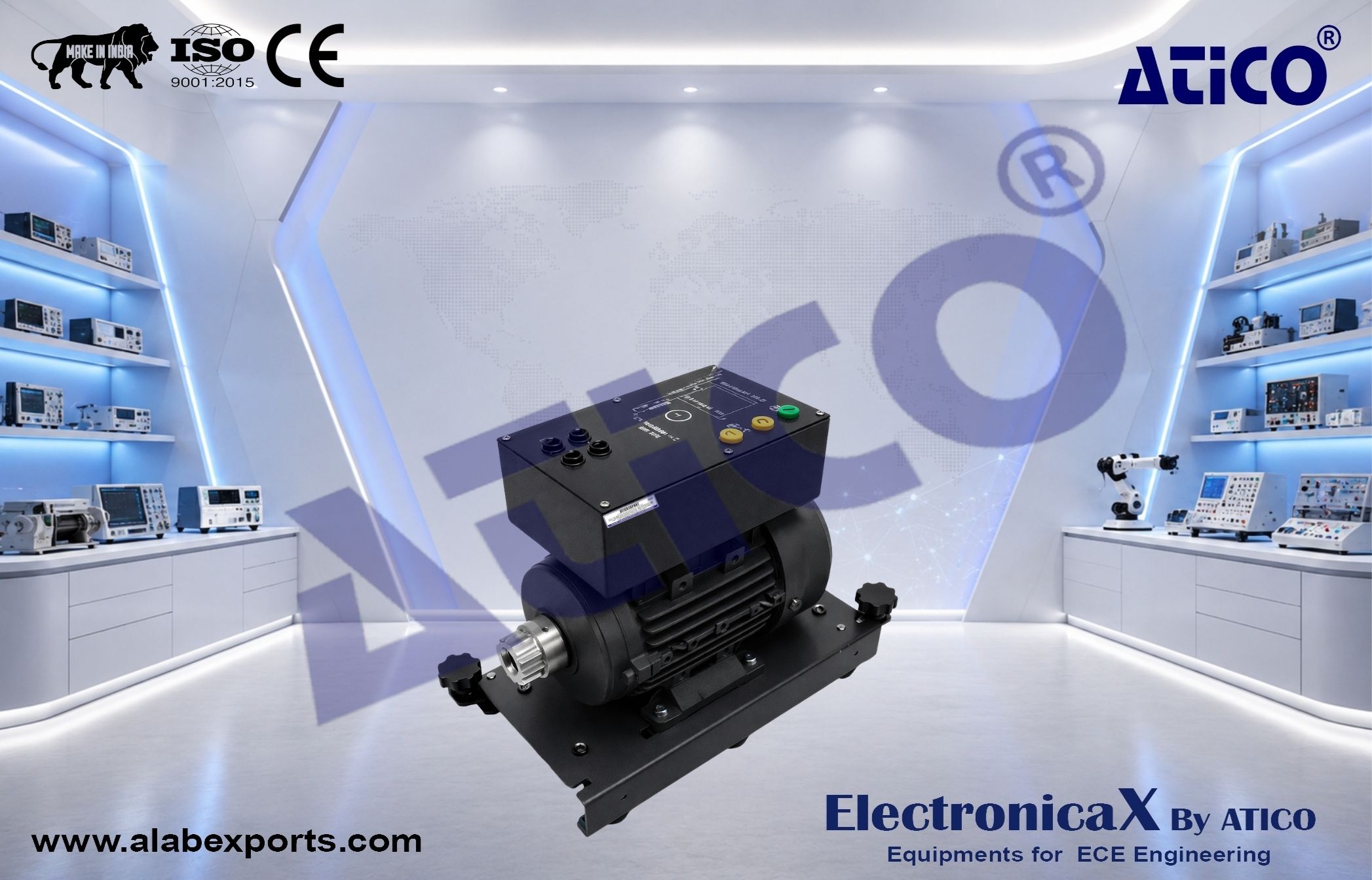

CAPACITOR START INDUCTION MOTOR
- Nominal Power: 370W
- Nominal Voltage: 240VAC
- Nominal Current: 2.5A
- Nominal Speed: 1500rpm
- Frequency: 50Hz
- Power Factor: 0.78
- Winding Poles: 4
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
CAPACITOR START & RUN INDUCTION MOTOR
- Nominal Power: 370W
- Nominal Voltage: 240VAC
- Nominal Current: 2.5A
- Nominal Speed: 1500rpm
- Frequency: 50Hz
- Power Factor: 0.78
- Winding Poles: 4
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
SINGLE PHASE SPLIT PHASE MOTOR
- Nominal Power: 375W
- Nominal Voltage: 240VAC
- Nominal Current: 2.5A
- Nominal Speed: 1500rpm
- Frequency: 50Hz
- Power Factor: 0.78
- Winding Poles: 4
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
UNIVERSAL AC/DC MOTOR
- Nominal Power: 370W (AC/DC)
- Nominal Voltage: 240 V (AC/DC)
- Nominal Current: 3.0 A
- Nominal Speed: 3000 rpm
- Frequency: 50 Hz
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit
- Coupling: EM-21-CS (Option)
REPULSION INDUCTION MOTOR
Single Phase commutator motor with short circuit rotor
- Phase: Single Phase
- Nominal Power: 370W
- Nominal Voltage: 240VAC
- Nominal Current: 3.8A
- Nominal Speed: 1500rpm
- Frequency: 50Hz
- Terminals: 4mm Safety Socket
- Coupling: Optional (Alignment Needed For Coupling To Generator Brake Unit)
- Base Plate: Attachable To Break Load Unit / Generator Unit
TACHOGENERATOR
- Power Rating: 350W
- Output Voltage: 0 ~ 80V
- Current: 250mA
- Speed: 3000rpm
- Motor Coupling Set (Must Compatible For Motor Or Prime Mover)
- Base Plate (Must Compatible With Motor or Prime Mover)
- Coupling: EM-21-CS (Option)

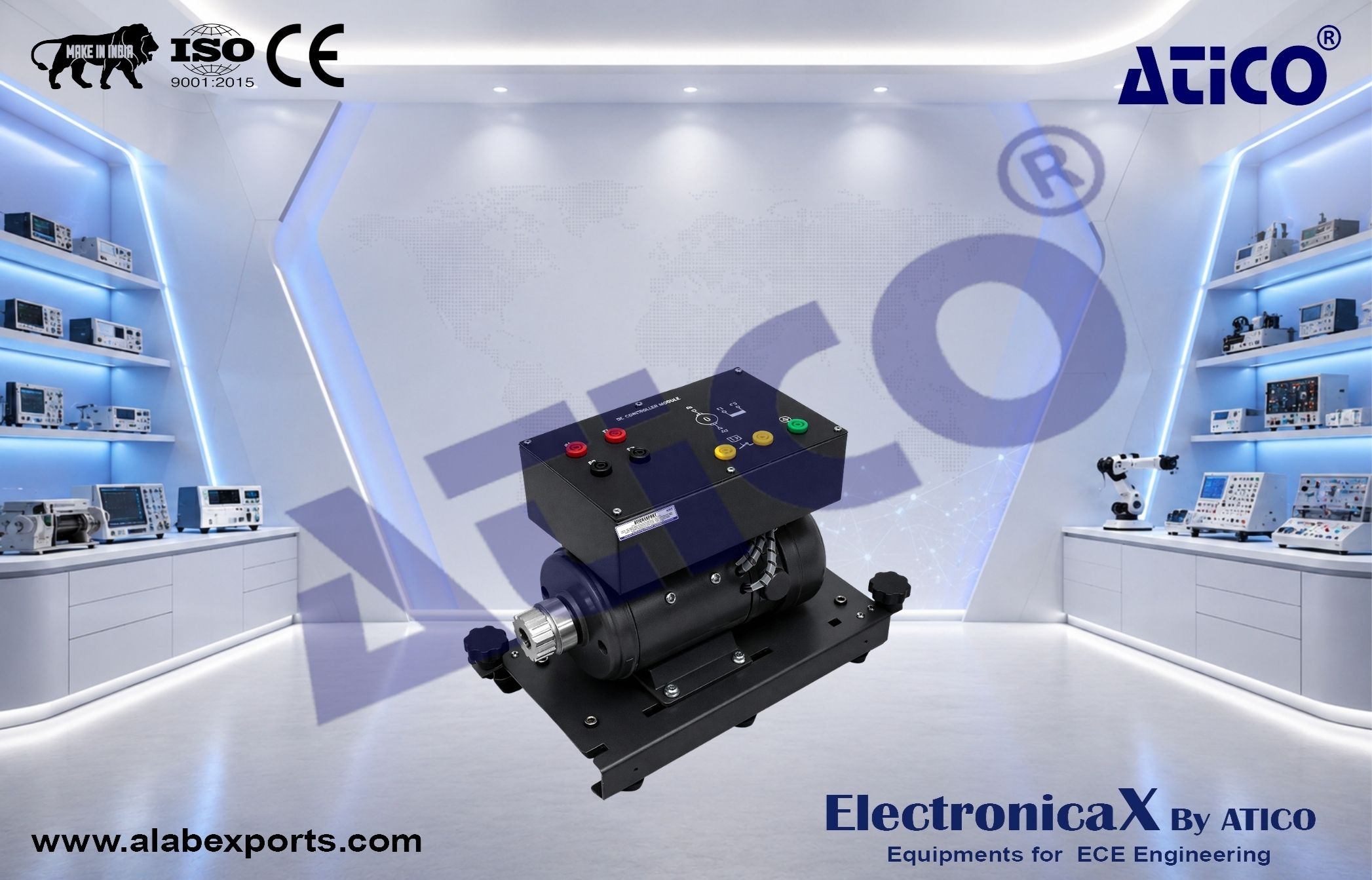

DC GENERATOR BRAKE
- Nominal Power: 370W (1/2HP)
- Nominal Voltage: 220VDC
- Nominal Current: 2.0A
- Nominal Speed: 1500 rpm
- Terminals: 4mm Safety Socket
- Cooling Method: Self Cooling
- Base Plate: Attachable To Break Load Unit
THREE PHASE AC GENERATOR BRAKE
- Nominal Power: 750W (1HP)
- Nominal Voltage: 240/415AC
- Nominal Current: 2.5A
- Nominal Speed: 1500 rpm
- Frequency: 50 Hz
- Excitation: Permanent Magnet
- Cooling Method: Self Cooling
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Motor Unit
TORQUE SENSOR MODULE
- Motor direct coupling design
- Sensor Type: Noncontact rotation torque transducer
- Max. torque: °10Nm
- Max Rotation speed: 12000rpm
- Torque Output: Frequency
- Speed Output: Frequency
- Connection: Shaft and Coupling
TORQUE MANAGEMENT SOFTWARE
- PC management software
- Data collection the measured data by computer serial port
- Display and save the real-time data
- Transform the saved data to TXT, EXCEL file
- By curve analyses, curve print, trend browse, report generation, report edition and report print
TORQUE SPEED MEASURING MODULE
- Measuring speed: 25 times per second
- Pulse input signal: all kinds of output sensor signal, like NPN, PNP, OC, switches and rotary encoder
- Measurement Frequency: Speed pulse input 0.3Hz
20KHz Torque pulse input 5KHz15KHz can extend to 1Hz~80KHz
- Standard transmitter output
- Optoelectronic isolation
- Two 4mA~20mA DC current output
- Output resolution ratio: 1/4000 error less than °0.2% F.S. loading capacity: 240VDC
- External Power Supply: °15VDC or more than 300mA communication port as standard
- Serial communication port as standard
- Optoelectronic isolation
- RS232 default setting or RS485 optional
AC/DC GENERATOR BRAKE CONTROLLER
- Modular design
- Suitable for all type of AC and DC Generator Brake up to 2HP
- Measurement Range: 0% to 100%
- Protection: Fuse
- Unit Type: Panel H2
- Terminals: 4mm Safety Sockets
SHUNT FIELD RHEOSTAT
- Modular design
- Resistance: 0 ~ 2200° Adjustable
- Current: 1.5A
- Rated Power: 300W
- Protection: Fuse
- Terminals: 4mm safety sockets
SINGLE PHASE TRANSFORMER
- Rated Transformer
- Transformer rating: 150VA
- Input 1: 240V
- Output 1: 120V
- Transformer 2: 150VA
- Output 2: 240V
- Power: 300VA
- Frequency: 50Hz
- Terminals: 4mm Safety Socket
- Unit Type: Panel H1
THREE PHASE TRANSFORMER
-
Each primary and secondary windings are divided in two sections to allow many possibilities of connection including star, delta and zig-zag
-
Primary Voltage: Three Phase 415V (3x2x207.50V)
-
Secondary Voltage: Three Phase 240V (3x2x120V)
-
Power: 1000VA
-
Frequency: 50Hz
-
Terminals: 4mm Safety Socket
-
Unit Type: Panel H1
RESISTIVE LOAD UNIT
- Single & Three phase Resistive Load 7 steps variable per phase
- Max Power: 3x100 watt
- Voltage: 240/415 Volt
- Frequency: 50Hz
- Protection: Fuse
INDUCTIVE LOAD UNIT
- Single-Three phase Inductive Load 7 steps variable per phase
- Max Power: 3x100 VAR
- Voltage: 240/415 Volt
- Frequency: 50Hz
- Protection: Fuse

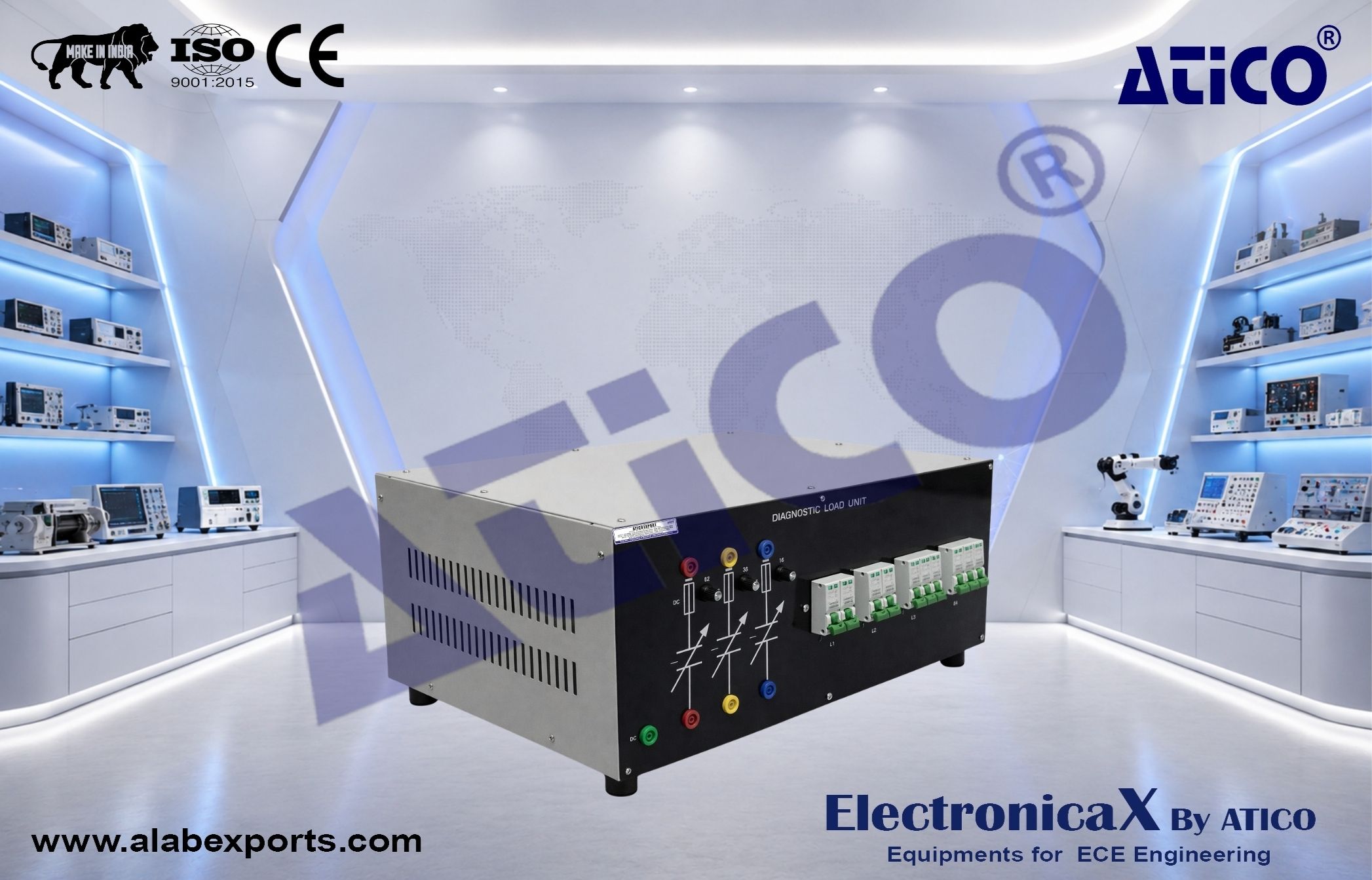

CAPACITIVE LOAD UNIT
- Single & Three phase Capacitive Load 7 steps variable per phase
- Max Power: 3x100 VAR
- Voltage: 240/415 Volt
- Frequency: 50Hz
- Protection: Fuse
REACTIVE COMPENSATOR
- Modular design
- Capacitors: 2°F / 450V x 3
- 3°F / 450V x 3
- Terminals: 4 mm safety sockets
DIGITAL DC VOLTMETER
- Modular design
- Measurement range: DC 0 ~ 600V
- Display: 3 ° digits 14.2 mm LED
- Accuracy: ° 0.2% ° 1 digit
- Resolution: 1V
- Input impedance: 1 M°
- Power source: 220VAC, 50/60 Hz
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
DIGITAL DC AMMETER
- Modular design
- Measurement range: DC 0 ~ 5A
- Display: 3 ° digits 14.2 mm LED
- Accuracy: ° 0.3% ° 1 digit
- Resolution: 0.01A
- Input impedance: < 0.1°
- Power source: 220VAC, 50/60 Hz
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
THREE PHASE POWER QUALITY METER
- Display Type: HD LCD Display
- Real-Time Measurement
- Phase voltage: V1, V2, V3
- Line voltage: V12, V23, V31
- Phase current: I1, I2, I3
- Power: per phase and total active power and total reactive power
- Energy and Demand
- Four quadrant active energy: Import, Export, Total
- Net Four quadrant reactive energy
POWER MANAGEMENT SOFTWARE
- PC management software; web browse data
- True-RMS measuring parameters
- ANSI and IEC 0.2 accuracy class
- Power quality analysis
- 4 quadrant energy
- Data logging
- Measure individual harmonics from 2nd to 49th
- TOU, 4 Tariffs, 6 Seasons, 6 Schedules
MOTOR COUPLING SLEEVE & SAFETY GUARD
- Motor Coupling EM-21-CS for each Motors and Generator (17 units)
- Coupling sleeve (2 units) for mechanical connection of two Electrical Machines
- Coupling guard (2 Units)
- Material: Epoxy Coated Plate
- Attachable guard for protection against contact with electrical machines rotating parts
TACHOMETER
- Range: 5 to 99,999 RPM
- Resolution:
- 0.1RPM <1000RPM
- 1RPM >1000RPM
- Display: 5 digits (0.4") LCD
- Accuracy: ° (0.05%+1 digits)
- Photo Detection Distance: 50 to 150mm
- Battery: 1.5V AA x 4 pcs
- Memory: Last Value, Max. Value, Min. Value
- Size: 190 x 72 x 37 mm
- Weight: 250g
CONNECTING SAFETY TEST LEAD SET WITH BRIDGING PLUG SET
- The set consists of 2 type lead set and 2 type bridging plug set in 5 different coded colors and lengths chosen to allow the realization of all experiment manual
- Leads are capable of 15A current safety plugs
- Safety terminal socket (4mm):
- 25cm x 15 units
- 50cm x 20 units
- 100cm x 15 units
- 19mm Bridging Plug Set x 10 units
STAR DELTA STARTING SWITCH MODULE
- Modular design
- Switch load: 400VAC/15A
- Switch positions: 0-1-2 (0-Y-°)
- Unit Type: Panel H1
- Terminals: 4 mm safety sockets
ROTATION REVERSING SWITCH MODULE
- Modular Design
- Switch Load: 400VAC/15A
- Switch positions: FORWARD-OFF-REVERSE
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
POWER DRIVE - SOFT STARTERS MODULE
- Modular Design
- Connection: TP+N
- Soft Starter: 2 Phase-Controlled 3 °, 415V
- Power Rating: 3HP, 4.8A, Ue=110-230V AC/DC
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
AC VARIABLE FREQUENCY DRIVE
- Type: 1.5KW (2 HP)
- Power Supply: Single phase 240V, 50Hz
- Power Terminals: R, S, T terminals
- Inverter Output: U, V, W
- Braking Resistor Terminals: P & B
- Panel Control Start/Stop, FWD and REV
- Terminal Control Start/Stop, FWD and REV
- Signal Input: 0-10V
- Digital Input: 5
- Analog Output: 4-20mA & AO
- Relay Output: RA, RB, RC
- Terminals: 4mm Safety Sockets
PUSH BUTTON SWITCH MODULE (I)
Modular Design
- Push Button Switch 1 (NCx1, NOx1)
- Push Button Switch 2 (NCx1, NOx1)
- Push Button Switch 3 (NCx2)
- Push Button Switch 4 (NCx2)
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
PUSH BUTTON SWITCH MODULE (II)
Modular Design
- Connection: SP+N
- Push Button Switch 1 (NCx1, NOx1)
- Push Button Switch 2 (NCx1, NOx1)
- Push Button Switch 3 (NCx2)
- Push Button Switch 4 (NCx2)
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
EXPERIMENTAL TABLE
- Workbench Table Top
- Material: Compressed Board
Dimension:
- Thickness: 25mm
- Length: 1500mm
- Width: 800mm
- Height: 800mm
Support Structure
-
Material: 2 x 2 Hollow Steel Epoxy Coated
-
Thickness: 2mm
-
Lower Cabinet with 3 Storage Drawers with center lock
-
Castor Wheels (Front With Lock)
EXPERIMENT PANEL FRAME
- Din Standard 44 With Two Shelves
- Side Frame: T Shape
- Horizontal U-Bar: Top and Bottom
- Horizontal H-Bar: Centre
- Material: 2mm Thickness Steel Epoxy Coated
Dimension :
- Length: 1450mm
- Width: 20mm
- Height: 300mm
- Two Location: Left & Right
- 7 Slots for 4mm Stackable Safety Test Lead Sets
