ELECTRICAL RESISTANCE STRAIN GAUGE

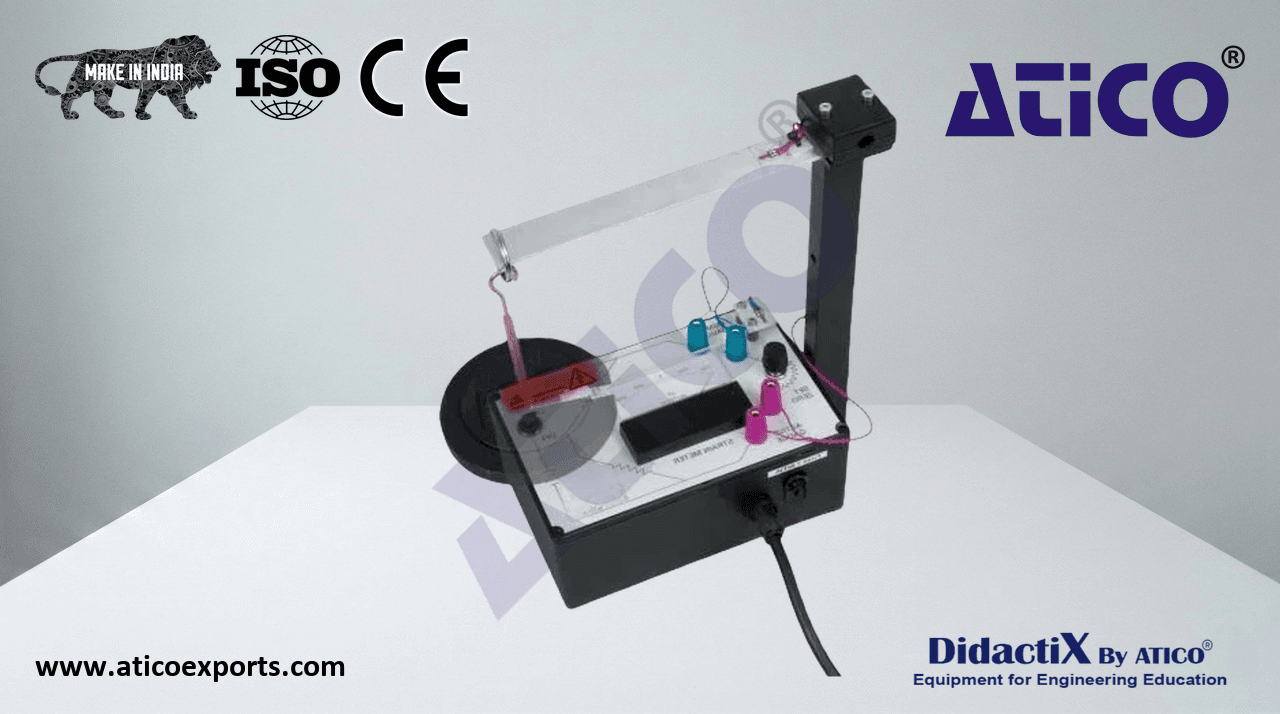

This apparatus illustrates the basic features of electrical resistance strain gauges and their application in measuring bending and torsion. A cantilever has a single gauge bonded onto its surface, with an identical gauge fixed to an unstressed piece of the same material for temperature compensation. The two gauges form part of a Wheatstone bridge with a balancing potentiometer, whose meter is calibrated directly in microstrains. Learn about ELECTRICAL RESISTANCE STRAIN GAUGE suppliers for optimal educational outcomes.. The cantilever is loaded by a hanger and calibrated weights hung from its free end. A torsion bar is also supplied with two gauges bonded orthogonally at 45°. Learn about ELECTRICAL RESISTANCE STRAIN GAUGE for educational labs for optimal educational outcomes.. A detailed label on the unit shows the Wheatstone bridge arrangement and how the specimen strain gauges connect into the circuit.

• Cantilever specimen: 229(L) × 25.4(W) × 3.175(t) mm; aluminium
• Torsion tube: Ø9.52mm O.D × 1.62mm wall thickness; aluminium
• Strain gauge resistance: 120Ω nominal
• Strain meter reading: in microstrain (με)
• Wheatstone bridge arrangement with balancing potentiometers
• Integral power supply: universal 15V
