Not a modular system:

• Circuit elements are not restricted to fixed configurations
• Components can be freely arranged on a 35 × 27 cm circuit grid board
• Connections are made using flexible leads
• Students can build circuits from diagrams in their own preferred layout

Component modules are open at the bottom:

• Modules are made of durable, unbreakable plastic
• Open-bottom design allows clear view of components and wiring
• High-quality soldering is visible for better understanding
• Flexible leads with safety plugs ensure reliable connections
• Complex circuits remain easy to understand on the grid board

No need at all to plug in:

• All experiments can be performed using battery holders with three AA batteries
• Eliminates the need for mains power
• Ensures safety and prevents overloading

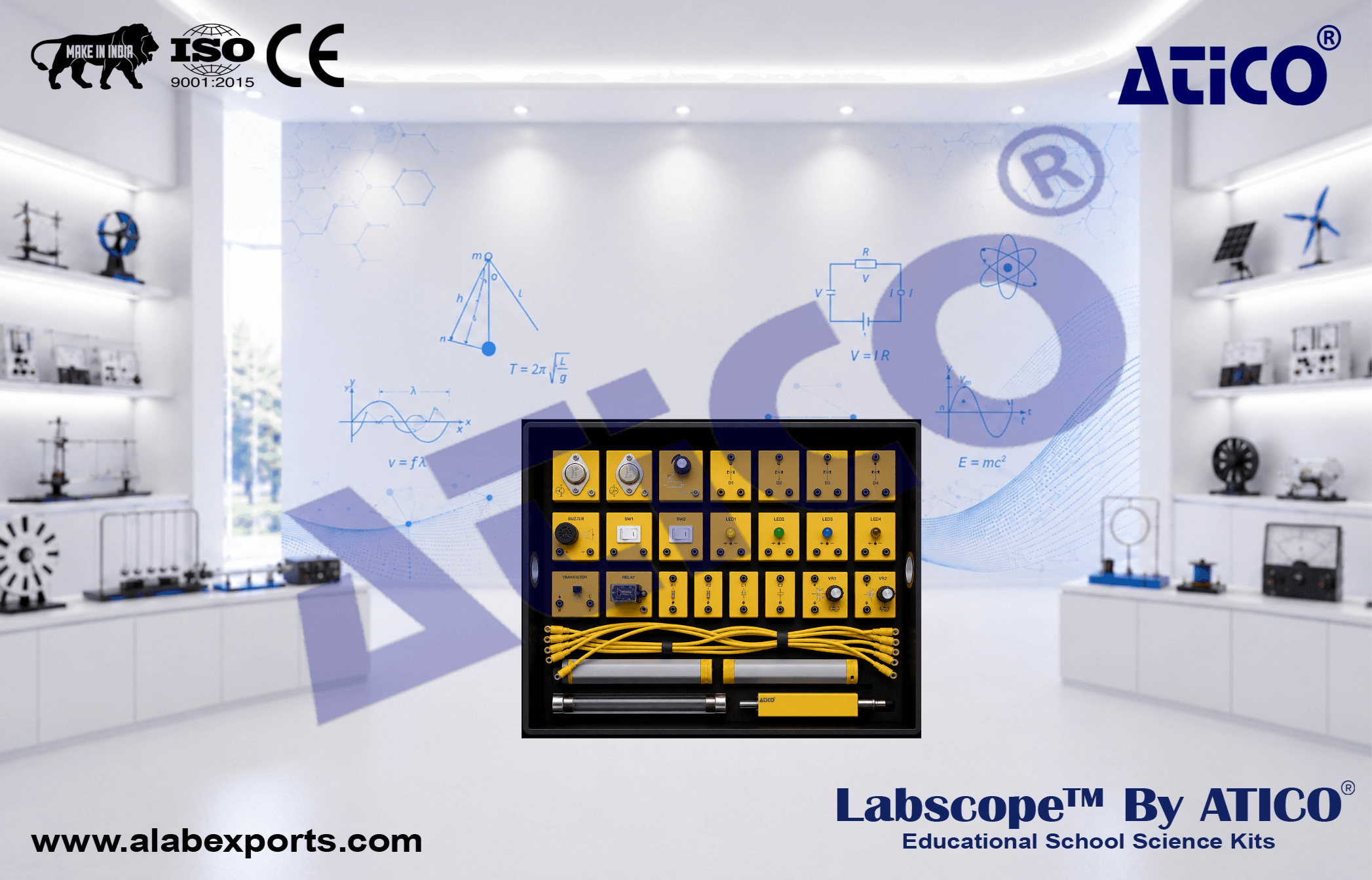

Included items:

• 1 × Storage box
• 1 × Inlay with cut-outs for E7
• 1 × Base plate E7
• 2 × Battery holder with 3 AA batteries
• 4 × Coupling E7
• 2 × Element light bulb E7
• 2 × Element switch
• 1 × Element potentiometer
• 2 × Element transistor E7
• 1 × Element LDR (light-dependent resistor)
• 1 × Element resistor 100 Ω
• 1 × Element operational amplifier
• 1 × Element red LED
• 2 × Element capacitor
• 2 × Short-circuit plug E7
• 1 × Element Si-diode
• 1 × Element Ge-diode
• 1 × Element Z-diode
• 2 × Experimentation cable 8.5 cm
• 2 × Experimentation cable 17 cm
• 4 × Experimentation cable 34 cm blue
• 1 × Element buzzer
• 1 × Element loudspeaker
• 1 × Element microphone
• 2 × Element resistor 1 kΩ
• 2 × Element resistor 5 kΩ
• 2 × Element resistor 10 kΩ
• 4 × Short-circuit jumper
• 1 × Ruler

Additionally required:

• 2 Multimeter AMM 3000

Experiments:

• Potentiometer circuits
• Light-dependent resistors (LDRs)
• Characteristics of germanium and silicon diodes
• “Magic” circuits using diodes
• Light-emitting diodes (LEDs)
• Zener diodes
• UBE-IC characteristic (base-emitter voltage to collector current) of a transistor
• Use of transistors for switching
• Base-collector current characteristic of a transistor
• Use of transistors for amplification
• Touch switches
• Voltage across a capacitor
• Multivibrators
• Voltage characteristic of an operational amplifier (op-amp)
• Amplification of small currents
