Electromagnetics comprehensive Physics Lab Experiment Setup by ATICO EXPORT

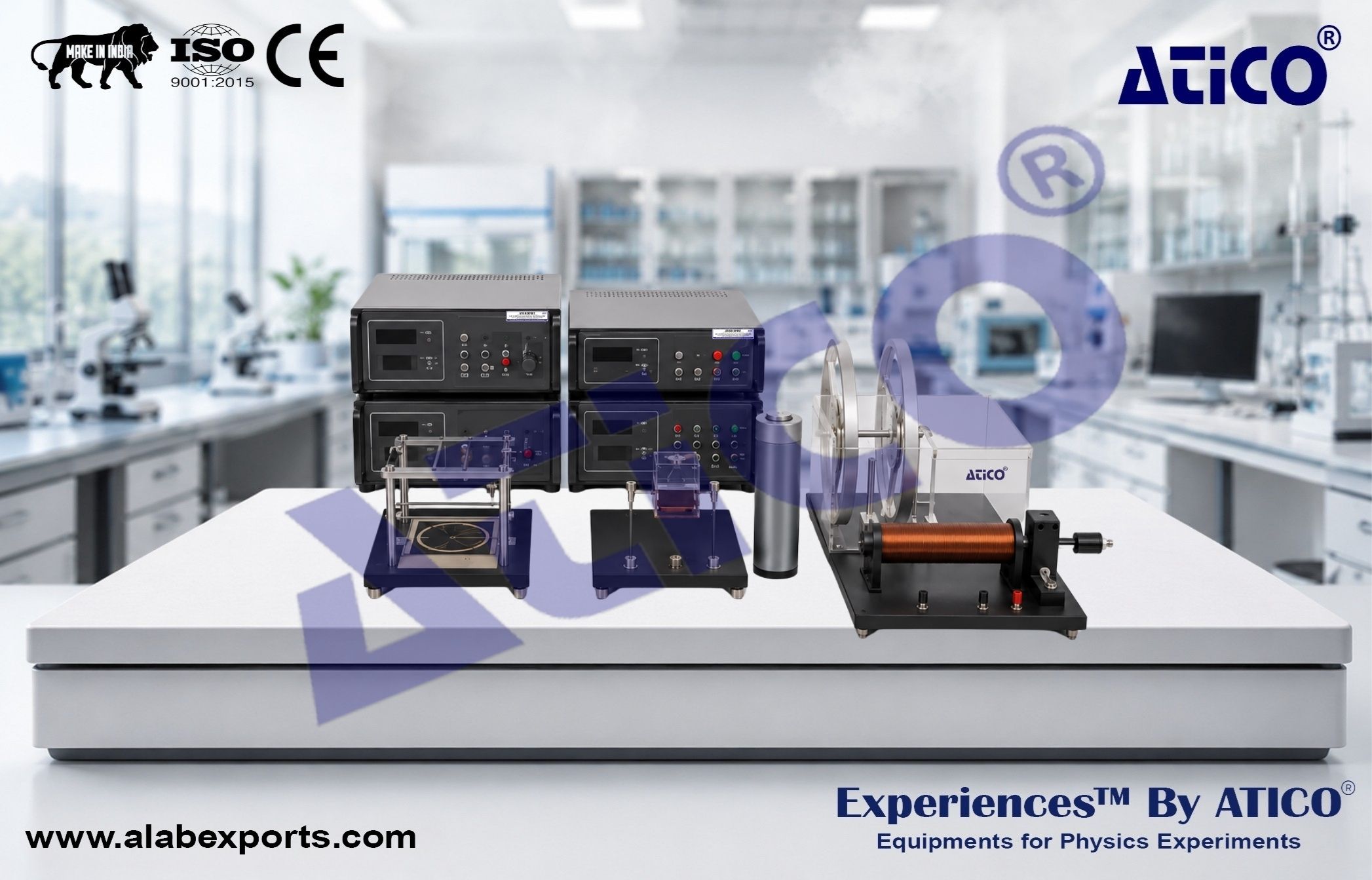

This experiment system is designed for university-level physics and electronics laboratories, integrating a wide range of experiments in electrical circuits, electromagnetism, temperature measurement, sensors, and electronic instrumentation. The system combines theoretical learning with practical experimentation, providing a comprehensive platform for studying fundamental electrical and electronic principles.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Current Divider and Voltage Divider Circuits
• Resistance Measurement Using the Voltmeter-Ammeter Method
• Thermocouple Calibration
• Study of Semiconductor Thermistor Characteristics
• Measurement of Volt-Ampere Characteristics of Nonlinear Resistances
• Determination of the Temperature Coefficient of Resistance of Metals
• Multimeter Design and Development
• Electrostatic Field Mapping
• Magnetic Field Mapping
• Oscilloscope Applications and Measurement Techniques
• Measurement of Temperature Characteristics Using Integrated Temperature Sensors
• Measurement of Magnetic Field Distribution Inside and Outside a Solenoid
• Study of PN Junction Forward Voltage Drop Versus Temperature
• Investigation of Solar Cell Characteristics
• Study of Magnetic Hysteresis Loops
• Analysis of LRC Transient Processes
• Investigation of LRC Steady-State Characteristics
• Study of LRC Resonance Characteristics
• Resistance Thermometer and Unbalanced DC Bridge Experiments
• Investigation of Pressure Sensor Characteristics
• Design of PN Junction Digital Thermometers
• Design of Thermocouple Digital Thermometers

Temperature Source :

• Temperature Control Range: -10.0°C to 120.0°C
• Arbitrary Selection
• 3½-Digit Digital Display
• Stability: ±0.1°C
• Measurement Accuracy: ±0.1°C

Digital Thermometer :

• Measurement Range: -50°C to 125°C
• Accuracy: ±0.01°C

Ammeter :

• Digital
• Ranges: 0–999 A
• 0–199.9 mA
• 0–19.99 mA
• 0–1.999 mA
• 3½-Digit Display

Fixed Power Supply :

• ±12 V (0.5 A)

Test Bench :

• Steel Structure Laboratory Bench
• Dimensions: 1600 × 800 × 800 mm

DDS Signal Source :

• Frequency Range: 0–100 kHz
• Continuously Adjustable
• Amplitude Vp-p = 12 V
• Six-Digit Frequency Display
• Minimum Resolution: 0.01 Hz
• Sine Wave Output
• Square Wave Output
• Triangle Wave Output

Digital Constant Current Source 1 :

• 0–1.000 A

Digital Constant Current Source 2 :

• 0–1.000 mA

Digital Constant Voltage Source 1 :

• DC 0–22.0 V (2 A)

Digital Constant Voltage Source 2 :

• DC 0–110.0 V (1 A)
