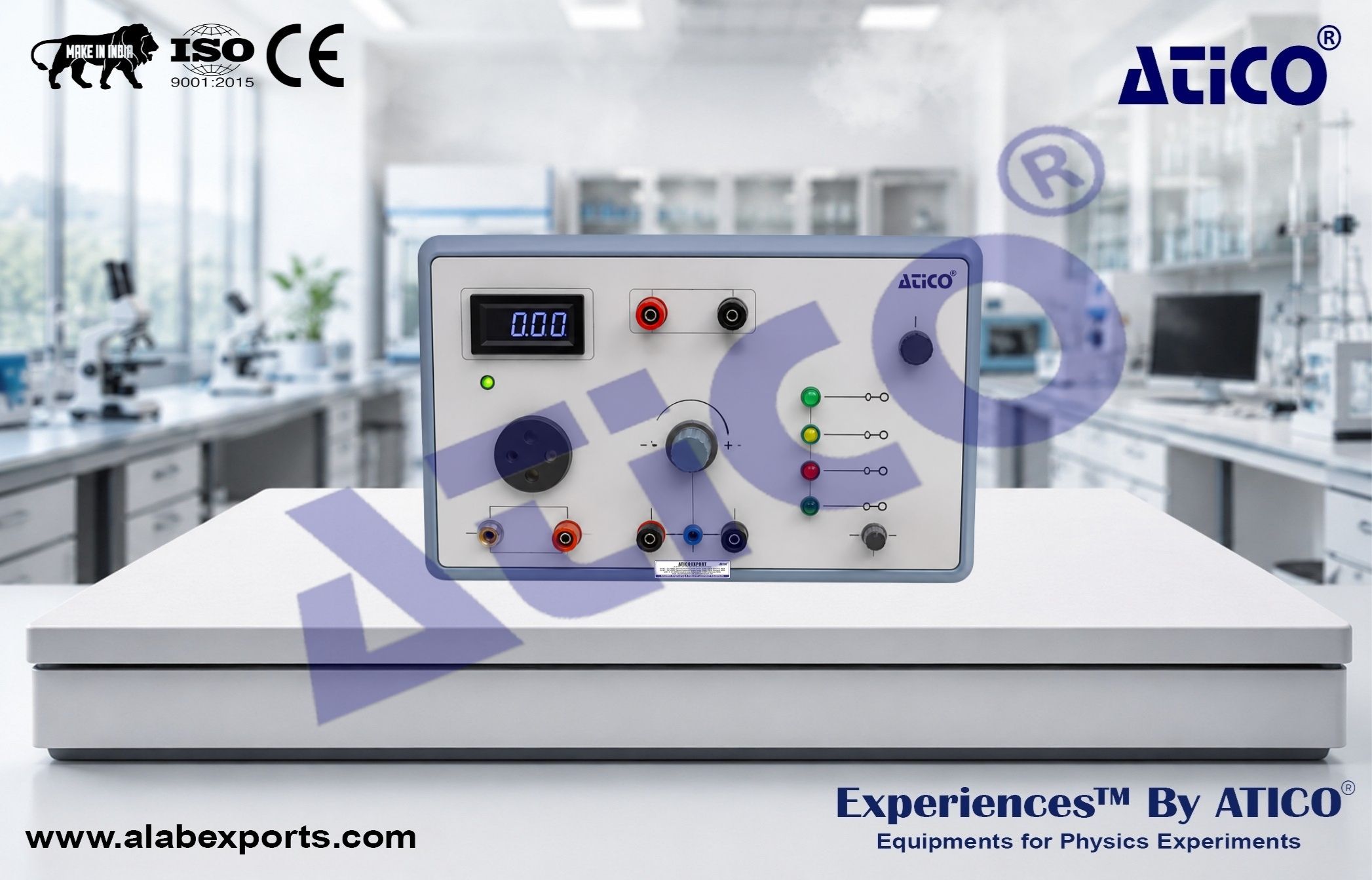

The Energy Band Gap Experiment Complete Set Up is designed for advanced physics laboratories to determine the energy band gap of semiconductor diodes and LEDs. The experiment enables students to study the relationship between temperature and semiconductor conductivity while determining the band gap energy of various semiconductor materials. The setup features a built-in heating system, modular design, and integrated measurement points for accurate and convenient experimentation. Manufactured by Atico Export India.
Objectives :
- Determine the energy band gap of semiconductor diodes
- Determine the energy band gap of LEDs
- Study the effect of temperature on semiconductor characteristics
- Understand the relationship between temperature and electrical conductivity
- Investigate semiconductor energy band theory
Principle :
- At absolute zero temperature, semiconductors behave as insulators. As temperature increases, thermal energy excites electrons, allowing them to overcome the energy gap between the valence band and conduction band. This energy required to break the covalent bonds is known as the energy band gap (Eg). The experiment determines the band gap by analyzing the electrical characteristics of semiconductor devices at different temperatures.
Experiments :
- Determination of the energy band gap of semiconductor diodes
- Determination of the energy band gap of LEDs
- Temperature versus semiconductor characteristics
- Voltage measurement across semiconductor devices
- Semiconductor conduction analysis
- Comparison of different semiconductor materials
Educational Objectives :
- Understand the concept of energy band gap
- Study semiconductor energy band theory
- Investigate the effect of temperature on semiconductor behavior
- Determine the band gap of semiconductor devices experimentally
- Develop practical skills in semiconductor measurements
- Gain hands-on experience with temperature-controlled semiconductor experiments
- Understand the electrical properties of semiconductor materials
