EPICYCLIC GEAR TRAIN

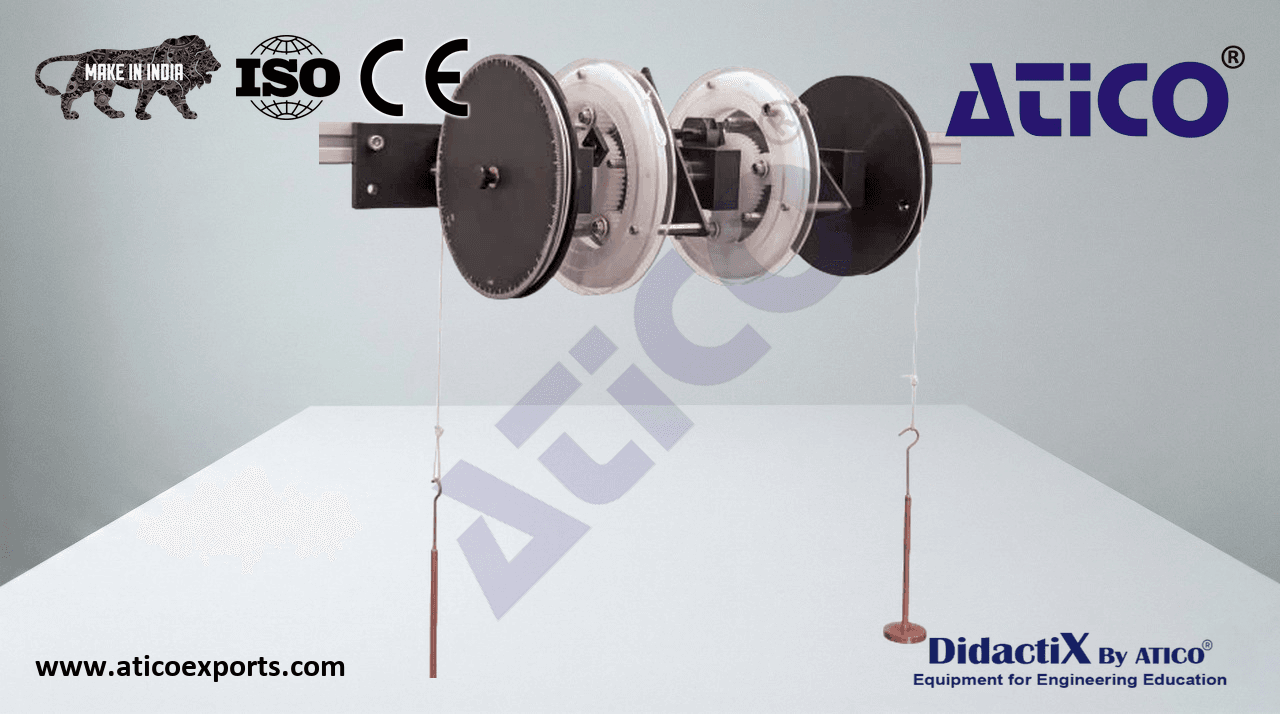

Apparatus consisting of two standard epicyclic gear trains. Each gear train comprises a sun gear, three planet gears, a planet linkage, and an internal (ring) gear. The sun gear, ring gear and planet carrier all rotate about the same axis. Learn about EPICYCLIC GEAR TRAIN equipment for optimal educational outcomes.. Planet gears mesh with both the sun gear and the ring gear. Pulleys fitted with protractors allow torque and velocity ratios to be determined. Learn about EPICYCLIC GEAR TRAIN theory-machines India for optimal educational outcomes..

• Sun Gear: 2 × 48T, 72 PCD, Mod 1
• Planet Gears: 6 × 16T, 24 PCD, Mod 1.5
• Annulus Gear: 2 × 80T, 120 PCD
• Protractors: 2 × 0–360°, 1° increments
• Pulleys: 2 × Ø87.5 mm
