Epicyclic Gear Unit (1 element)

The Epicyclic Gear Unit (1 element), includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.

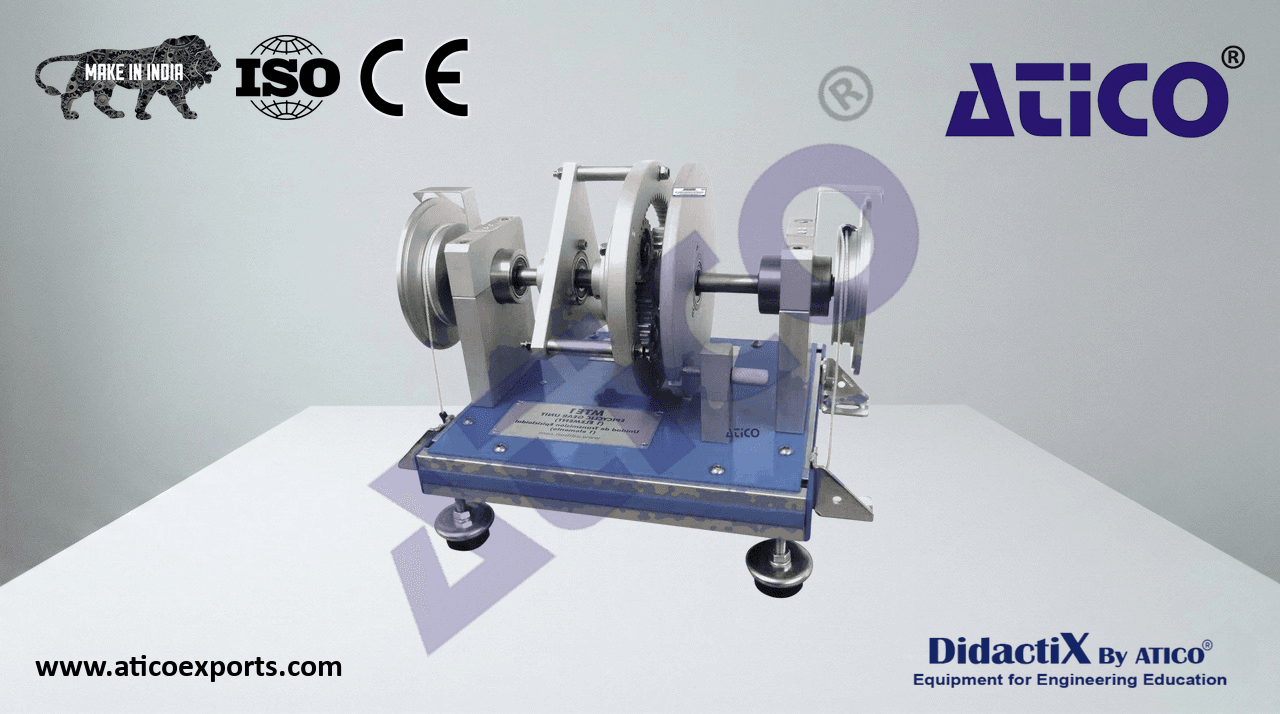

ATENG 12191 — Epicyclic Gear Unit (1 element)

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12191” unit mainly consists of:
• The epicyclic gears set, formed by:
  Sun gear (Z= 21).
  Planet gears set (Z= 21).
  Ring (Z= 63).
  Two graduated discs located at the input and output shafts.
  The shafts of the unit are made in stainless steel. The discs and gears are made in aluminum to
  facilitate the experiments.
  The pinions are made of aluminum and are mounted on ball bearings to reduce of losses due to
  friction, making the practical exercises execution easy.
