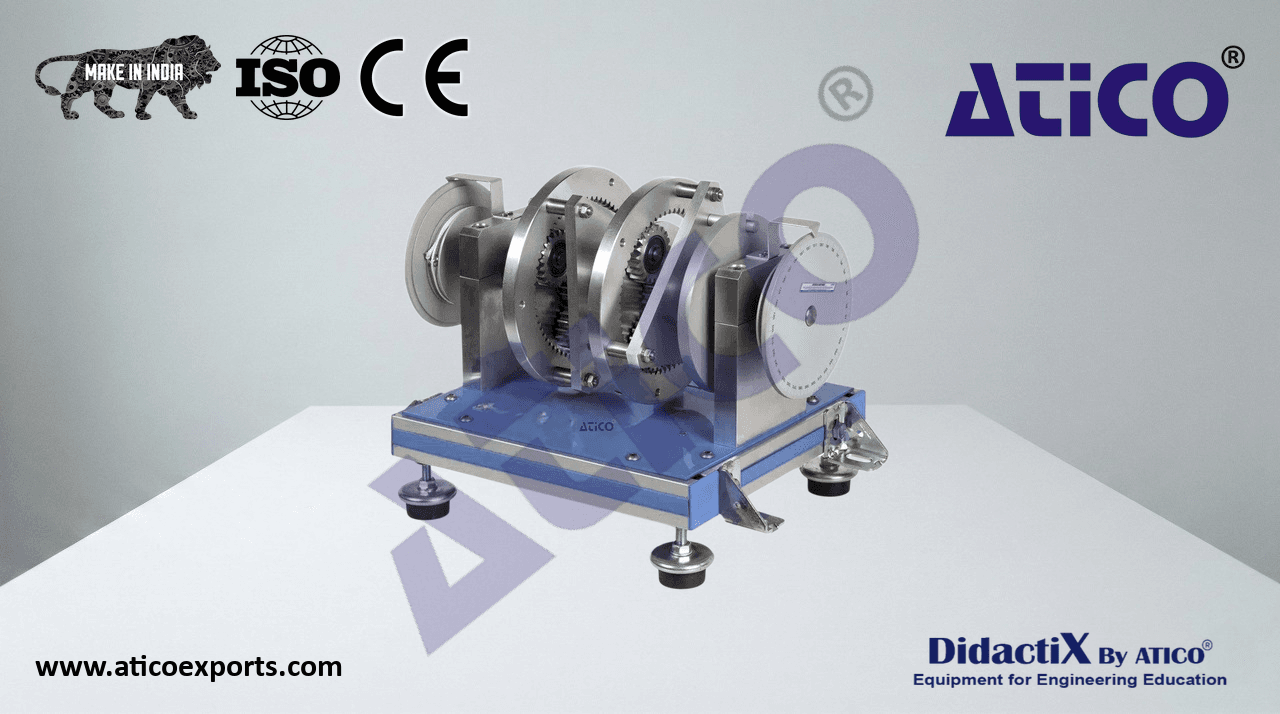

The Epicyclic Gear Unit (2 elements), consists of two coupled epicyclic gears sets.
Technical Specifications
ATENG 12193 — Epicyclic Gear Unit (2 elements)
Bench-top unit with adjustable legs.
Anodized aluminum frame and panels made of painted steel.
The “ATENG 12193” unit mainly consists of:
Two coupled epicyclic gears sets, formed by:
Sun gears.
Satellite gears set.
Common support of the satellites.
External ring.
Two graduated discs located at the input and output shafts.
Different mechanical pins that simulate the pilot valves used to brake the different
ATENG 12193 detail
planetary components.
The shafts of the unit are made in stainless steel. The discs and gears are made in aluminum to facilitate the experiments.
The pinions are made of aluminum and are mounted on ball bearings to reduce of losses due to friction, making the practical exercises
execution easy.
The “ATENG 12193” unit provides three forward speeds.
