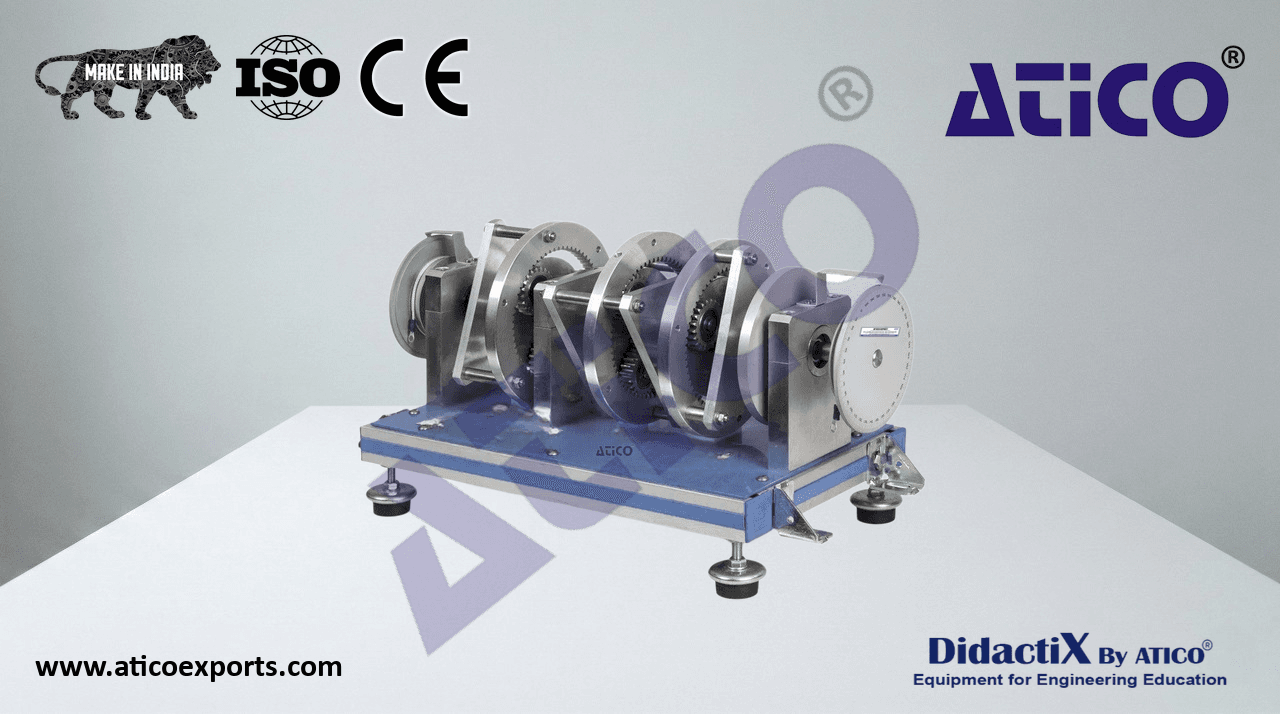

Epicyclic Gear Unit (3 elements)

The Epicyclic Gear Unit (3 elements), consists of three coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.

ATENG 12194 — Epicyclic Gear Unit (3 elements)

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12194” unit mainly consists of:
• Three coupled epicyclic gear sets, formed by:
  Sun gears.
  Satellite gears set.
  Common support of the satellites.
  External ring.
  Two graduated discs located at the input and output shafts.
  Different mechanical pins that simulate the pilot valves used to brake the different planetary components.
  The shafts of the unit are made in stainless steel. The discs and gears are made in aluminum to facilitate
  the experiments.
  The pinions are made of aluminum and are mounted on ball bearings to reduce of losses due to friction,
  making the practical exercises execution easy. ATENG 12194 detail
  The “ATENG 12194” unit provides three forward speeds and a one reverse speed.
