Equilibrium of a Simply Supported Beam (Next Generation Structures)

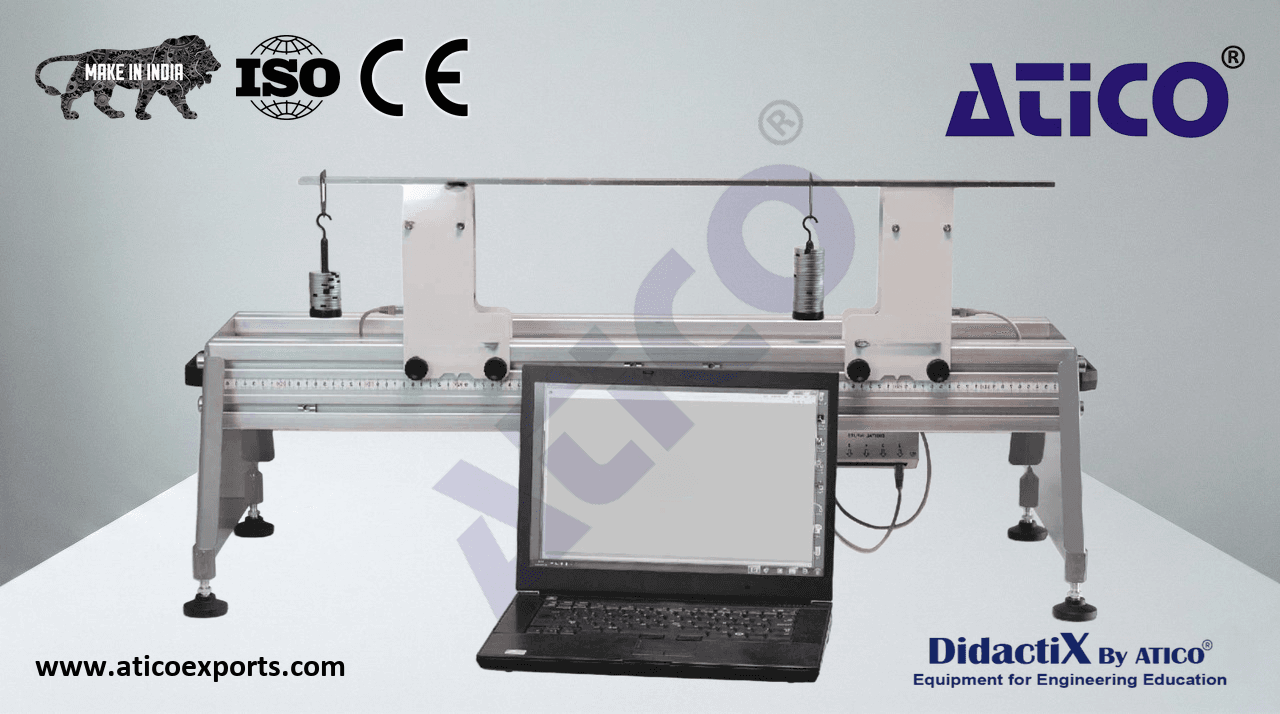

Experiment for the study of the characteristics of a simply supported beam. Mounts on the Structures platform and connects to the Structures automatic data acquisition unit and software.

One of a range of experiment modules that fit to the Structures platform (available separately), this product helps students to understand the reaction forces due to loads on a simply supported beam 'bridge'. Students add loads to a rigid beam resting on two 'simple' supports. Load cells measure the vertical reactions at the supports. Learn about Equilibrium of a Simply Supported Beam (Next Generation Structures) suppliers for optimal educational outcomes.. Each support includes pointers that work with the scale on the platform for accurate positioning. Students apply loads to any position along the beam and measure the resulting reactions. Learn about Equilibrium of a Simply Supported Beam (Next Generation Structures) exporters for optimal educational outcomes.. They use textbook beam equations to predict the reaction for any given load and compare the calculated results with the measured results. This helps confirm the reliability of the textbook equations and the accuracy of the experiment results. Learn about Equilibrium of a Simply Supported Beam (Next Generation Structures) price for optimal educational outcomes.. This product includes additional masses to allow students to create uniformly distributed loads (UDLs) on the beam. The load cells connect to the USB interface hub of the Structures platform for computer display and data acquisition. Learn about Equilibrium of a Simply Supported Beam (Next Generation Structures) equipment for optimal educational outcomes..
