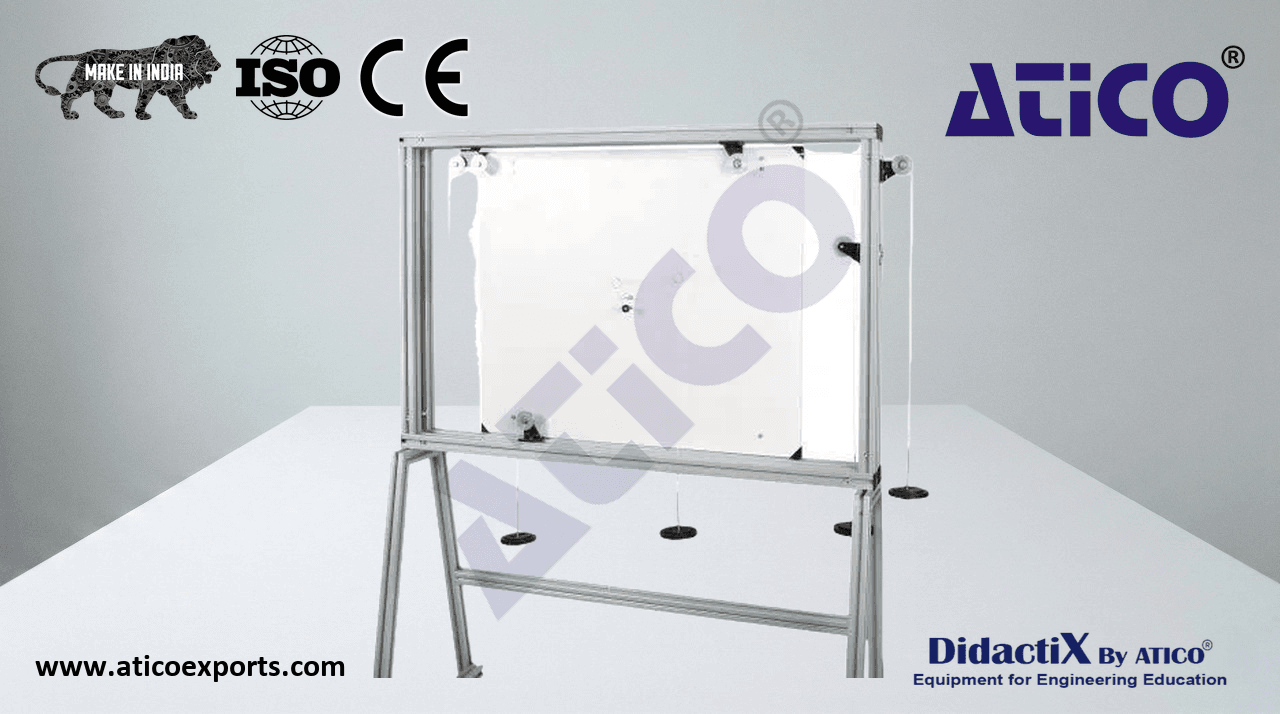

EQUILIBRIUM OF FORCES

A kit for use with the work panel for experiments with three or more coplanar forces at equilibrium and an introduction to Bow's notation.

For use with the Work Panel, the kit allows several experiments with forces pulling on one or more points at different angles. Students or teachers fit the magnetic parts of the kit to the Work Panel to study or demonstrate three coplanar concurrent forces (triangle of forces) or more (force polygons).

• Force board: 900 (L) × 750 (H) mm
• Graduated scales: 50 mm intervals
• Load hangers: 6
• Double pulley assemblies: 2
• Single pulley assemblies: 5
• Clips: 4
• Weights set: 6 × 2 N, 2 × 5 N, 4 × 10 N, 2 × 20 N
