Equilibrium of moments on pulleys

Model: AE00511Category: Engineering Mechanics Lab Trainers

Need Help?

Applications

This experimental unit illustrates the laws for forming the equilibrium of moments in static systems. The relations between wheel diameter, moment and circumferential force are demonstrated.

Technical Specifications

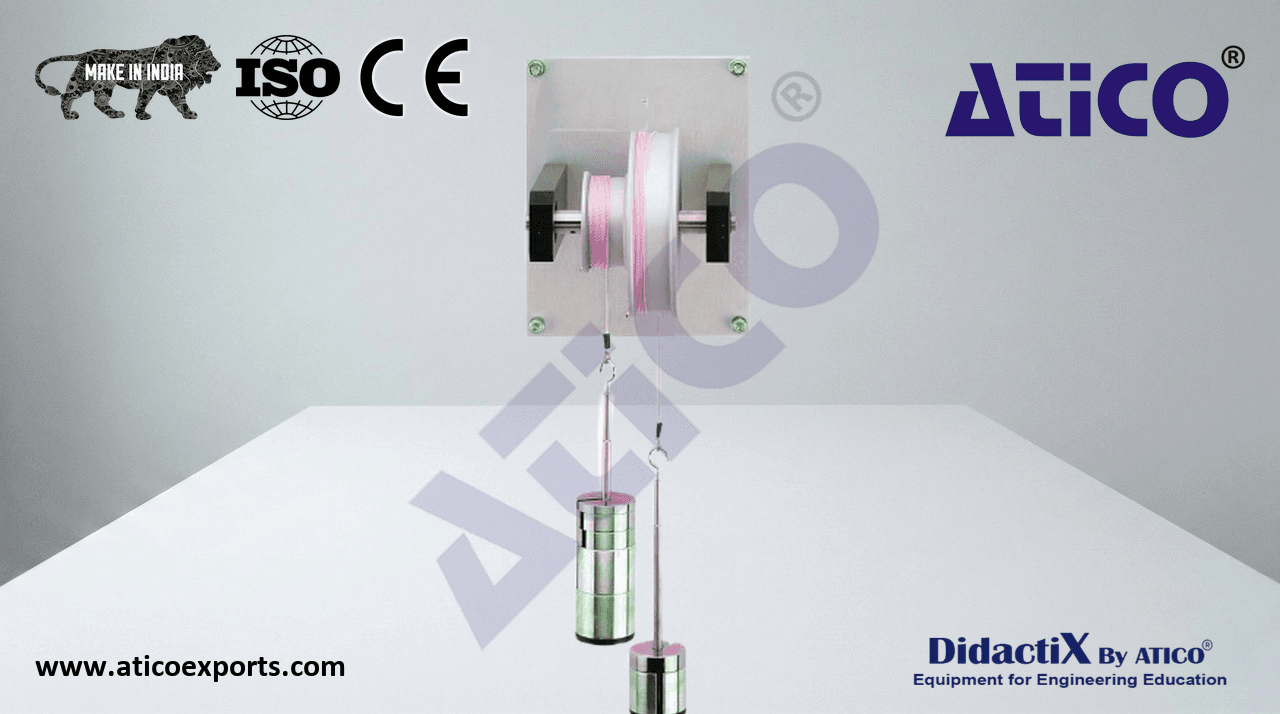

investigation of the equilibrium of moments on two pulleys
anodised aluminium pulleys
ball bearing-mounted steel shaft
storage system for parts
bracket for wall mounting
