Euler Buckling Modes Unit Deluxe

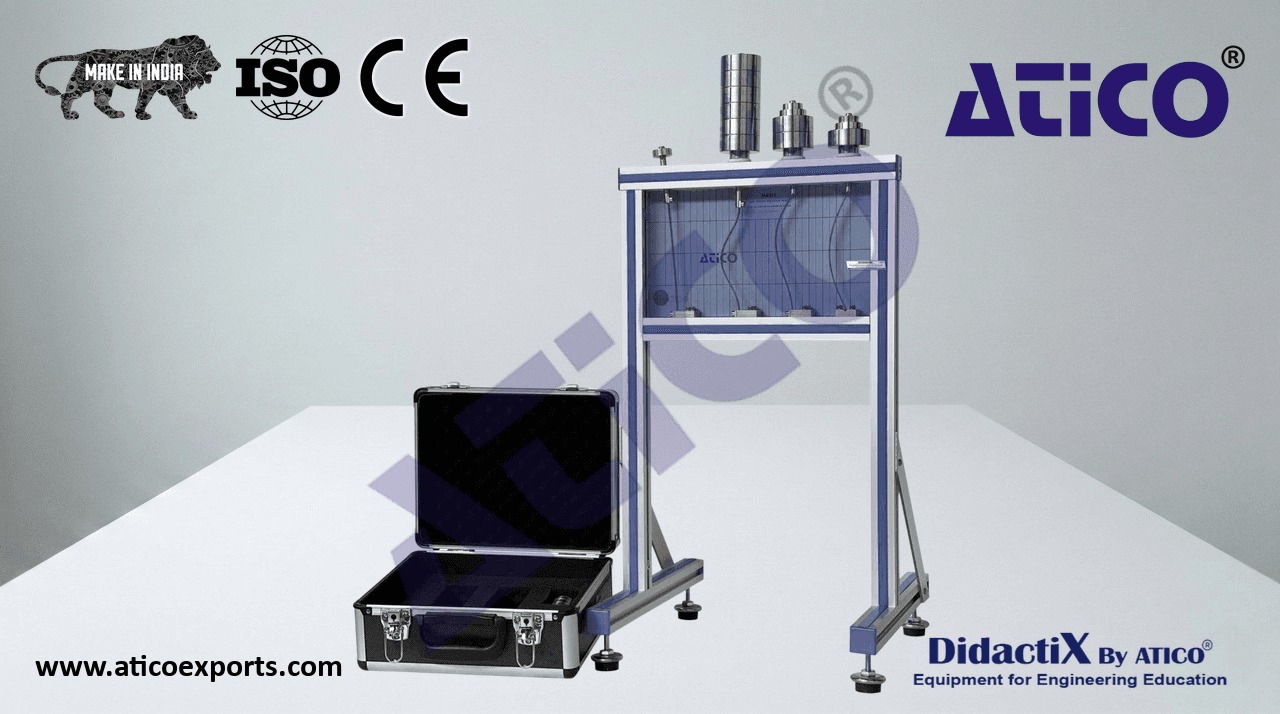

The Euler Buckling Modes Unit, allows the visualization of the four Euler buckling cases of an elastic bar with the four forms of support and to study the relationship between the buckling length, critical load and the different forms of support.

ATENG 12235 — Euler Buckling Modes Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12235” unit is mainly composed of:
  Support frame for the test bars.
  Grid on the rear wall to facilitate the measurement of the buckling length.
  Fixed and pinned end supports.
• Four elastic bars:
• Length: 180 mm.
• Cross-section: 0.5 x 10 mm.
• Material: Steel. ATENG 12235 detail
• Weights:
  Ten weights of 500 gr.
  Five weights of 100 gr.
  Four weights of 50 gr.
  Storage case.
