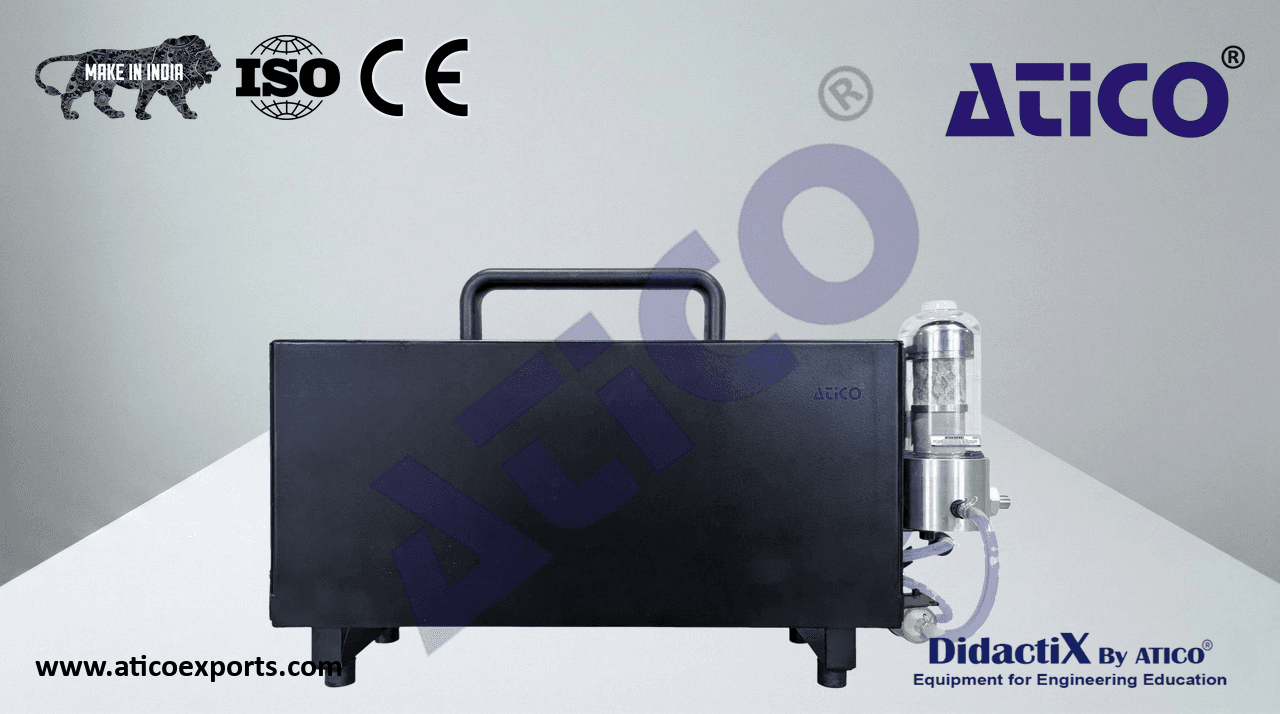

Exhaust Gas Analyzer Deluxe

The Exhaust Gas Analyzer, allows to measure reliably the different gaseous polluting agents concentration, which are emitted to the atmosphere by a focus.

ATENG 12931 — Exhaust Gas Analyzer

• Measurements:
  Carbon monoxide, CO (%).
  Carbon dioxide, CO (%).
  HC gasoline, propane, methane (ppm).
  ₂
  Oxygen, O (%).
  Carbon monoxide adjusted (%).
  ₂
  Lambda factor.
  Oil temperature.
• Technical data:
• Power supply: 115/230 VAC - 50/60 Hz - 68 W.
• Measure time: 12 seconds (max.).
• Warm-up time: 6 minutes (from 25° C).
• Working temperature: from +2 °C to +40 °C.
• Humidity: 95 % max. (non-condensing).
• Pressure: 800 - 1060 mbar.
• CO (+/- 0.02 % abs +/- 3 % rel): from 0 to 15 %.
• CO (+/- 0.3 % abs +/- 3 % rel): from 0 to 20 %.
• HCg (+/- 4 ppm abs +/- 3 % rel): from 0 to 15000 ppm vol.
  ₂
• HCp (+/- 8 ppm abs +/- 3 % rel): from 0 to 30000 ppm vol.
• O (+/- 0.1 % abs +/- 5 % rel): from 0 to 25 %.
• COc (+/- 1 % abs +/- 3 % rel): from 0 to 20 %.
  ₂
• Lambda: from 0 to 9.999 rmp.
• Oil temperature: 0 - 200 °C.
• Sample gas tube length: 6 m approx.
• Sample gas tube diameter: 5 mm approx.
  USB wire to computer.
  Control software.
