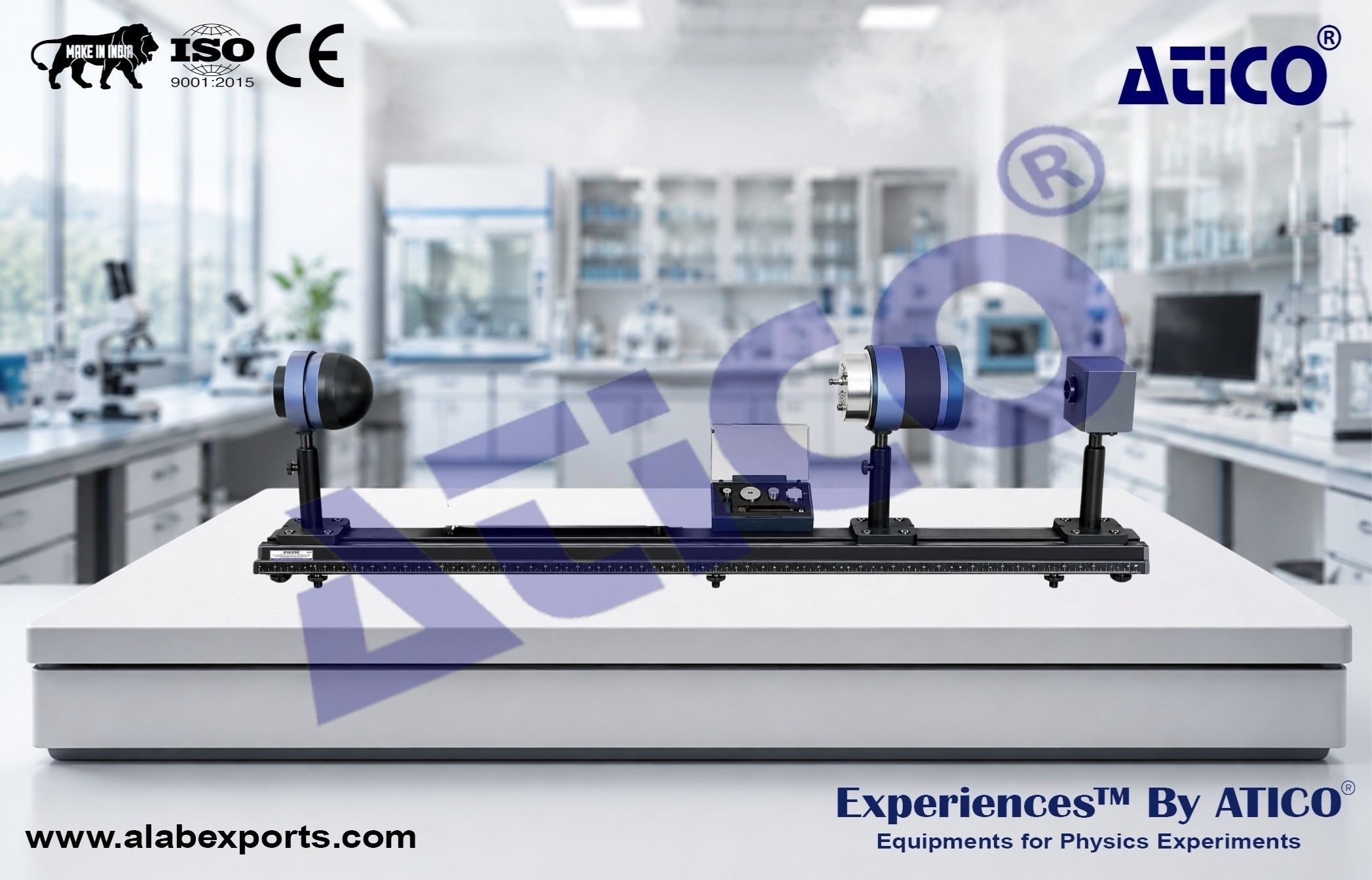

Experimental Apparatus of Thermal Radiation and Infrared Thermography Optics Educational Kits

The Experimental Apparatus of Thermal Radiation and Infrared Thermography Optics Educational Kits is a comprehensive educational system designed for the study of thermal radiation, emissivity, infrared imaging, and heat transfer phenomena. The apparatus combines a blackbody emitter, sample furnace, infrared thermal imager, and intelligent control system to provide a practical platform for investigating the laws of thermal radiation. Students can observe thermal radiation processes directly, measure radiative power, study the influence of temperature and distance on radiation intensity, and analyze the emissivity and transmissivity of different materials. The integrated infrared imaging system converts thermal radiation into visual images, allowing real-time observation of temperature distributions and radiation characteristics. The system supports both quantitative measurements and qualitative observations, helping users develop a strong understanding of thermodynamics, thermal physics, infrared technology, and material properties through hands-on experimentation. Physics Lab Experiments from Atico Exports.

Experiments :

• Study the Effect of Blackbody Temperature on Radiative Power
• Investigate the Relationship Between Radiation Intensity and Distance
• Plot the Relationship Between Radiative Energy and Wavelength Based on Wien’s Displacement Law
• Measure the Transmittance of Thermal Radiation Through Different Media
• Measure the Emissivity of Various Samples and Analyze Surface Effects
• Observe Thermal Images of Different Heat Sources and Study Their Radiation Characteristics

Blackbody Emitter :

Body Material :

• Aluminum Alloy

Hemispherical Diameter :

• 100 mm

Surface Finish :

• Black Sandblasted Surface

Heater Type :

• PTC Flat Plate Heater

Operating Voltage :

• AC 24 V

Temperature Control :

• Integrated Temperature Sensor

Cooling System :

• Built-In Cooling Fan

Sample Furnace :

Body Material :

• Aluminum Alloy

Diameter :

• 100 mm

Sample Capacity :

• 4 Sample Slots with Removable Cover

Heater Type :

• PTC Flat Plate Heater

Operating Voltage :

• AC 24 V

Temperature Sensors :

• 5 Total (1 Control Sensor + 4 Sample Sensors)

Cooling System :

• Built-In Cooling Fan

Infrared Thermal Imager :

Infrared Array Resolution :

• 80 × 62 Pixels

Temperature Measurement Range :

• 0°C to 200°C

Field of View (FOV) :

• 45°

Transmittance Samples :

Number of Samples :

• 3

Window Diameter :

• 12 mm

Materials :

• K9 Glass
• Monocrystalline Silicon
• Calcium Fluoride

Emissivity Samples :

Number of Samples :

• 6

Diameter :

• 30 mm

Thickness :

• 15 mm

Materials Included :

• Aluminum Alloy Samples with Various Surface Finishes
• Brass Sample
• Stainless Steel Sample

Guide Rail :

Length :

• 100 cm

Scale Resolution :

• 1 mm

Sliding Holders :

Quantity :

• 3

Features :

• Position Indicators and Locking Mechanisms

Main Control Unit :

Display Type :

• Capacitive Touch Screen

Display Resolution :

• 800 × 480 Pixels

Effective Display Area :

• 108 × 64.8 mm

Temperature Control Method :

• PID Control

Control Range :

• Ambient Temperature to 100°C

Temperature Setting Increment :

• 1°C

Sensor Measurement Range :

• -55.0°C to 125.0°C

Temperature Resolution :

• 0.1°C

Radiation Power Display Range :

• 0–500.0 mW

Radiation Power Resolution :

• 0.1 mW

Thermal Imaging Temperature Range :

• 0–200.0°C

Thermal Imaging Resolution :

• 0.1°C

Emissivity Adjustment Range :

• 0.01–1.00

Emissivity Adjustment Step :

• 0.01

Electric Control Unit :

• Quantity: 1

Guide Rail :

• Quantity: 1

Sliding Holders :

• Quantity: 3

Blackbody Emitter :

• Quantity: 1

Sample Furnace with Cover :

• Quantity: 1

Infrared Thermal Imager :

• Quantity: 1

Transmittance Samples :

• Quantity: 3

Emissivity Samples :

• Quantity: 6

Touch Pen :

• Quantity: 1

Accessory Box :

• Quantity: 1

Multi-Core Connection Cables :

• Quantity: 5

Power Cord :

• Quantity: 1

Instruction Manual :

• Quantity: 1

• Intuitive Understanding of Thermal Radiation Principles
• Mastery of Thermal Radiation Measurement Techniques
• Analysis of Radiation and Emissivity Phenomena
• Infrared Thermography and Thermal Imaging Studies
• Comprehensive Experimental Platform
• Highly Valuable for Physics Education
• Detailed Instruction Manual
