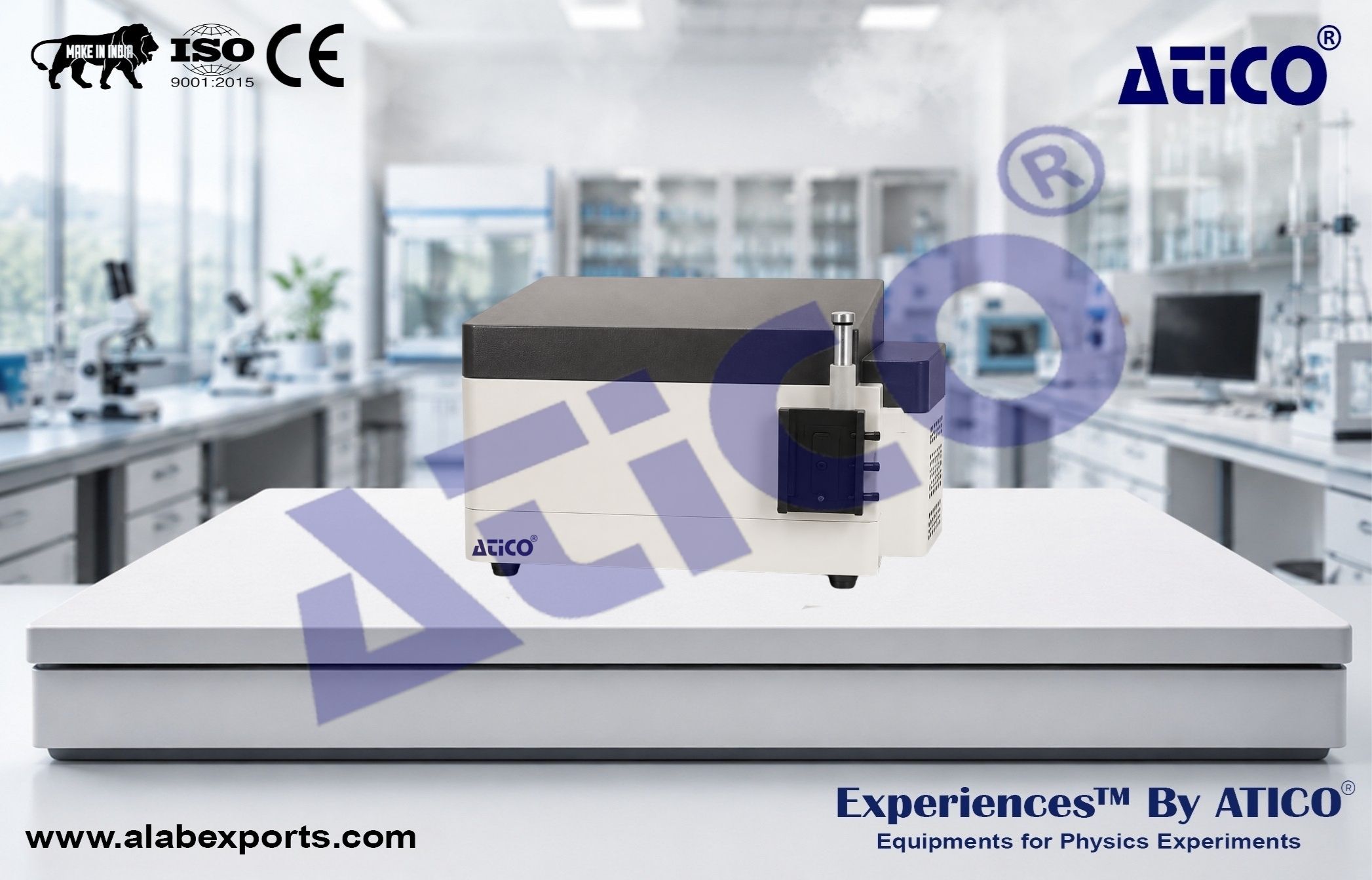

Experimental CCD Spectrometer for Spectral Physics Instruments

The Experimental CCD Spectrometer for Spectral Physics Instrument is a versatile instrument designed for precise spectral measurement and analysis. Utilizing a high-performance linear CCD detector, the system enables real-time acquisition of spectral data with advanced visualization capabilities, including three-dimensional spectral displays. The instrument is suitable for studying emission and absorption spectra from a wide variety of light sources and materials. It also serves as an effective platform for wavelength calibration and optical probe verification, making it valuable for laboratory teaching, scientific research, and spectroscopy training. The optical system employs a precision grating monochromator configuration in which incoming light passes through an entrance slit, is collimated, dispersed by a diffraction grating, and projected onto a linear CCD array. This arrangement provides accurate wavelength measurement, excellent spectral resolution, and reliable repeatability. Physics Lab Experiments from Atico Exports.

Experimental Applications:

1. Spectrum Measurement

• Measure and analyze spectral characteristics of various light sources and materials
• Study emission spectra and absorption spectra
• Investigate optical properties of different substances

2. Wavelength Calibration

• Calibrate optical systems and probes using known spectral reference lines
• Verify wavelength accuracy and measurement reliability

3. Spectral Data Acquisition and Analysis

• Collect spectral information through a computer interface
• Perform data processing, visualization, and analysis using dedicated software
• Generate spectral graphs and measurement reports

4. Spectroscopic Studies

• Investigate spectral distributions of light sources
• Identify characteristic wavelengths associated with different materials
• Perform qualitative and quantitative spectral analysis

Wavelength Range:

• 300 – 900 nm

Focal Length:

• 302.5 mm

Relative Aperture:

• D/F = 1/7

Slit Width:

• 0 – 2 mm Adjustable
• Reading Resolution: 0.01 mm

Wavelength Accuracy:

• ±0.4 nm

Wavelength Repeatability:

• ≤ 0.2 nm

Spectral Resolution:

• Better Than 0.2 nm

Stray Light:

• ≤ 10⁻³

CCD Detector:

• 2048 Cells Linear CCD Array

Integration Time:

• 1 – 88 Steps
• Approximately 25 ms per Step

Grating:

• 600 Lines/mm
• Blaze Wavelength: 550 nm

Filter Range:

• 320 – 500 nm
• 500 – 900 nm

Dimensions:

• 450 mm × 280 mm × 230 mm

Weight:

• 25 kg

Software Compatibility:

• Windows 10
• Windows 11

Optical Filters:

Filter 1:

• Wavelength Range: 320 – 500 nm

Filter 2:

• Wavelength Range: 500 – 900 nm

Parts List:

Experimental CCD Spectrometer:

• Quantity: 1

Optical Filters:

• Quantity: 2

USB Cable:

• Quantity: 1

Power Cord:

• Quantity: 1

Software Package:

• Quantity: 1

• Innovative Optical Design
• 3-D Spectral Display
• CCD-Based Detection System
• High Resolution Performance
• Real-Time Data Acquisition
• Suitable for Research and Educational Applications
